Cooling System Connector End Views: Notes

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

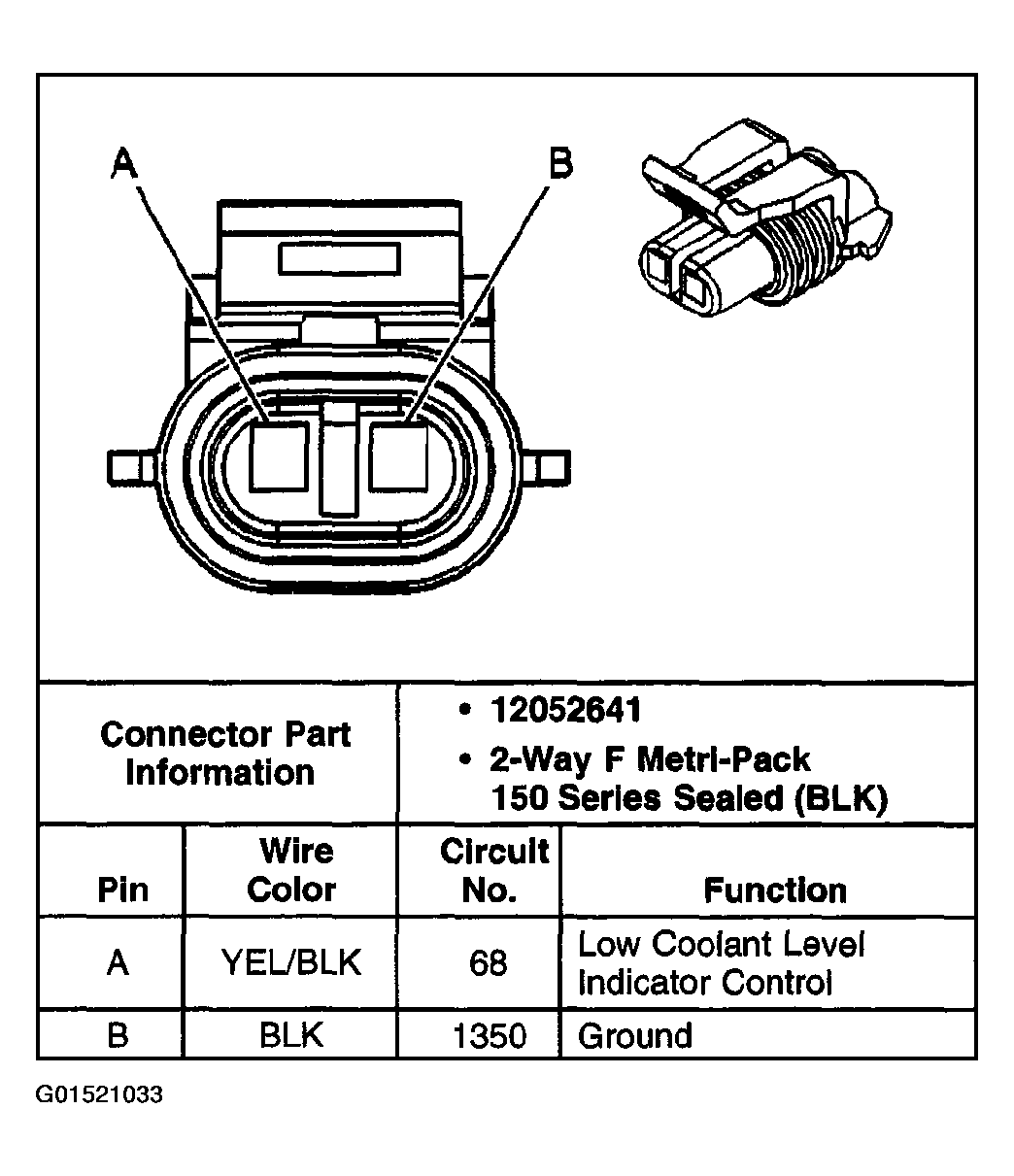

Fig 1: Coolant Level Switch
G01521033Courtesy of GENERAL MOTORS CORP.

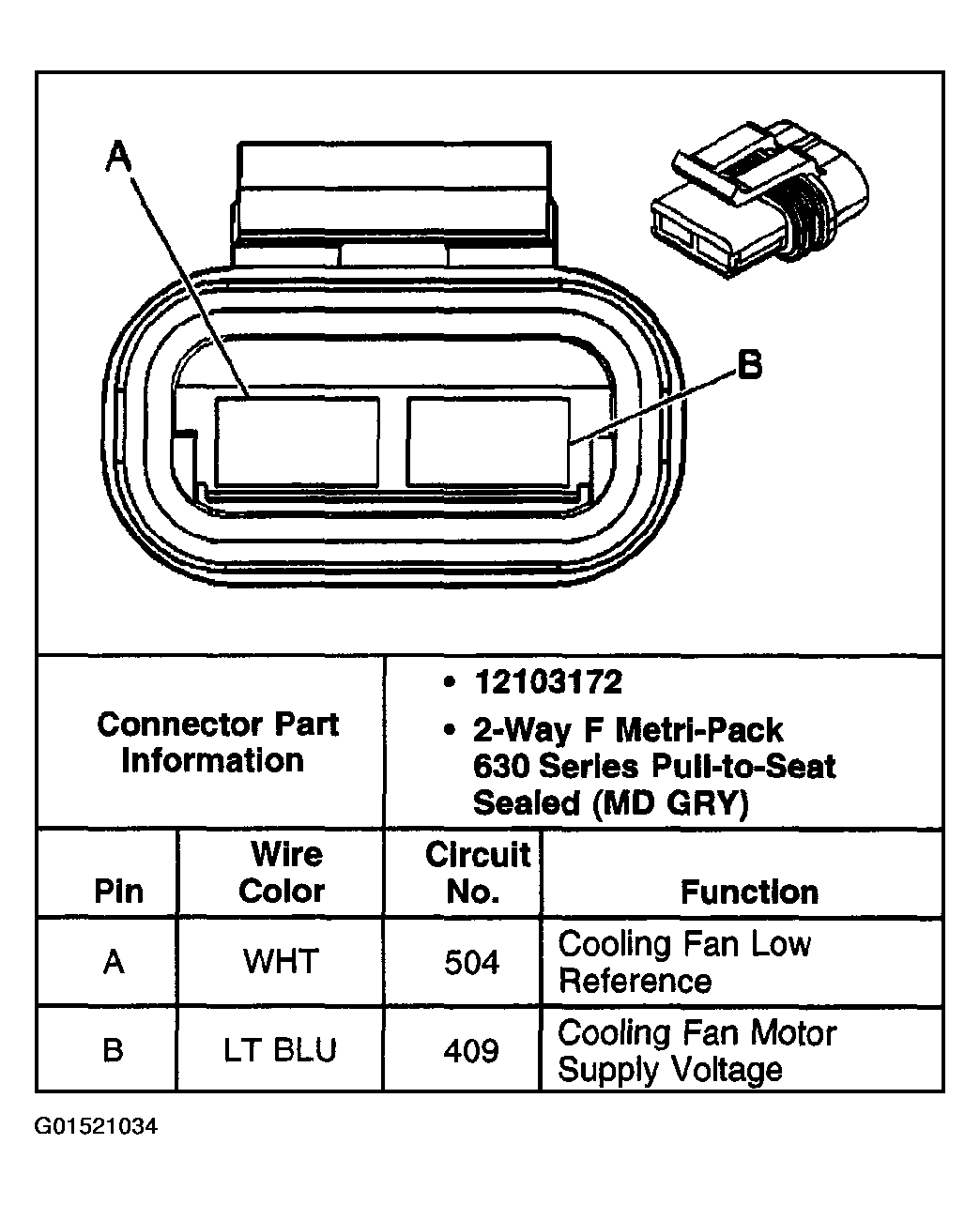

Fig 2: Cooling Fan - Left
G01521034Courtesy of GENERAL MOTORS CORP.
