Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Care should be taken to avoid scratching or cracking the spring coating when handling the front suspension coil spring. Damage can cause premature failure.
  1. Install the strut (5) into position and install the nuts (1) and one bolt (2) connecting the strut (5) to the body (3). Hand tighten the nuts and the bolt.
    Fig 1: Installing Nuts & One Bolt Connecting Strut To Body
    G01516854Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Align the steering knuckle with the strut flange scribe mark and install the bolts (6) and nuts (2).

    Tighten

  3. Tighten the nuts to 180 N.m (133 lb ft).

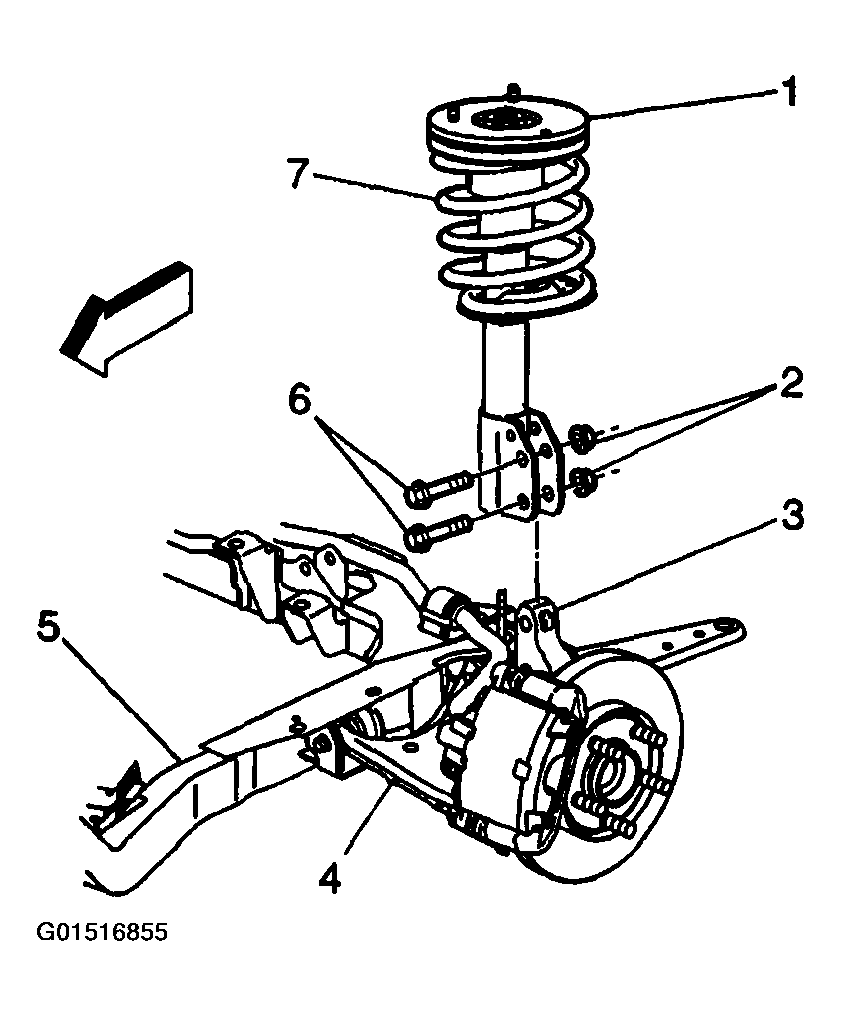

    Fig 2: Installing Bolts & Nuts To Steering Knuckle
    G01516855Courtesy of GENERAL MOTORS CORP.
  4. Tighten the nuts (1) and bolt (2) attaching the top of the strut (5) to the body (3).

    Tighten

    • Tighten the nuts to 25 N.m (18 lb ft).
    • Tighten the bolt to 25 N.m (18 lb ft).
  5. Install the brake line bracket.
  6. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  7. Inspect the front wheel alignment. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.

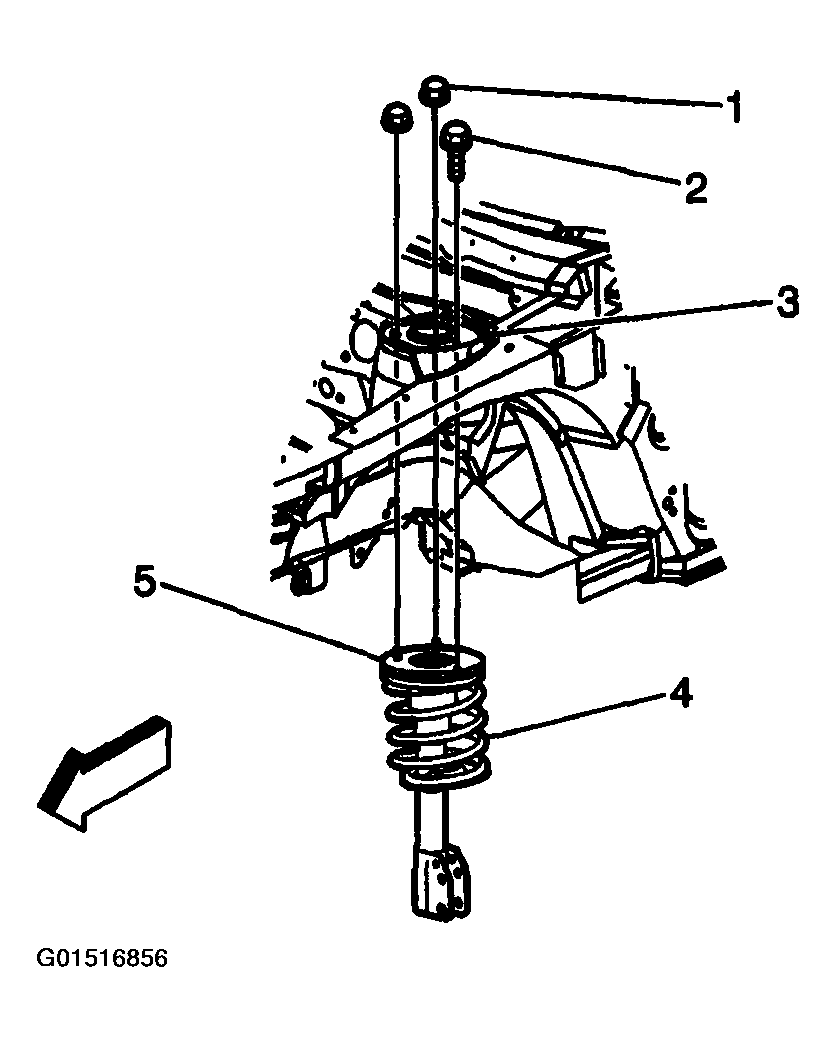

    Fig 3: Tightening Nuts & Bolt Attaching Top Of Strut To Body
    G01516856Courtesy of GENERAL MOTORS CORP.
