Section 445 (Wheel Alignment): Specifications

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

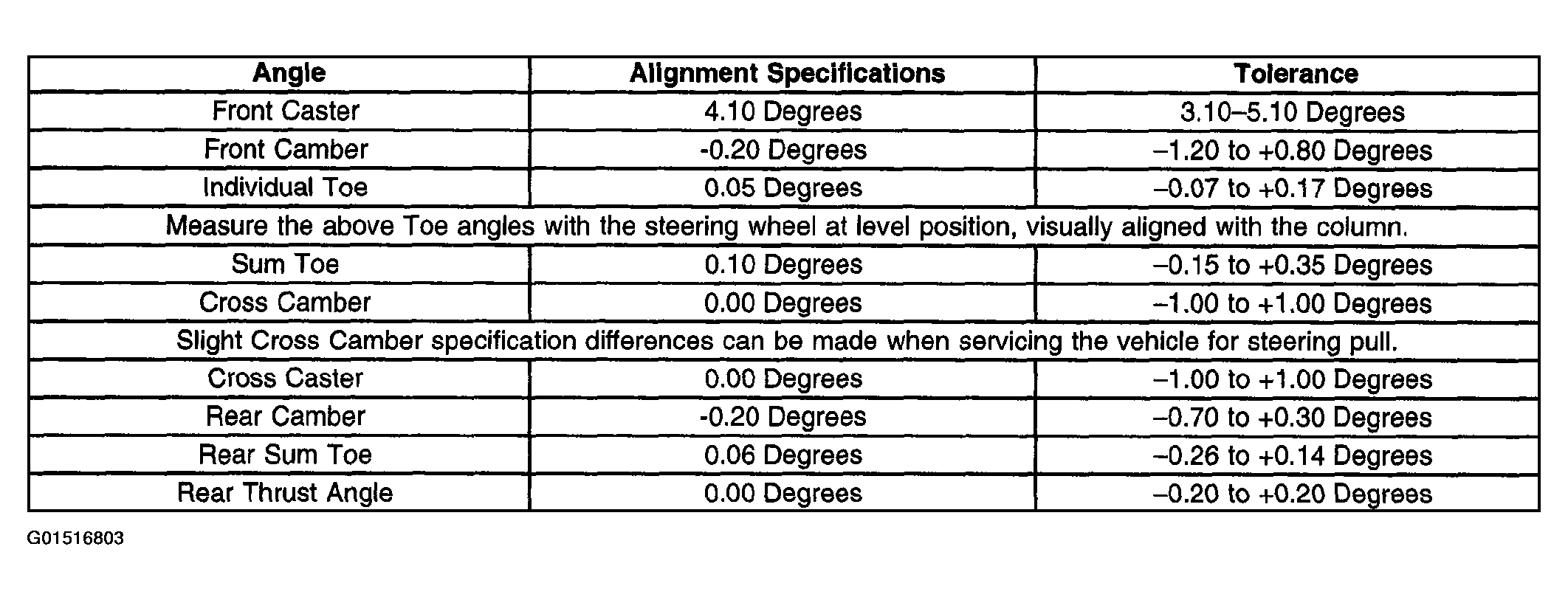

Fig 1: Wheel Alignment Specifications
G01516803Courtesy of GENERAL MOTORS CORP.
Fastener Tightening Specifications

Application Specification
Metric English
Strut to Knuckle Nuts 180 N.m 133 lb ft
Tie Rod Jam Nut 68 N.m 50 lb ft
