Entertainment Component Views

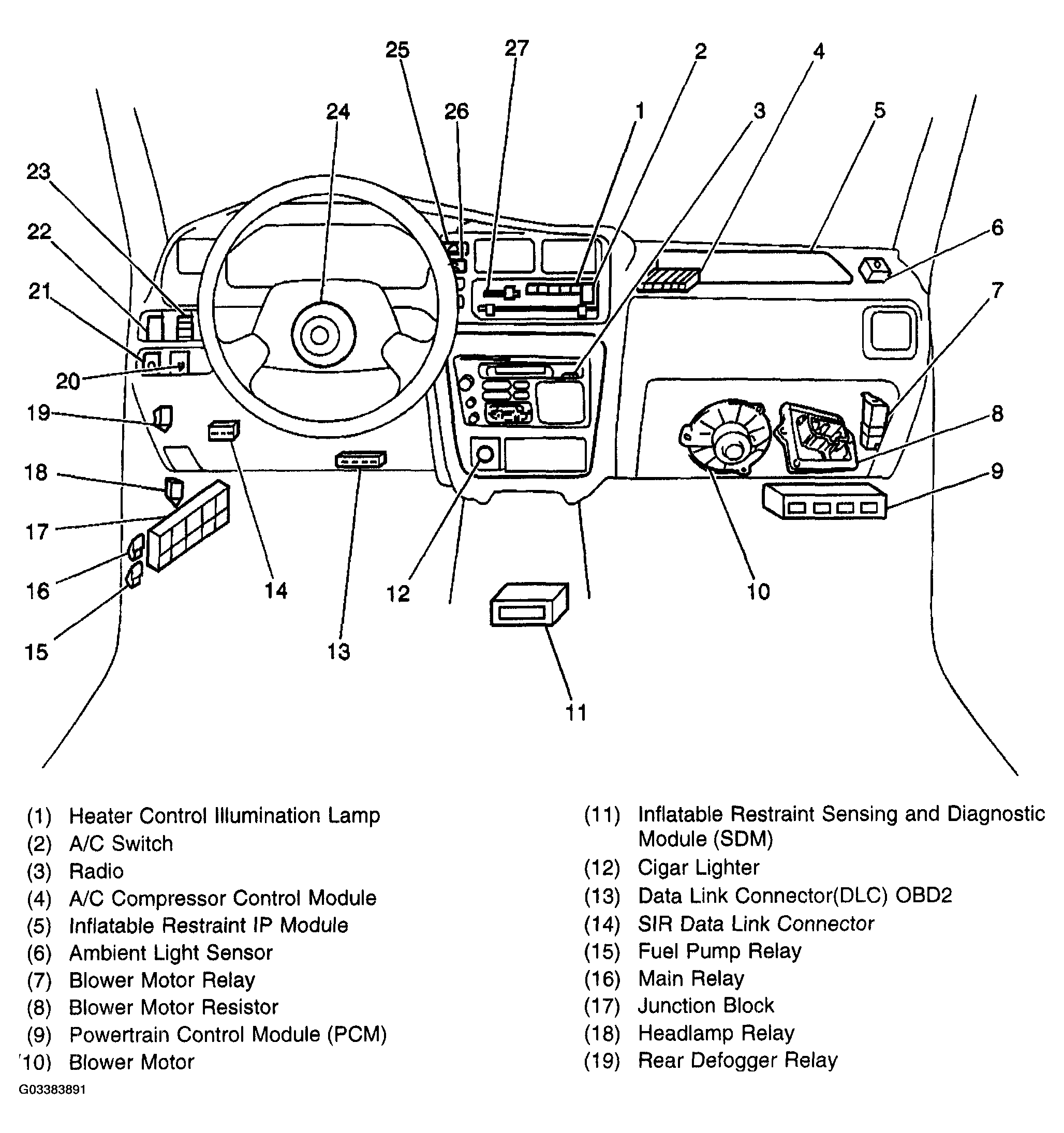

Fig 1: Identifying Component Of Instrument Panel
G03383891Courtesy of GENERAL MOTORS CORP.

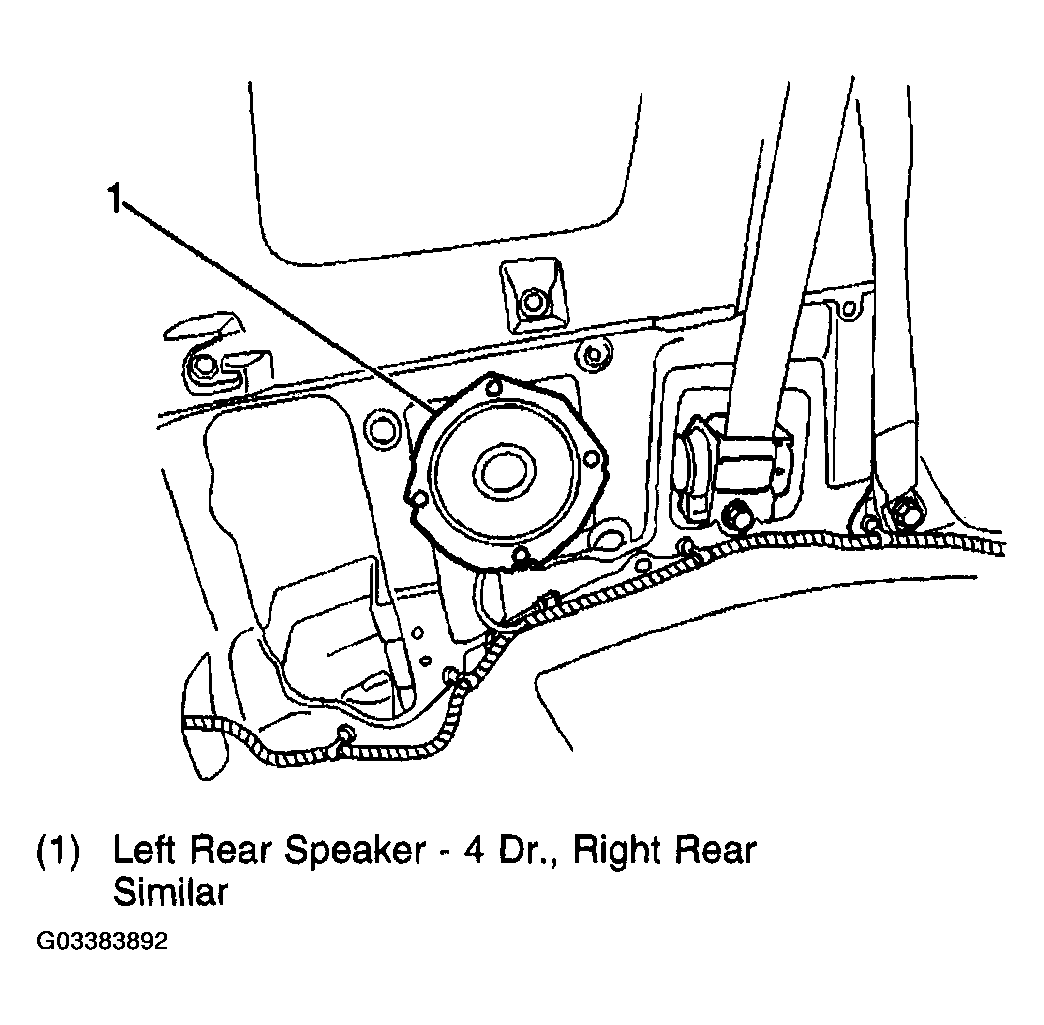

Fig 2: Identifying Left Rear Speaker
G03383892Courtesy of GENERAL MOTORS CORP.

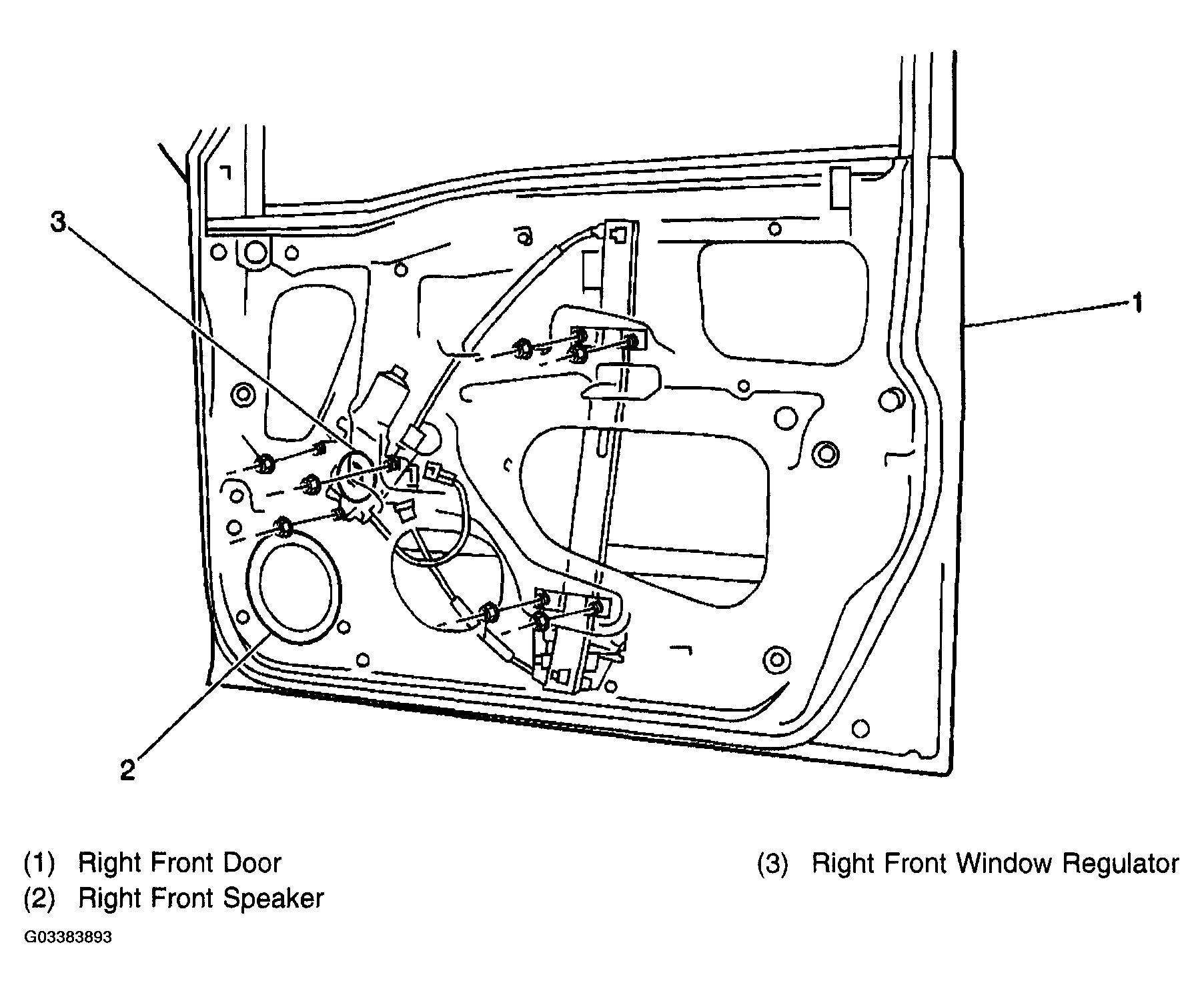

Fig 3: Identifying Component Of Right Front Door
G03383893Courtesy of GENERAL MOTORS CORP.

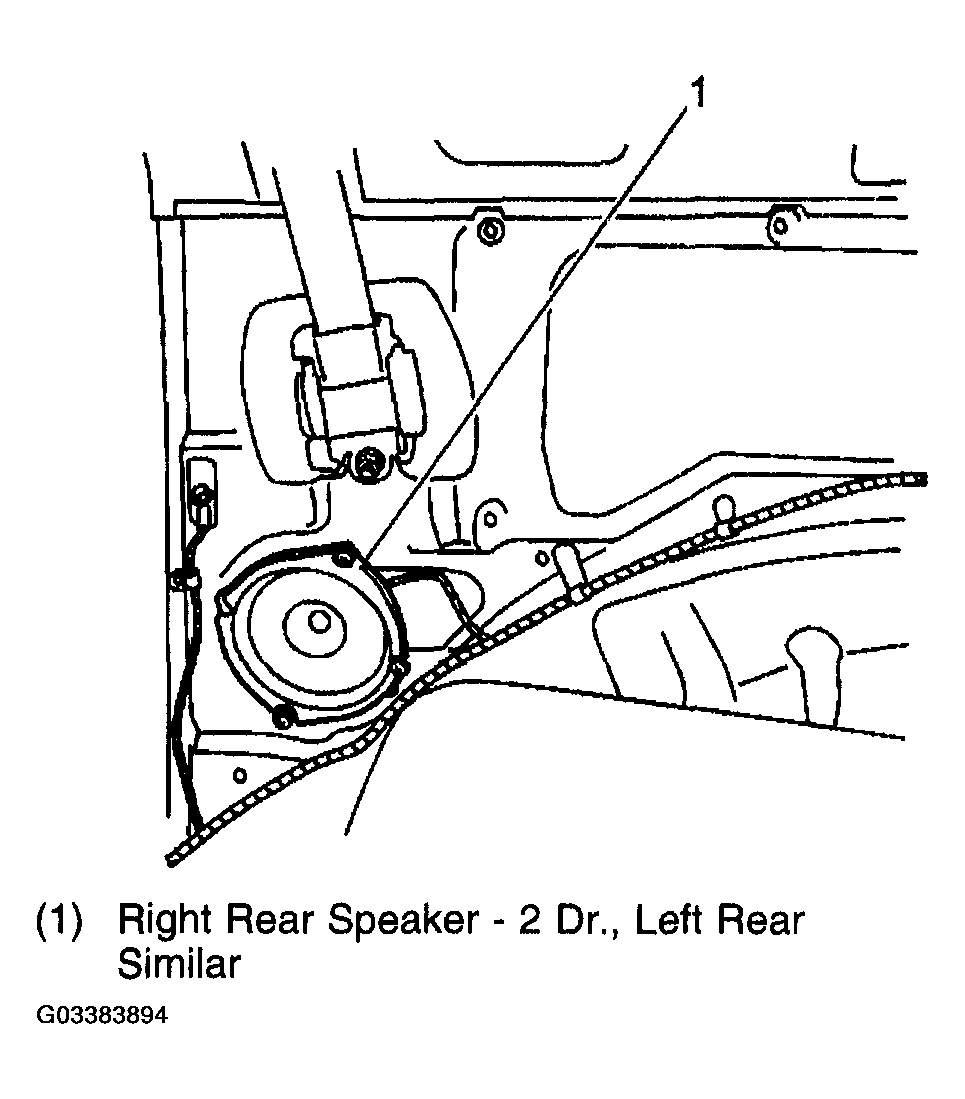

Fig 4: Identifying Right Rear Speaker
G03383894Courtesy of GENERAL MOTORS CORP.
