Installation Procedure

  1. Install the transfer case rear mount to the transfer case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the transfer case rear mount with the 2 bolts.

    Tighten

    1. Tighten the transfer case rear mount bolt to 50 N.m (37 lb ft).
  3. Install the transfer case crossmember (1) to the undercarriage.
  4. Secure the transfer case crossmember with the 10 bolts.

    Tighten

    1. Tighten the transfer case crossmember bolts to 50 N.m (37 lb ft).
  5. Install the transfer case skid plate to the transfer case crossmember.
  6. Secure the transfer case skid plate with 2 bolts.

    Tighten

    1. Tighten the transfer case skid plate bolts to 54 N.m (40 lb ft).
  7. Remove the hydraulic transmission jack.
  8. Lower the vehicle.

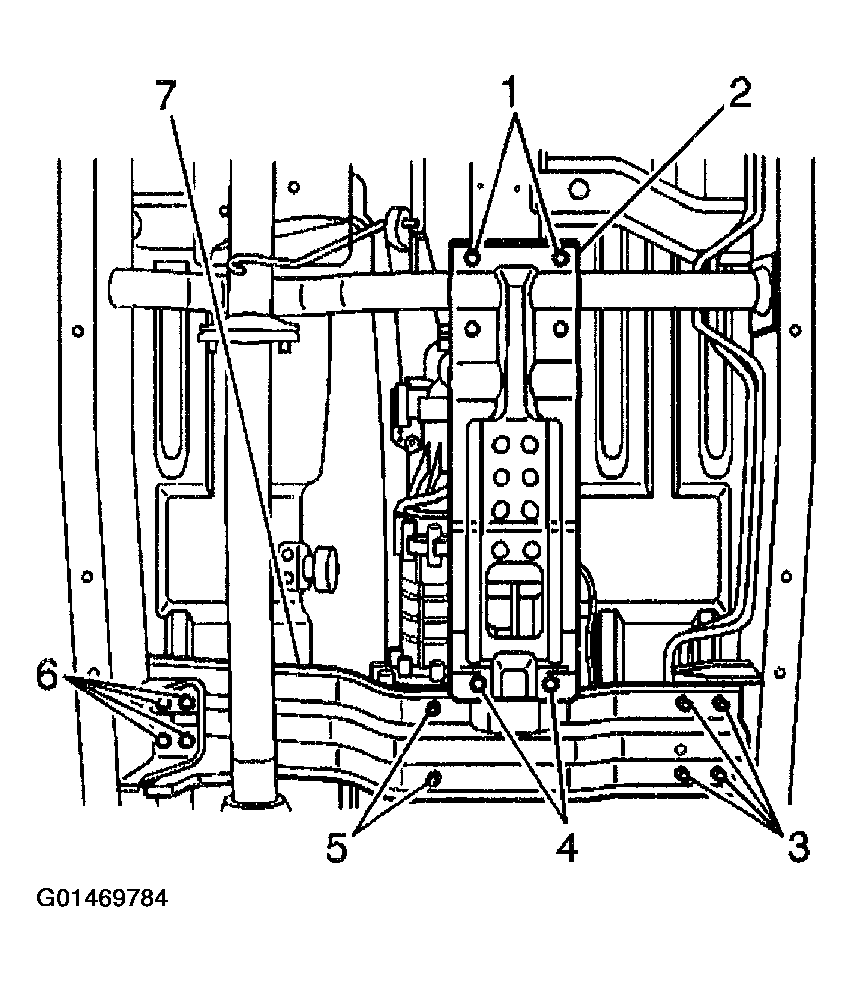

Fig 1: Transfer Case Crossmember Bolts
G01469784Courtesy of GENERAL MOTORS CORP.
