Removal Procedure

  1. Disconnect the electrical connector (1) from power steering pressure (PSP) switch.
  2. Remove the PSP switch (2) from the power steering pump (3).

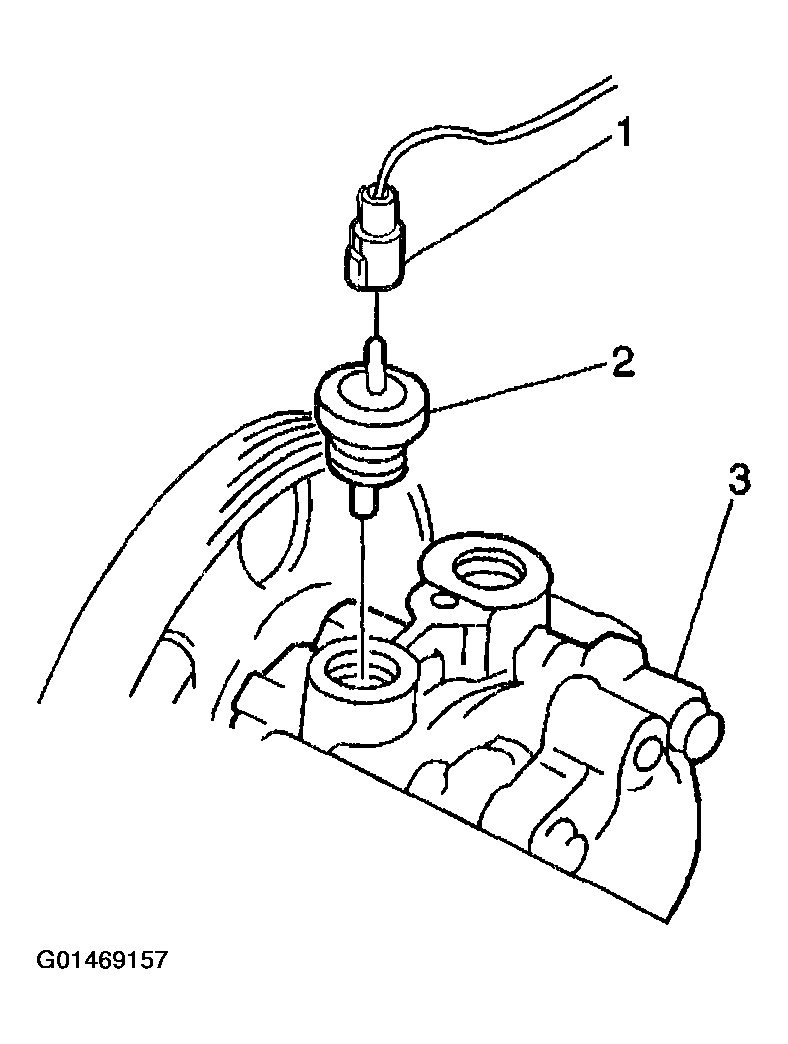

    Fig 1: Removing PSP Switch From Power Steering Pump
    G01469157Courtesy of GENERAL MOTORS CORP.
