Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the rear tether anchor bracket (2) to the vehicle. Secure the rear tether anchor bracket (2) with the bolts (1).

    Tighten

    Tighten the rear tether anchor bracket bolts to 26 N.m (19 lb ft).

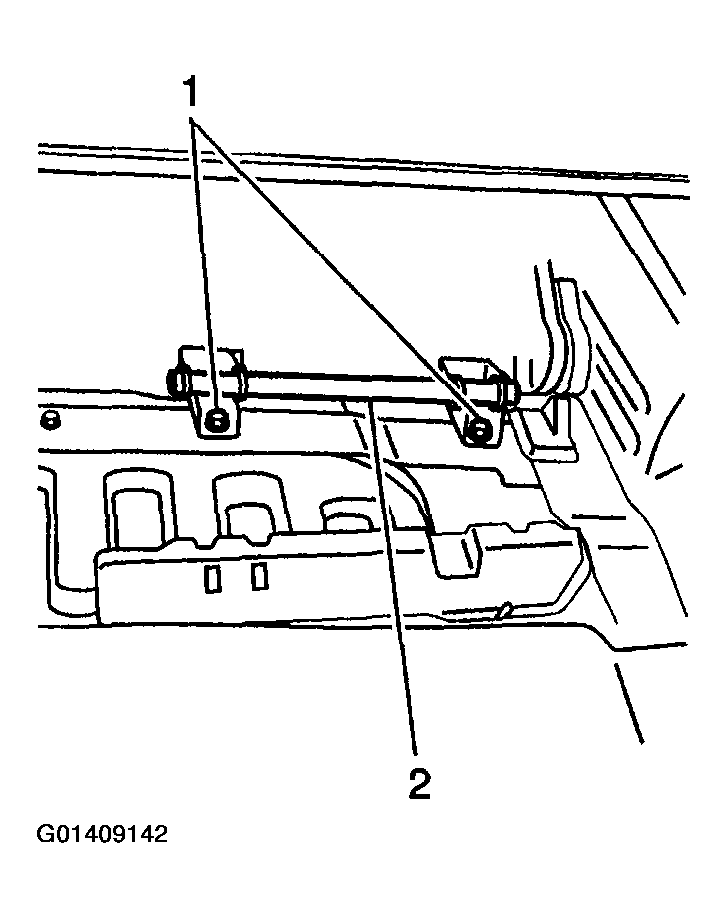

    Fig 1: Rear Tether Anchor Bolts
    G01409142Courtesy of GENERAL MOTORS CORP.
  2. Install the rear tether anchor bracket trim cover (1) to the rear tether anchor bracket.
  3. Pull carpet (2) back to its original position.
  4. Close rear door.

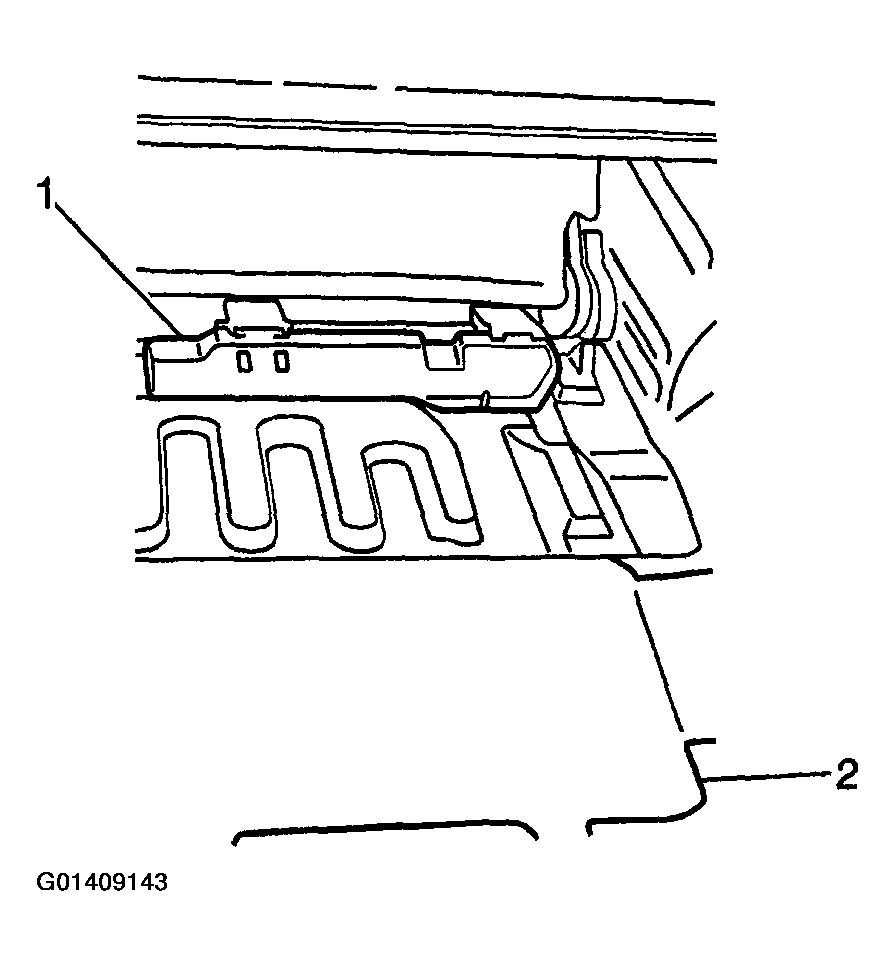

    Fig 2: Rear Tether Anchor Cover
    G01409143Courtesy of GENERAL MOTORS CORP.
