Seat Belt Switch Connector End View
Seat Belt Switch Connector End View

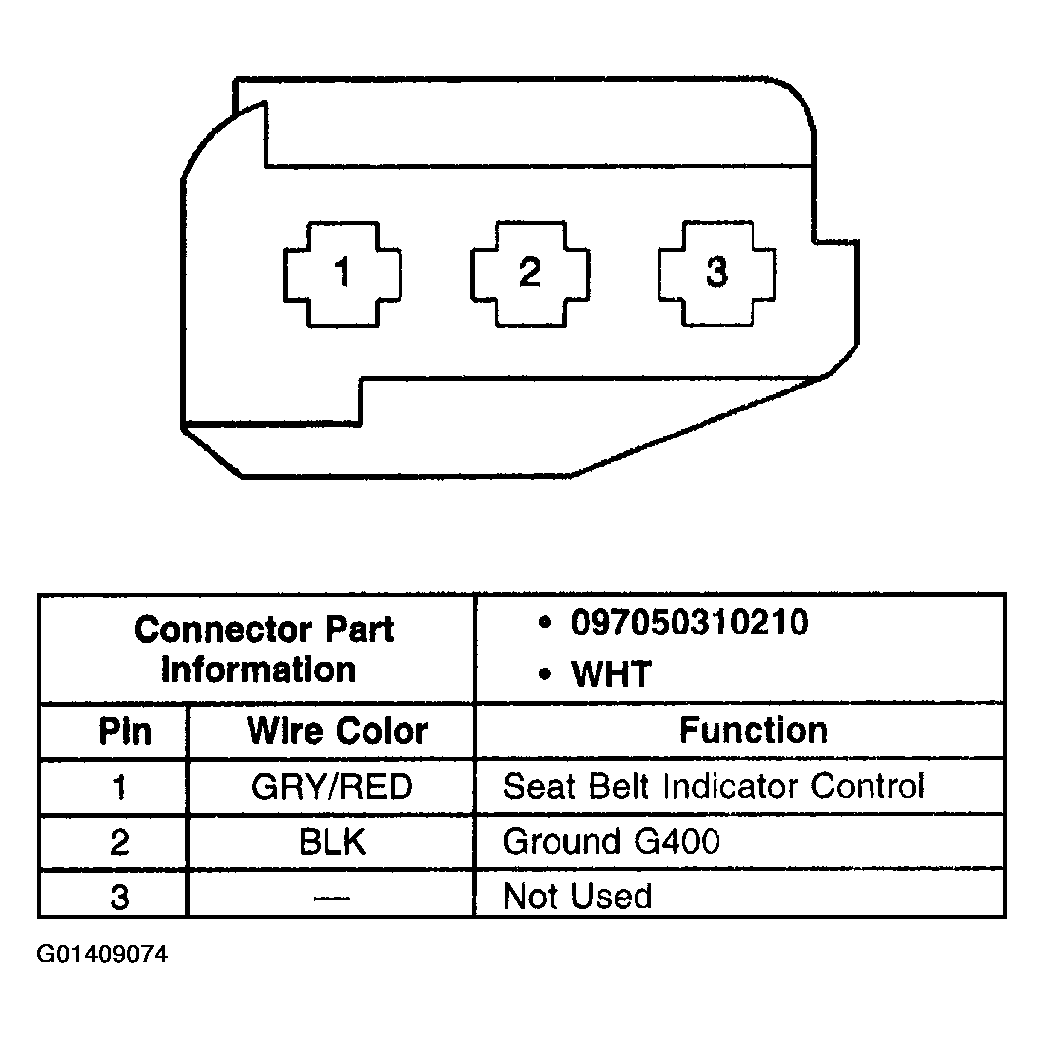

Fig 1: Seat Belt Switch
Courtesy of GENERAL MOTORS CORP.

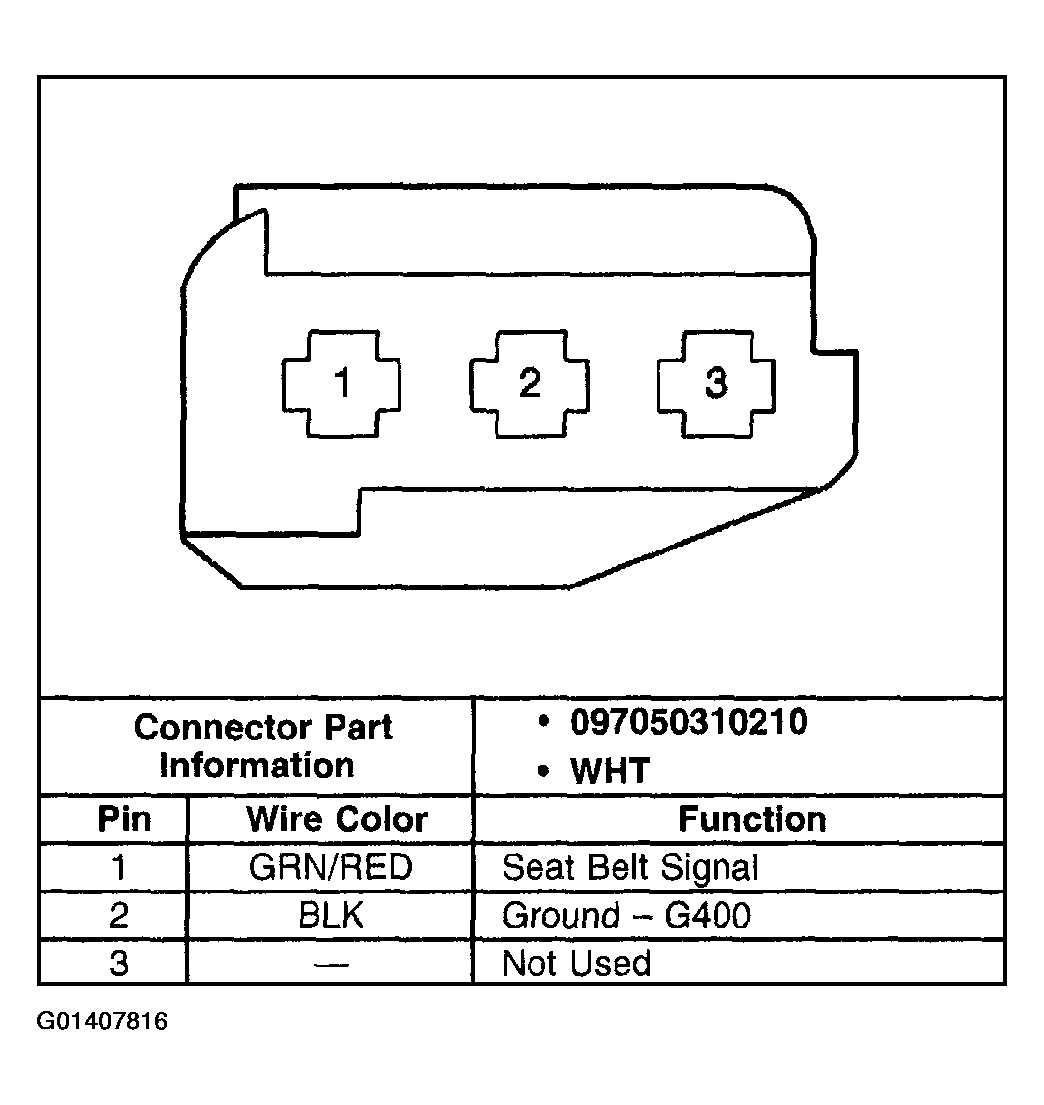

Fig 1: Seat Belt Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
