Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame (5) to the seat back recliner (7).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the upper seat back recliner bolts (6).

    Tighten

    Tighten the bolts to 18 N.m (13 lb ft).

  3. Install the seat back pad (2) to the seat back frame (5).
  4. Install the seat back cushion cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .

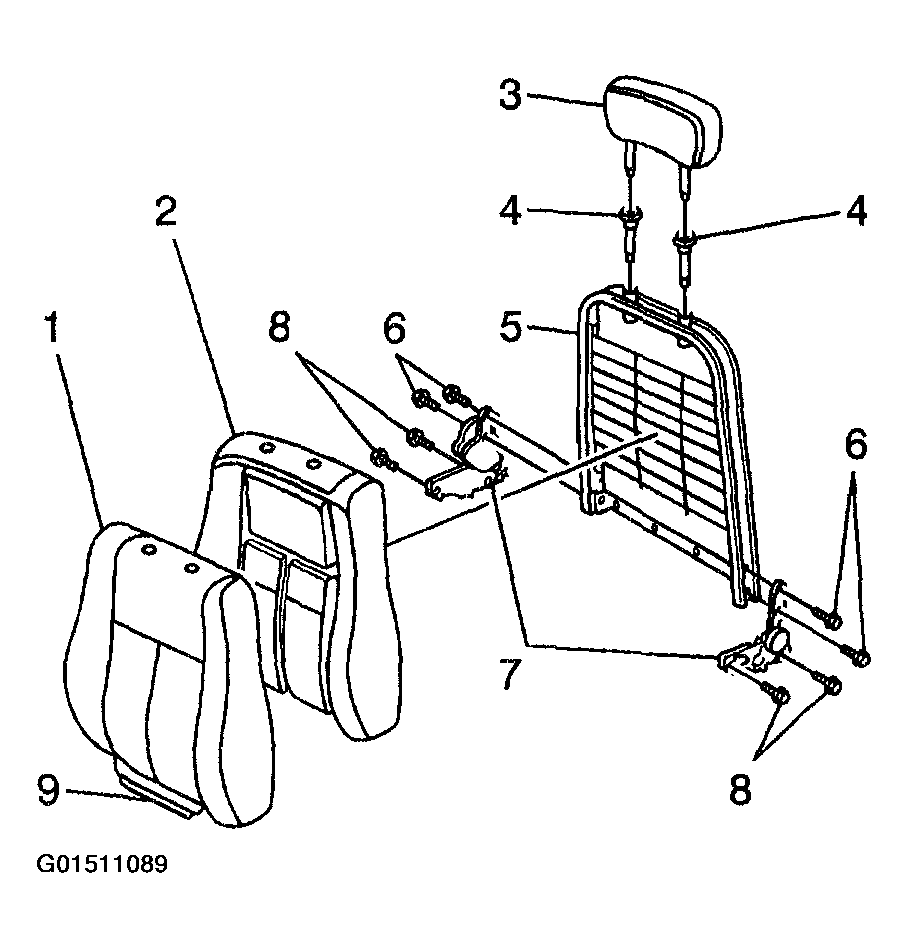

    Fig 1: Installing Seat Back Frame To Seat Back Recliner
    G01511089Courtesy of GENERAL MOTORS CORP.
