Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel Insert. Refer to TRIM PANEL INSERT REPLACEMENT - FRONT DOOR  .
  2. Remove the remote control from the outside rearview mirror remote control bezel (manual only). Refer to MIRROR REPLACEMENT - REMOTE  .
  3. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (OLDSMOBILE)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  .
  4. Disconnect the electrical connector, if power.
  5. Remove the front door inner panel mirror insulator (3).
  6. Remove the outside rearview mirror nuts (2).
  7. Remove the outside rearview mirror (1).

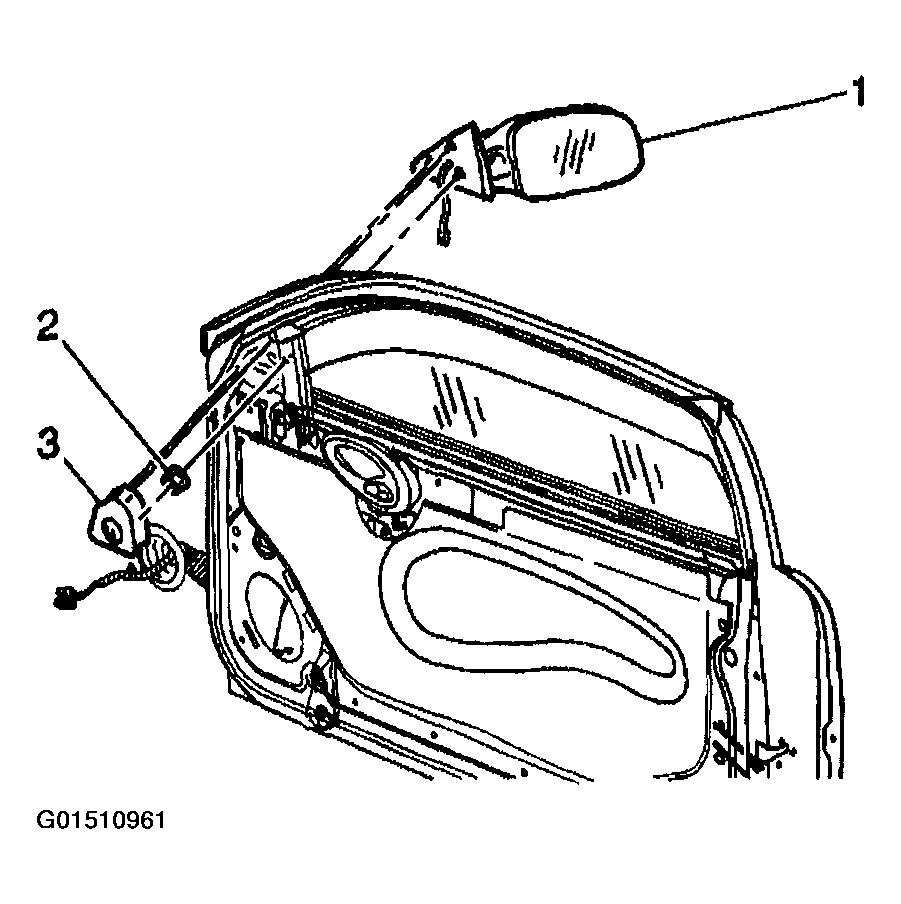

    Fig 1: Removing Outside Rearview Mirror
    G01510961Courtesy of GENERAL MOTORS CORP.
