Front Toe Adjustment

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the steering wheel is set in a straight ahead position.
  2. Loosen the tie rod jam nut (5).
  3. Adjust the toe to specification by turning the adjuster (6). Refer to Figure.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the tie rod jam nut (5).

    Tighten

    Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).

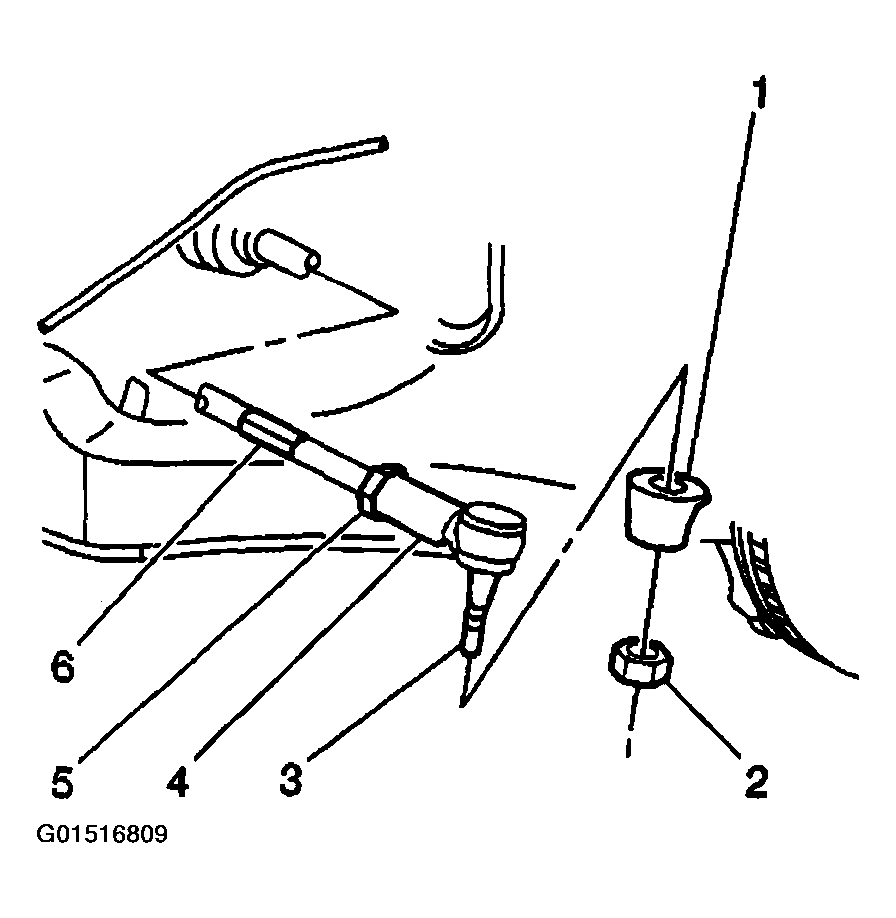

    Fig 1: Adjusting Front Toe
    G01516809Courtesy of GENERAL MOTORS CORP.
