Accelerator Controls Pedal: Installation

NOTE: Be sure to install the spring while sliding the accelerator pedal into the mounting bracket.

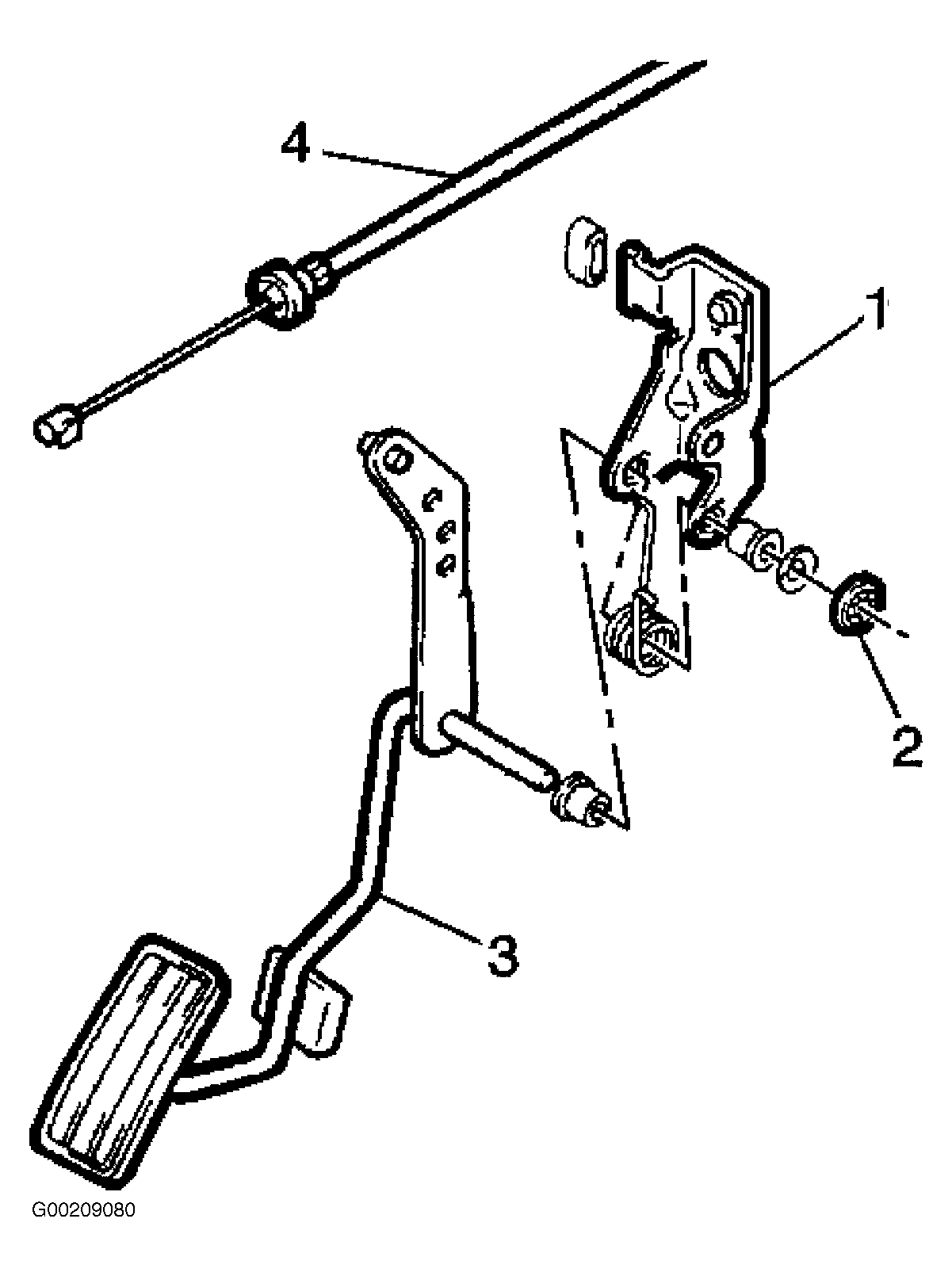

Install the accelerator pedal (3) to the mounting bracket (1). See Fig 1. Secure the accelerator pedal with a new accelerator pedal push nut (2). Connect the accelerator control cable (4) to the accelerator pedal. Inspect the accelerator pedal free play and the accelerator control cable end play. Adjust as necessary.

Fig 1: Removing/Installing Accelerator Control Pedal (2.0L)

Courtesy of GENERAL MOTORS CORP.

NOTE: Be sure to install the spring while sliding the accelerator pedal into the mounting bracket.

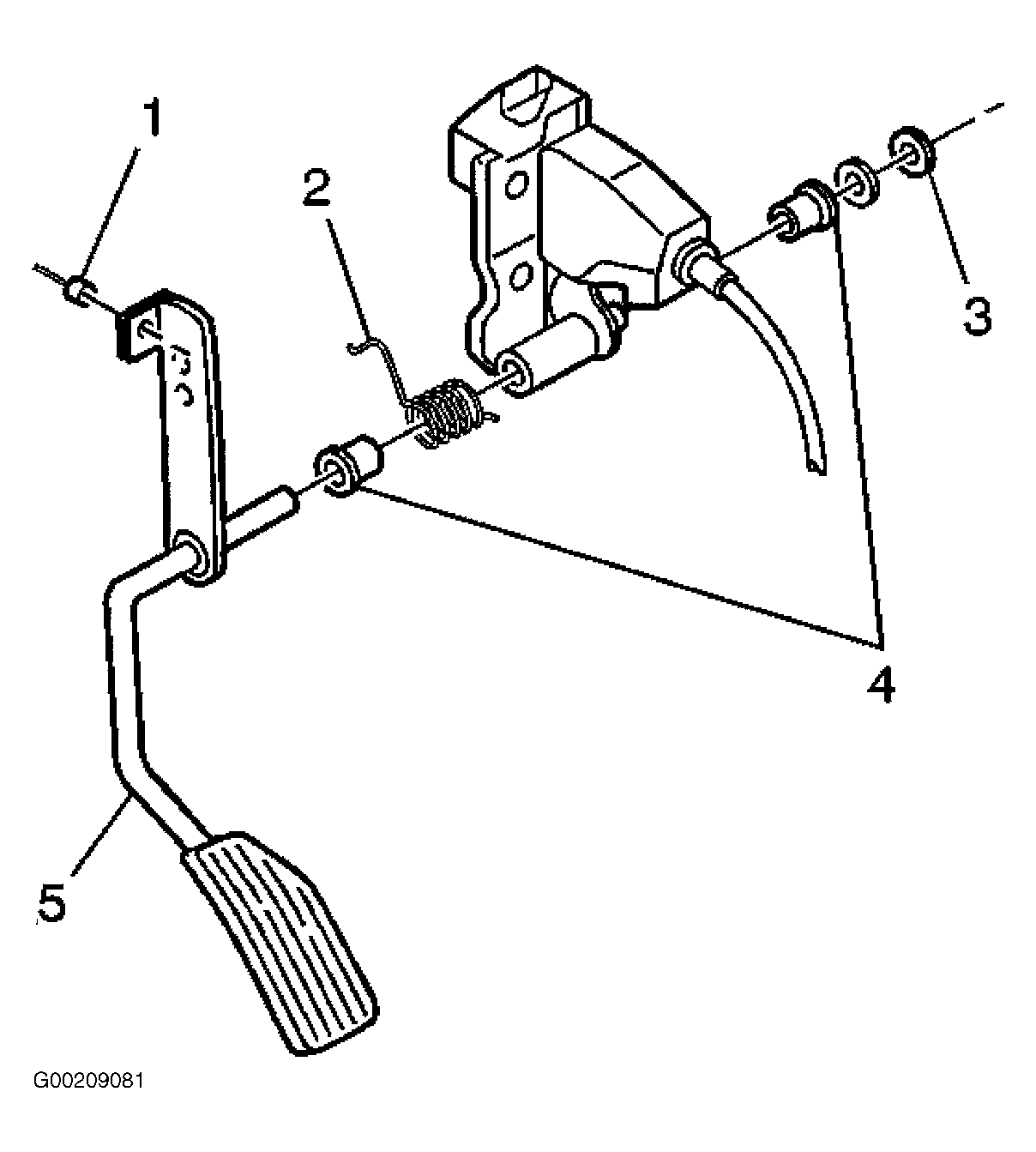

Install the accelerator pedal (5), spring (2) and bushings (4) to the mounting bracket. See Fig 1. Secure the accelerator pedal with a new accelerator pedal push nut (3). Connect the accelerator control cable (1) to the accelerator pedal (5).
Inspect the accelerator pedal free play and the accelerator control cable end play. Adjust as necessary. See THROTTLE CABLE ADJUSTMENT under IDLE SPEED & MIXTURE in ON-VEHICLE ADJUSTMENTS - TRUCKS - TRACKER.

Fig 1: Removing/Installing Accelerator Control Pedal (2.5L)

Courtesy of GENERAL MOTORS CORP.
