Fuel Tank Pressure Control Valve: Installation

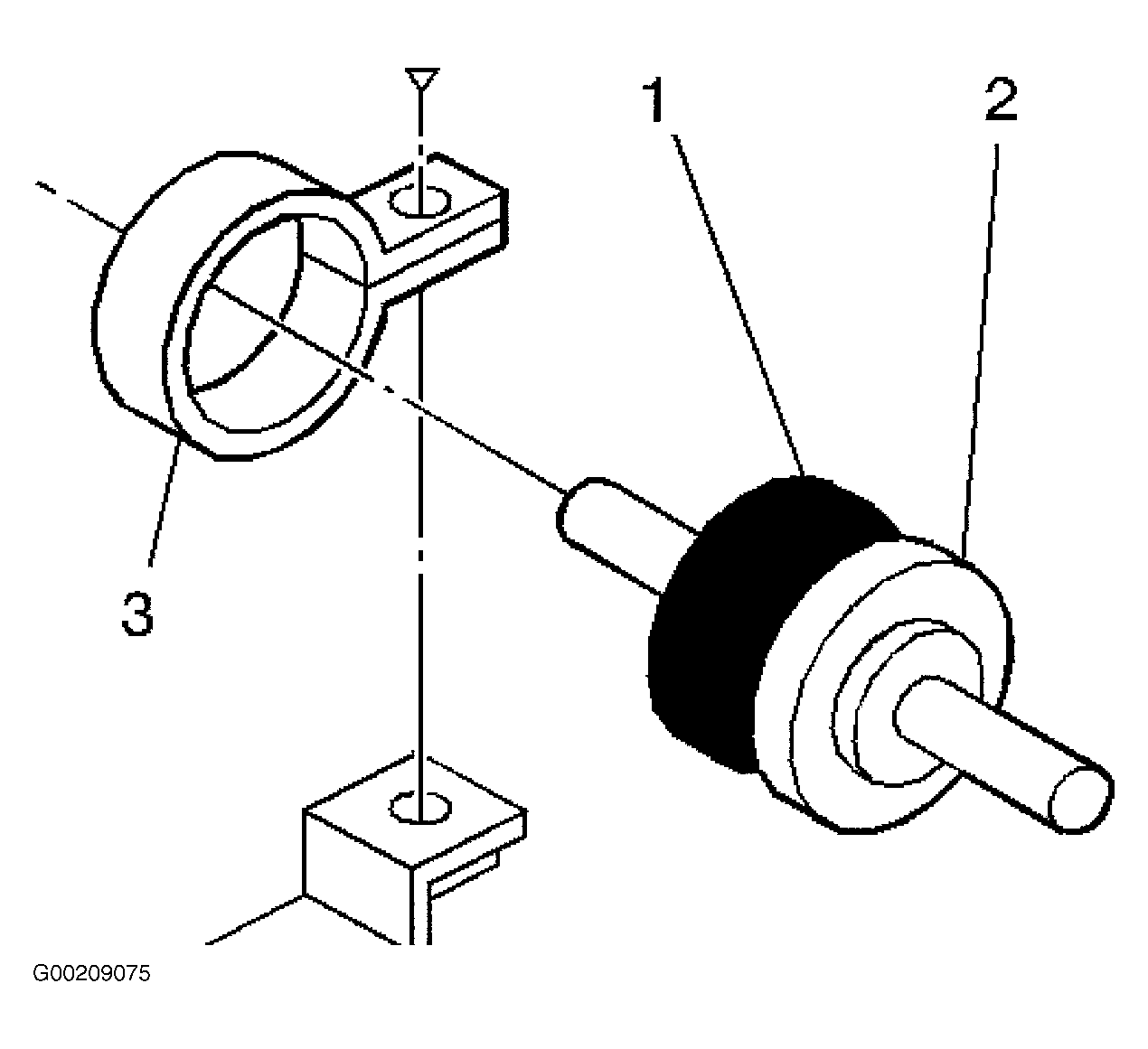

  1. Install the pressure control valve into the sleeve (3). See Figure. Install the pressure control valve to the fuel tank and secure the valve with the fastener. See TORQUE SPECIFICATIONS .
  2. Connect the vapor hose from the EVAP canister to the Orange or Green side (2) of the pressure control valve. Connect the vapor hose from the fuel tank to the Black side (1) of the pressure control valve. Install the fuel tank. See FUEL TANK .
