Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE in General Information.
  2. Remove the two nuts from the catalytic converter assembly (1) and separate from the resonator/muffler/tail pipe assembly (2).

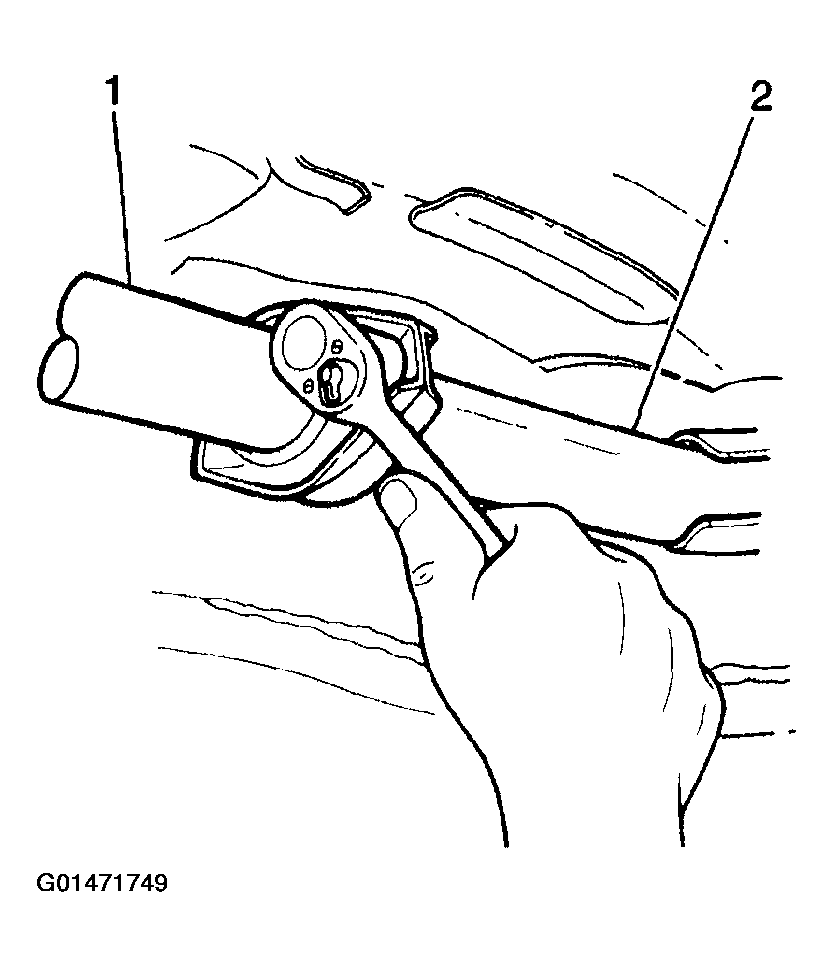

    Fig 1: Removing Two Nuts From Catalytic Converter Assembly
    G01471749Courtesy of GENERAL MOTORS CORP.
  3. Remove the hangers supporting the resonator/muffler/tail pipe assembly (7).
  4. Remove the resonator/muffler/tail pipe assembly from the vehicle.
  5. Clean the gasket and the seal mating surfaces.

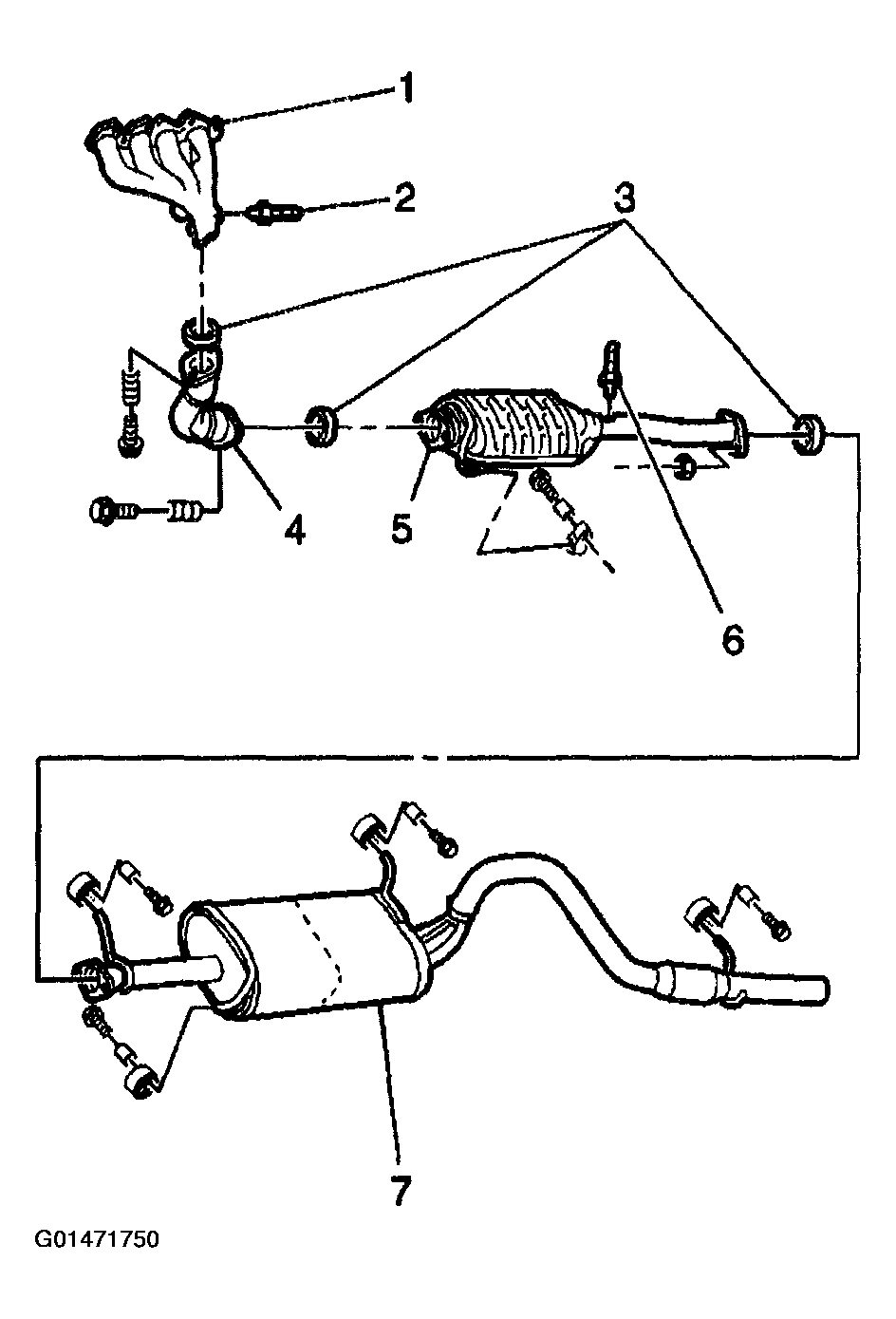

    Fig 2: Removing Hangers Supporting Resonator/Muffler/Tail Pipe Assembly
    G01471750Courtesy of GENERAL MOTORS CORP.
