Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the 4 fan nuts (1).

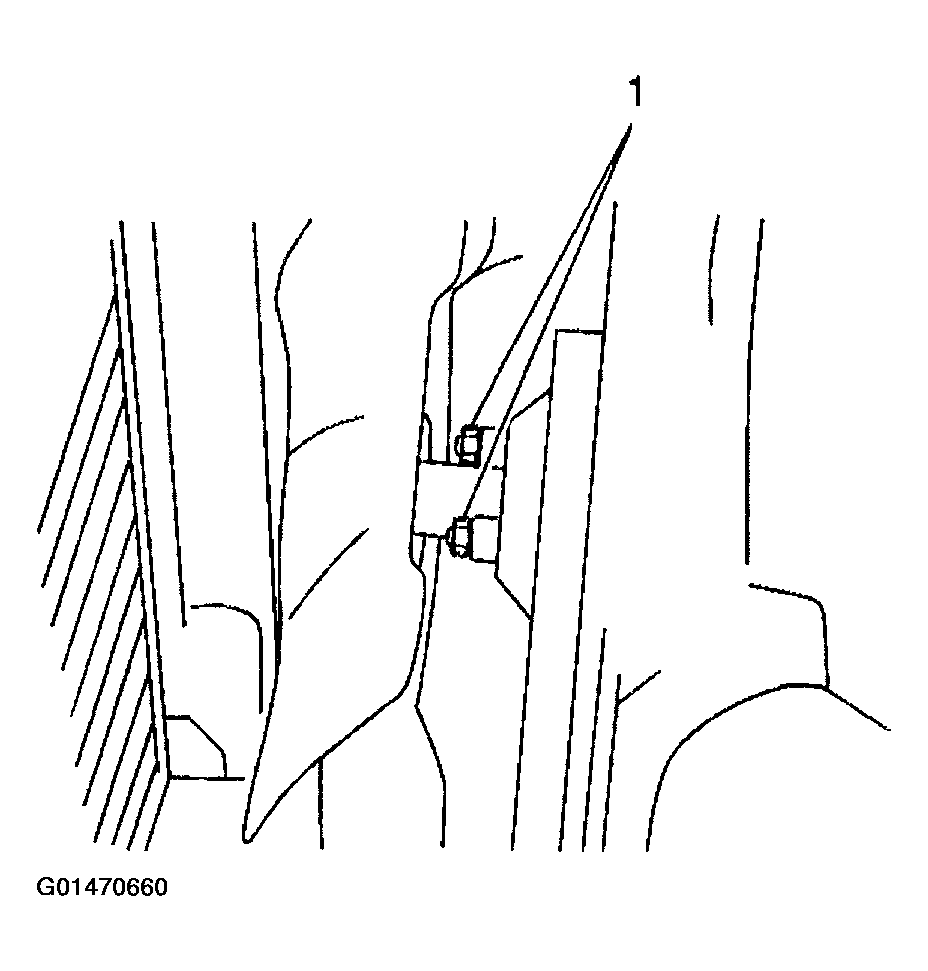

    Fig 1: Fan Nuts
    G01470660Courtesy of GENERAL MOTORS CORP.
  3. Remove the 4 radiator shroud clips.
  4. Detach the power steering reservoir and reposition it aside.
    IMPORTANT: Do not damage the radiator when removing the fan.
  5. Lean the shroud toward the engine.
  6. Detach the fan from the pulley hub and remove the fan/clutch assembly.

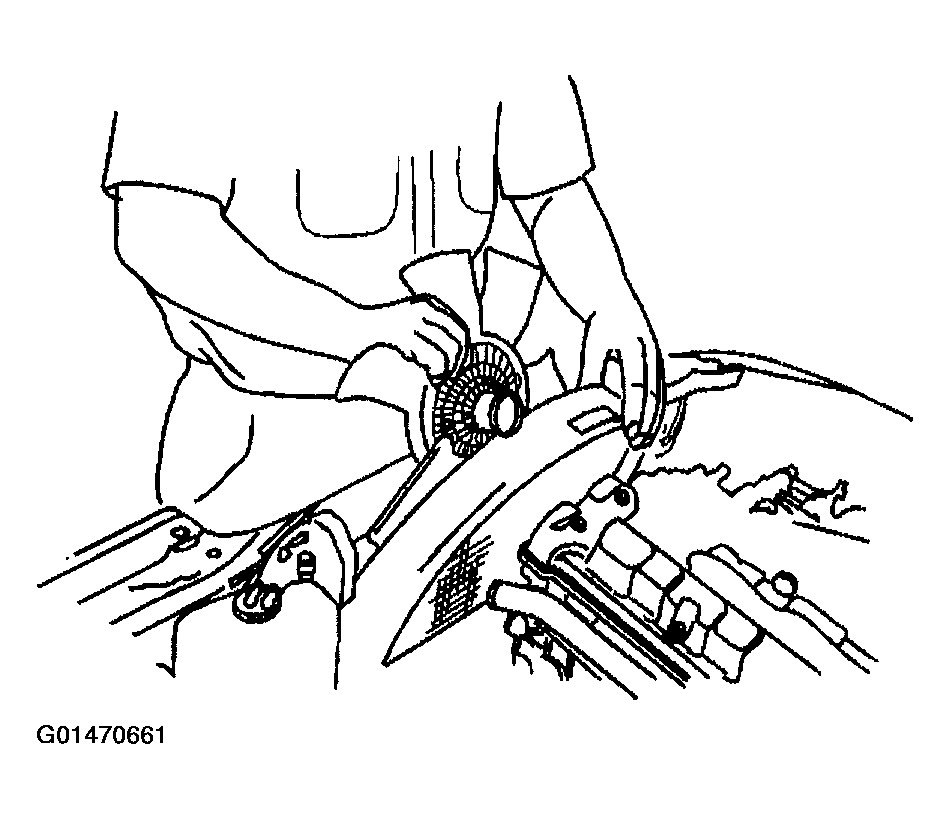

    Fig 2: Fan/Clutch Assembly
    G01470661Courtesy of GENERAL MOTORS CORP.
