Installation Procedure

  1. Install the fan/clutch assembly to the vehicle.
  2. Install the shroud and secure with the 4 clips.
  3. Reposition and attach the power steering reservoir to the power steering reservoir bracket.

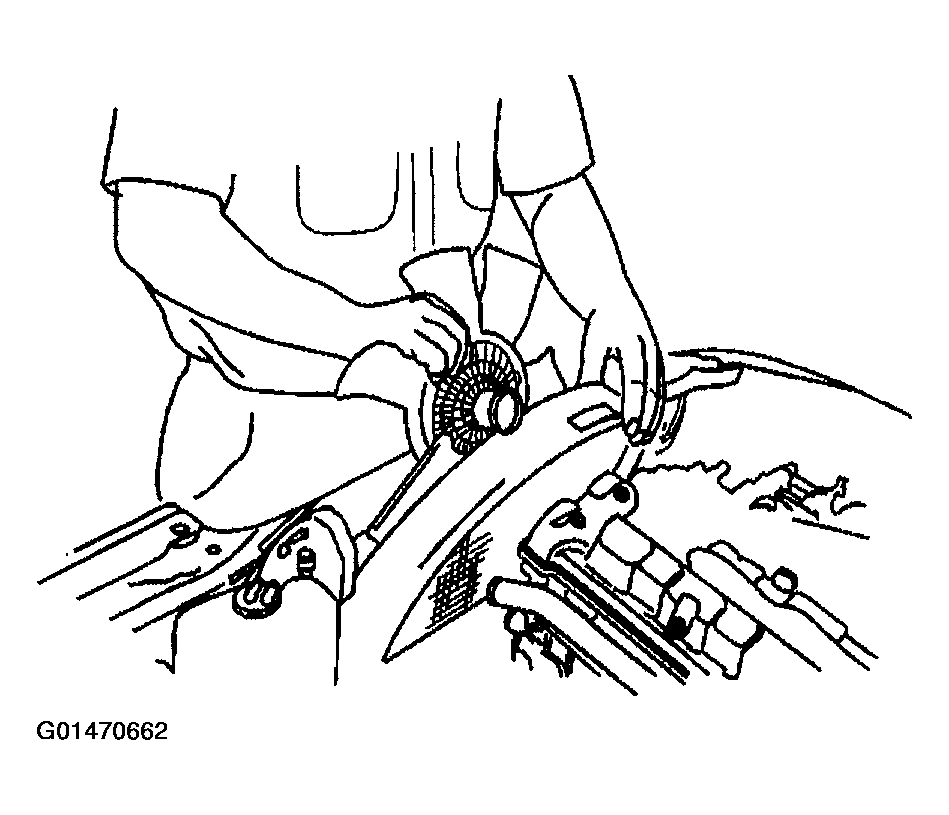

    Fig 1: Installing Fan/Clutch Assembly To Vehicle
    G01470662Courtesy of GENERAL MOTORS CORP.
  4. Install the fan/clutch assembly to the pulley hub.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the 4 fan nuts (1). Use a second wrench to hold the fan shaft.

    Tighten

    1. Tighten the fan nuts to 11 N.m (97 lb in).
  6. Connect the negative battery cable.

    Tighten

    1. Tighten the battery cable bolt to 15 N.m (11 lb ft).

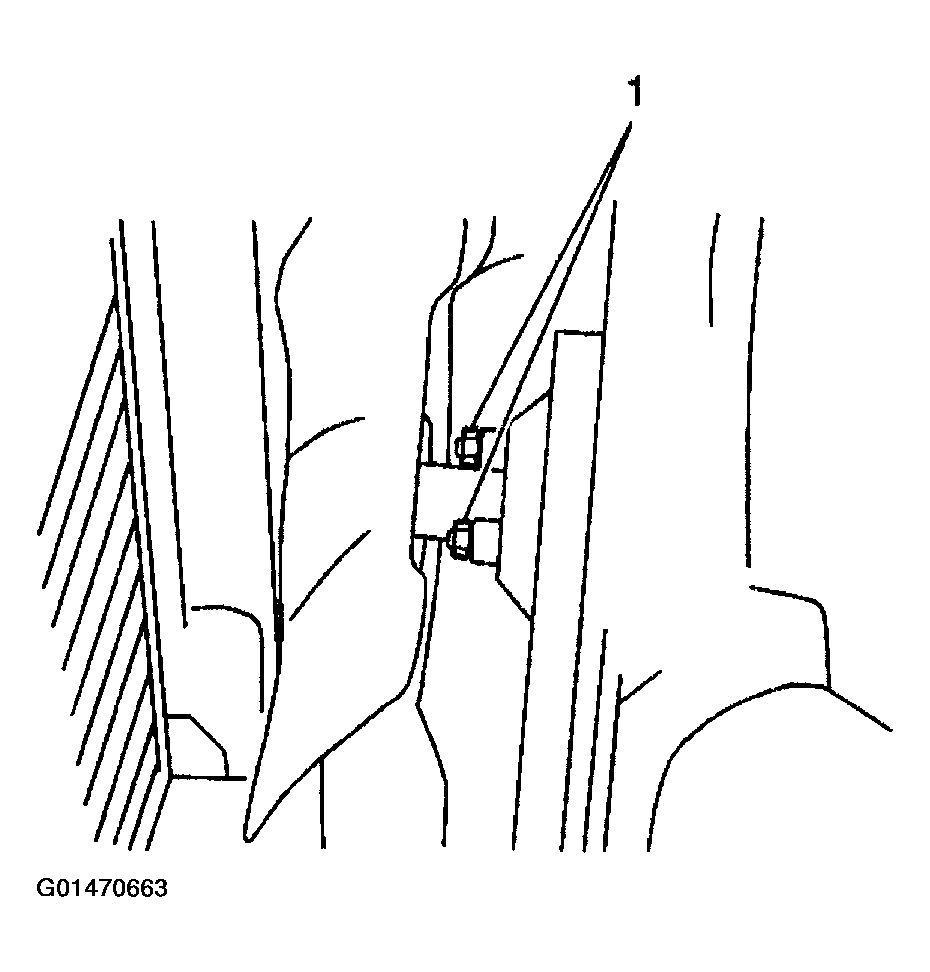

    Fig 2: Fan Nuts
    G01470663Courtesy of GENERAL MOTORS CORP.
