Instrument Cluster Connector End View C2

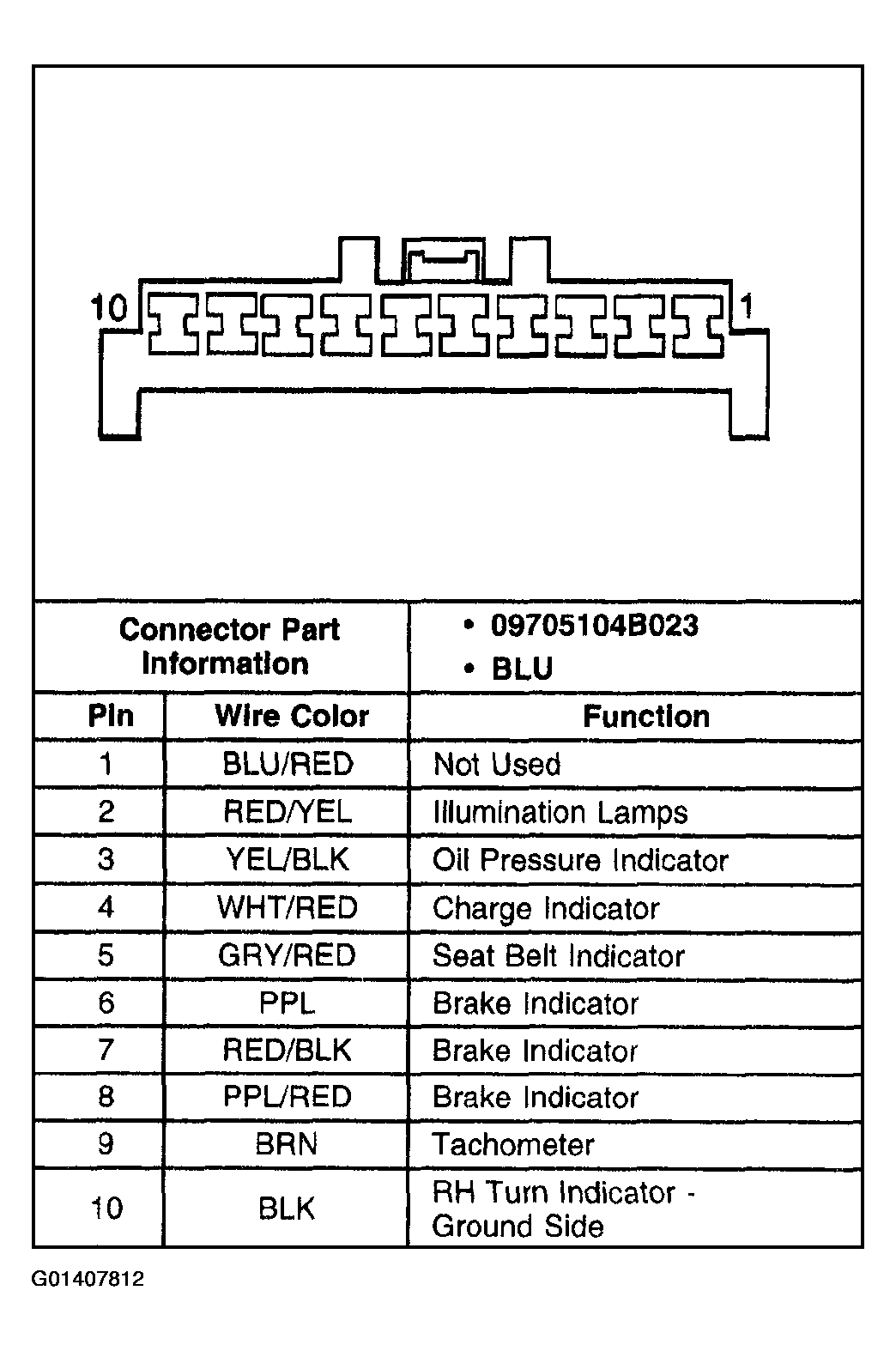

Fig 1: Instrument Cluster C2

G01407812

Courtesy of GENERAL MOTORS CORP.
