Home >> Chevrolet >> 2003 >> Tracker 2D Utility, RWD, Automatic >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Front Wiper Motor Connector End View

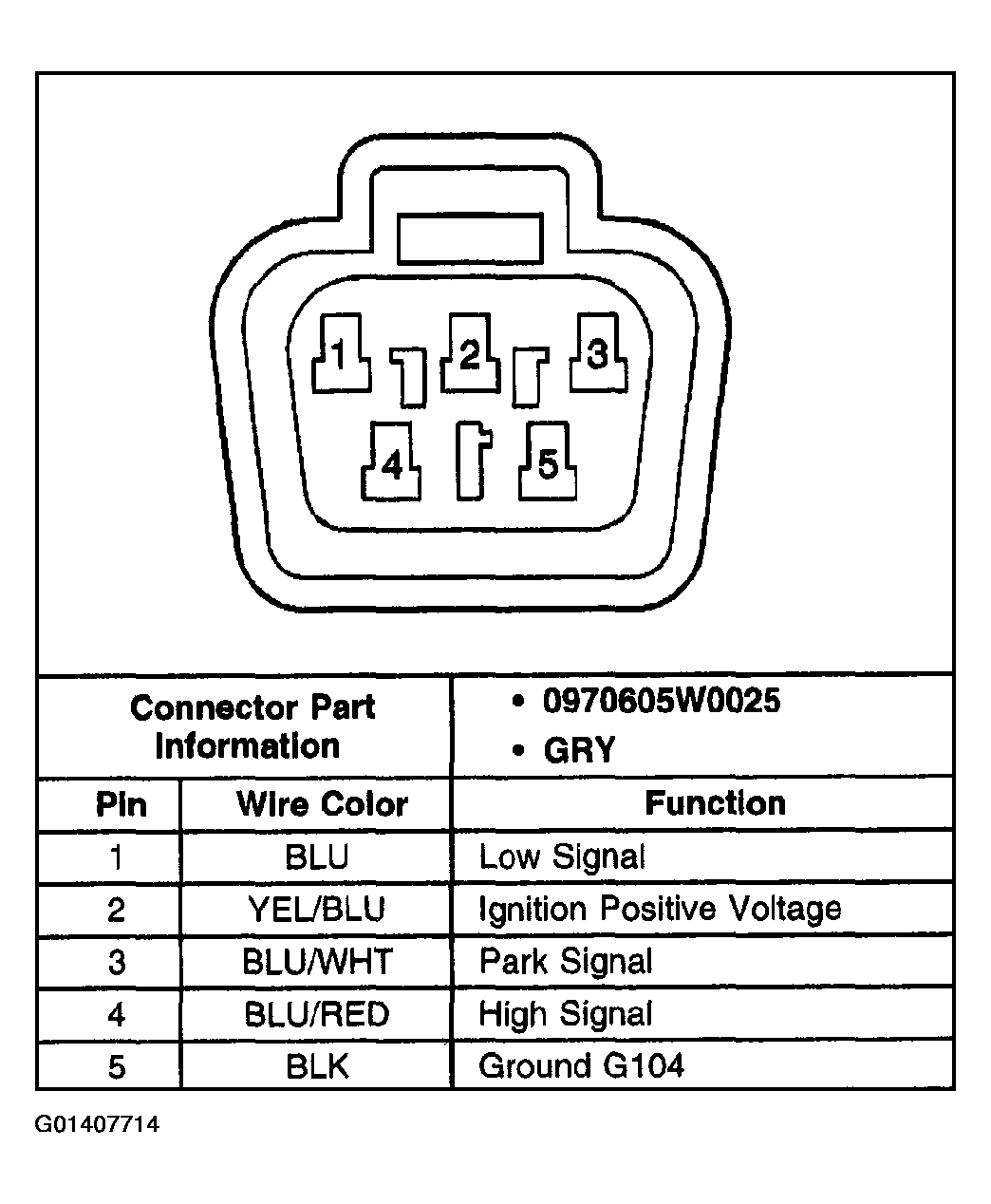

Front Wiper Motor Connector End View

Fig 1: Front Wiper Motor

G01407714

Courtesy of GENERAL MOTORS CORP.
