Front Washer Pump Connector End View

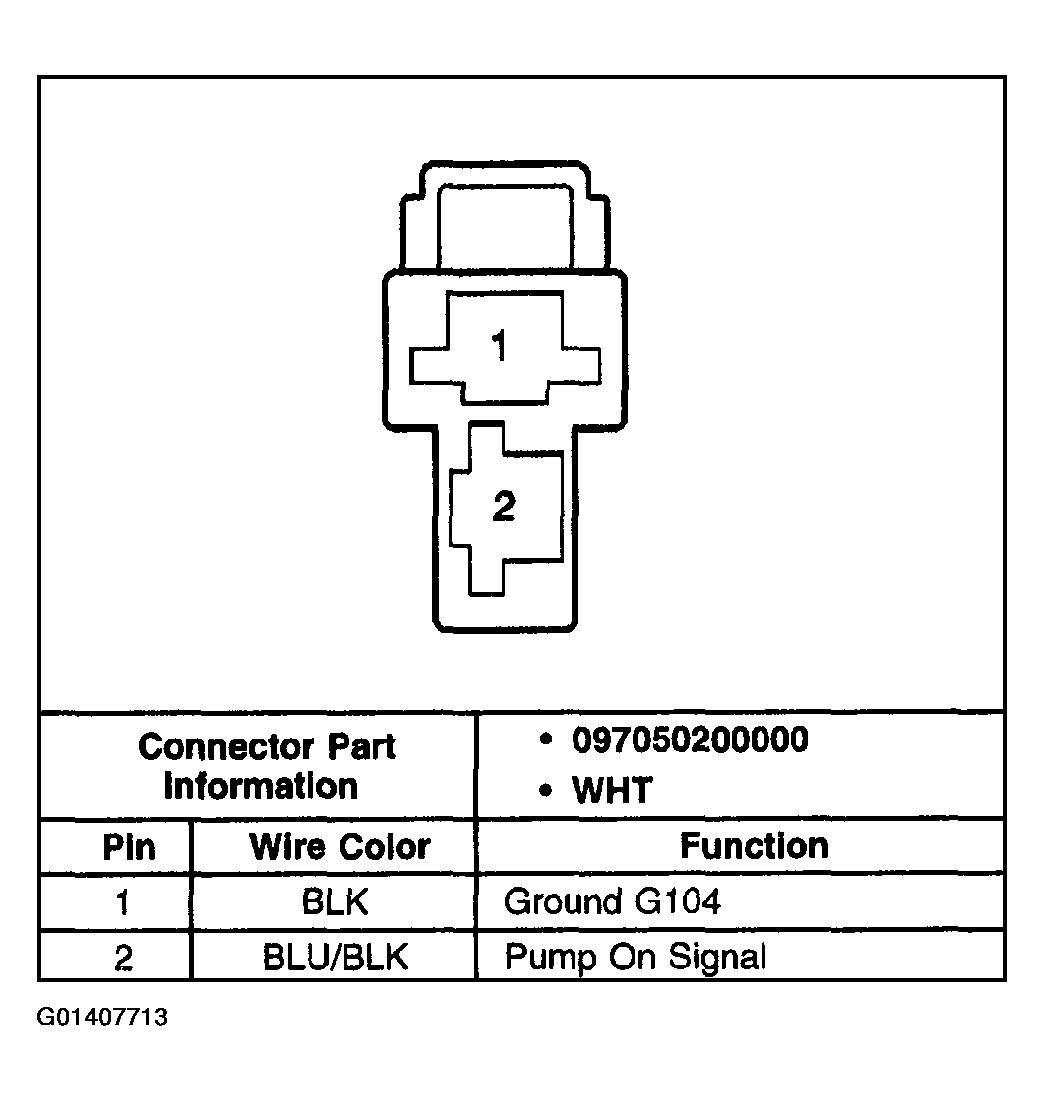

Fig 1: Front Washer Pump

G01407713

Courtesy of GENERAL MOTORS CORP.
