Door Unlock Relay Connector End View

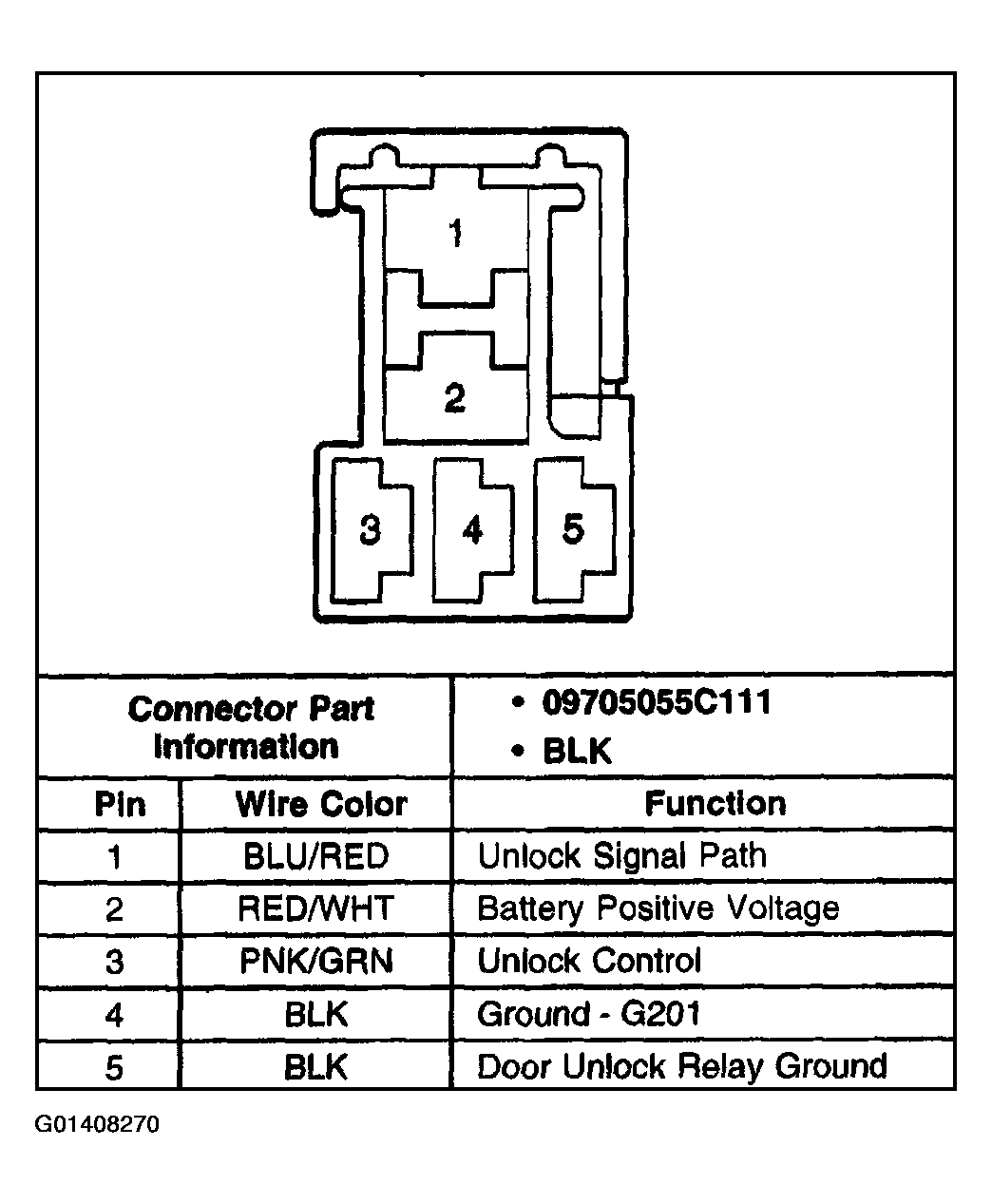

Fig 1: Door Unlock Relay

G01408270

Courtesy of GENERAL MOTORS CORP.
