Blower Motor Switch Connector End View

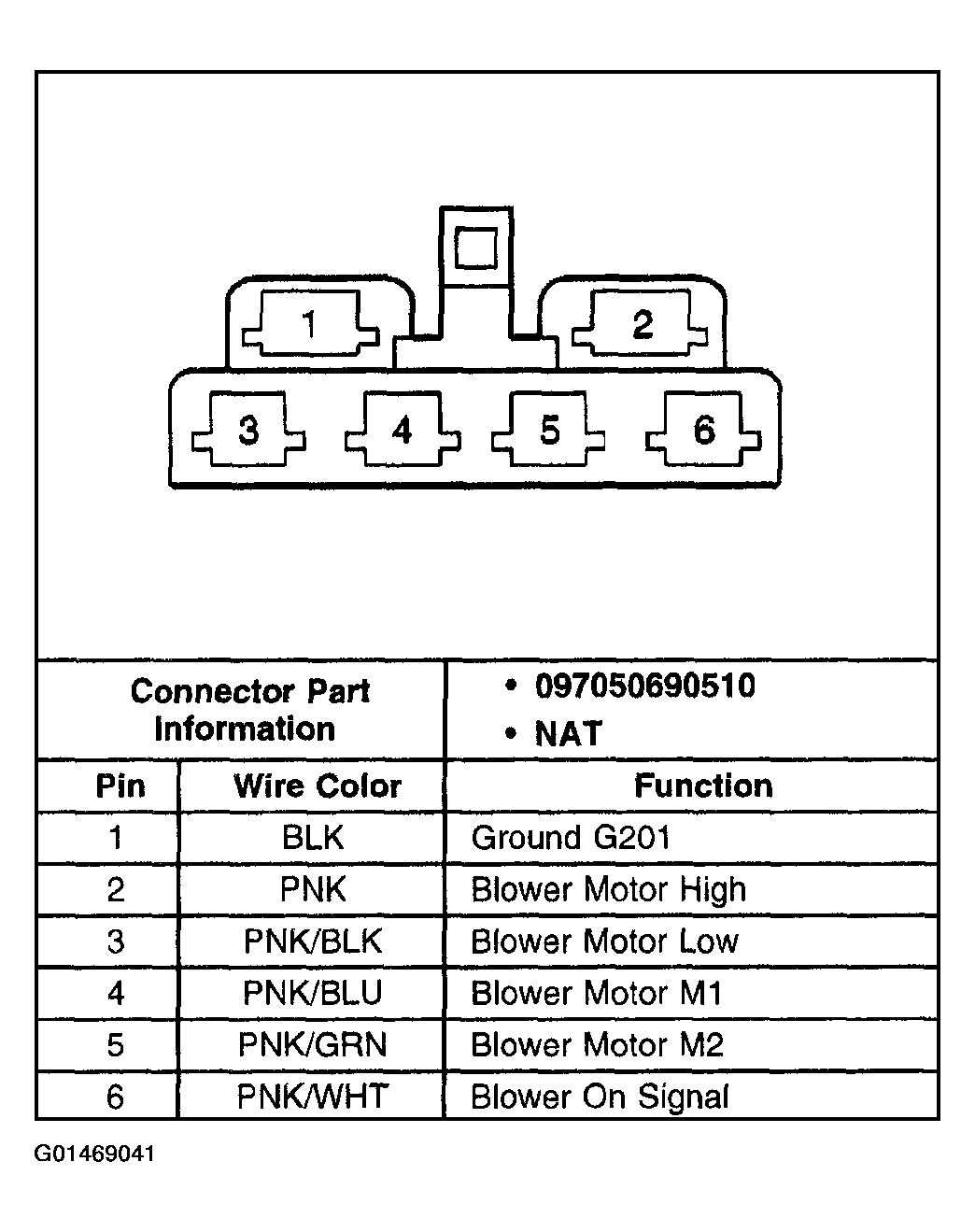

Fig 1: Blower Motor Switch

G01469041

Courtesy of GENERAL MOTORS CORP.
