Window Regulators Connector End View

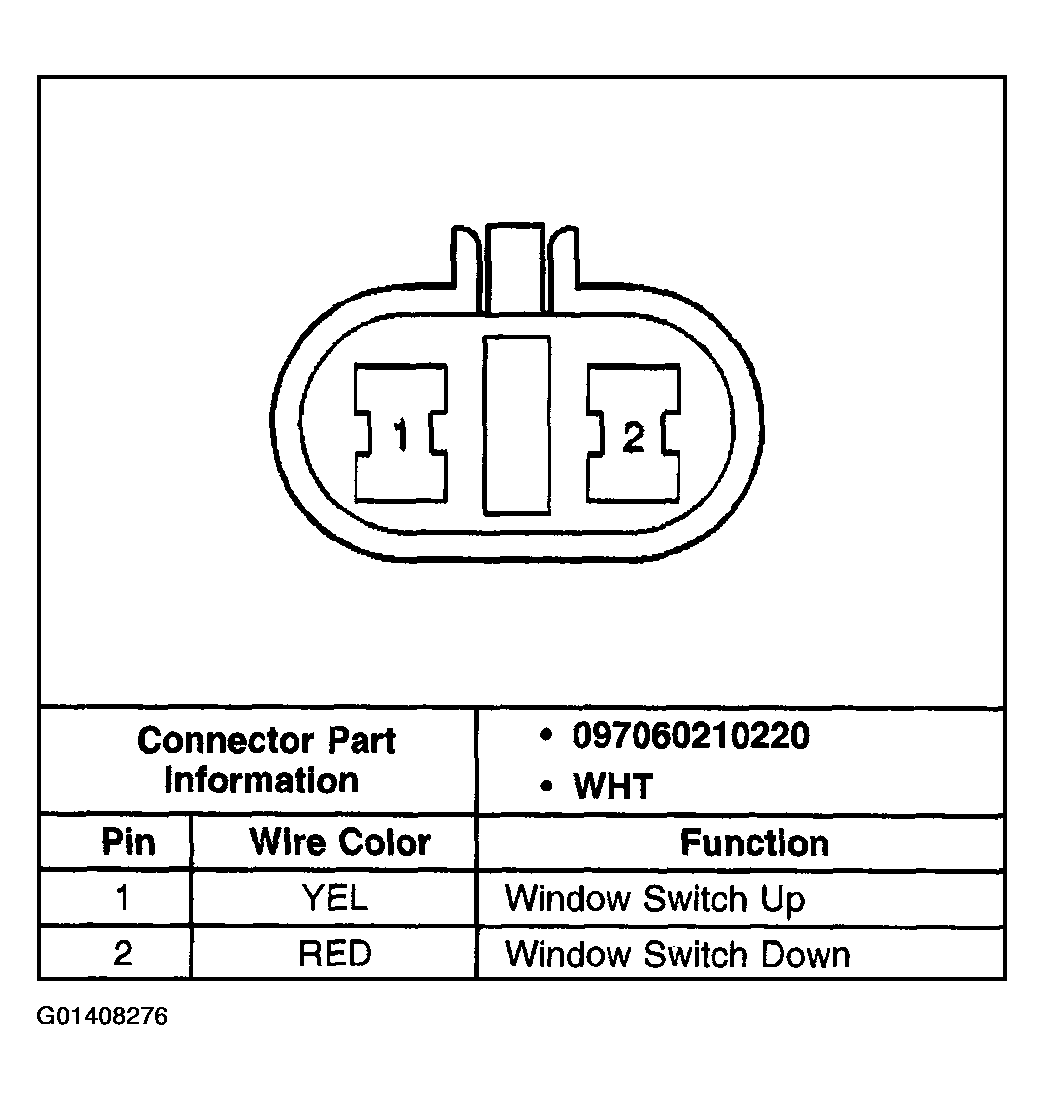

Fig 1: Window Regulators

G01408276

Courtesy of GENERAL MOTORS CORP.
