Shift Program Switch Connector End View

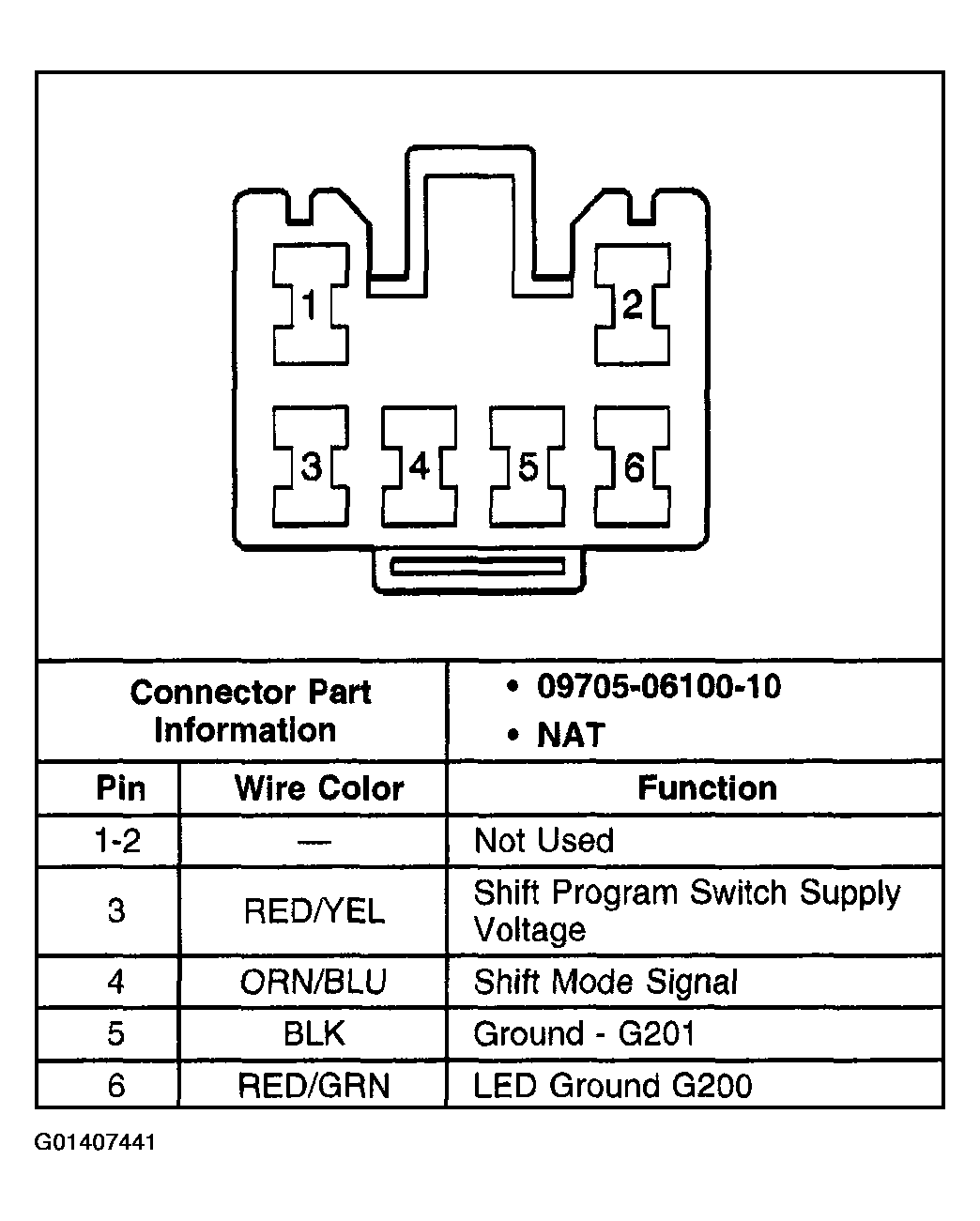

Fig 1: Shift Program Switch

G01407441

Courtesy of GENERAL MOTORS CORP.
