Remote Control Mirror Switch Connector End View

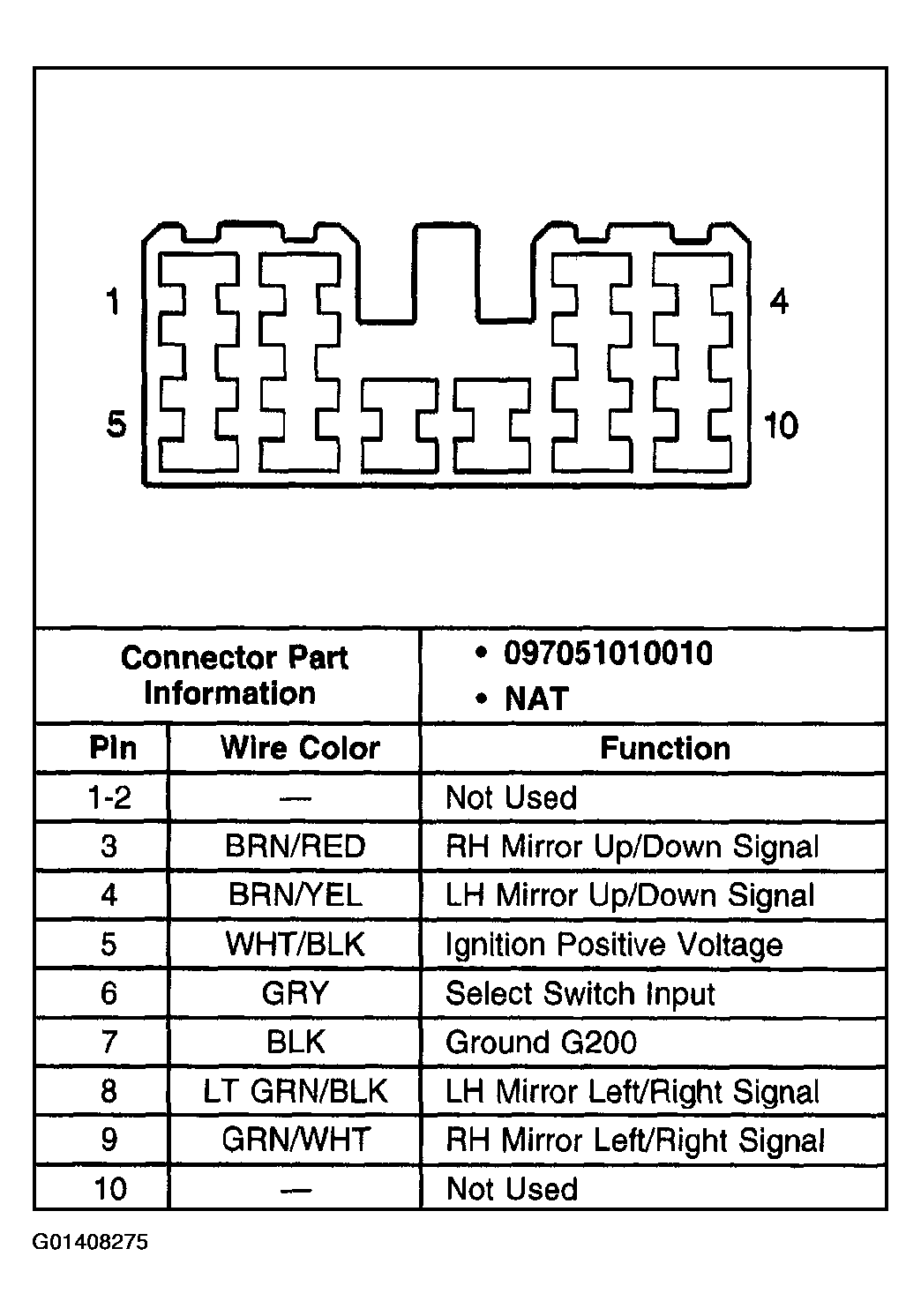

Fig 1: Remote Control Mirror Switch

G01408275

Courtesy of GENERAL MOTORS CORP.
