Input Shaft Speed Sensor Connector End View

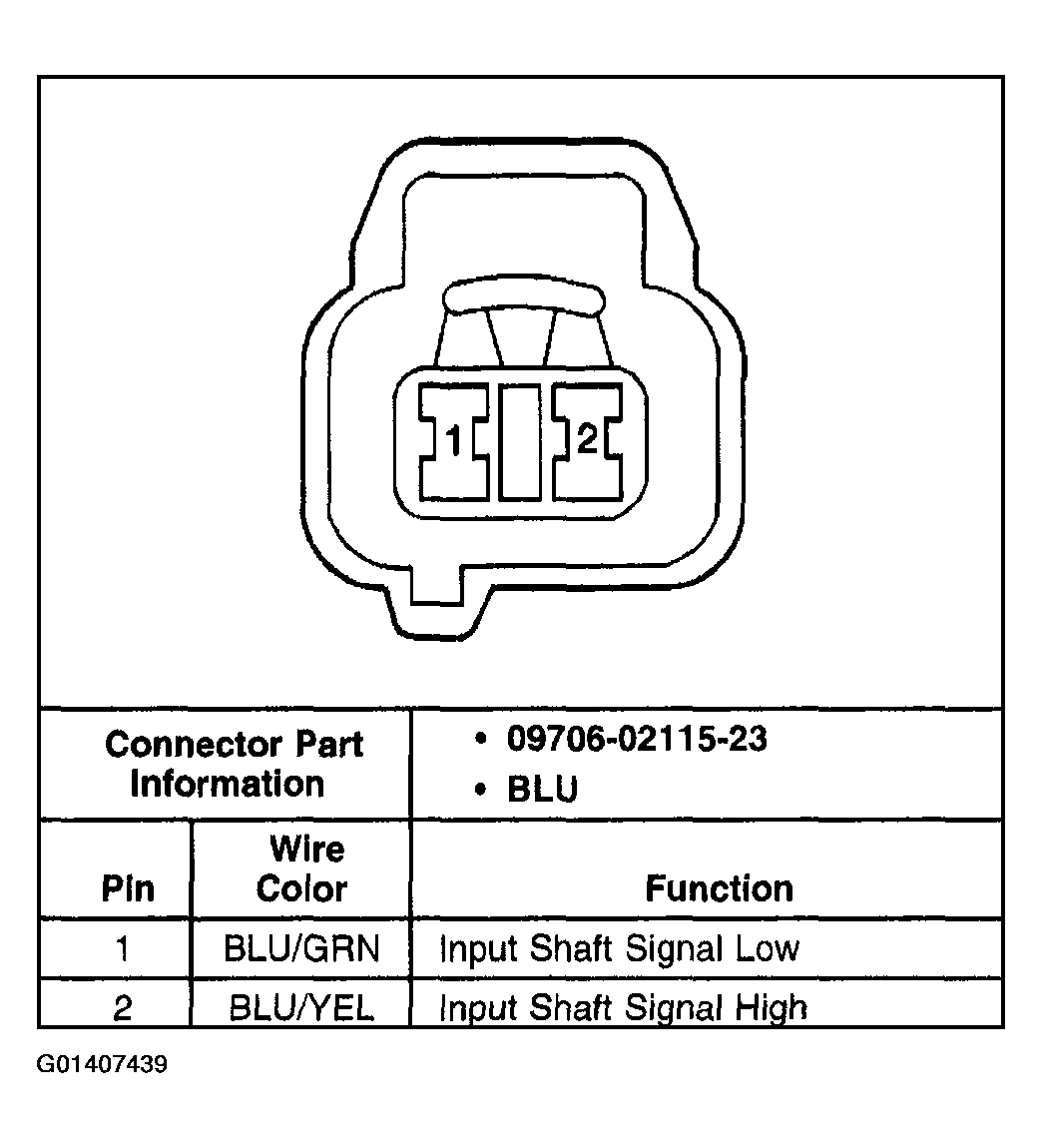

Fig 1: Input Shaft Speed Sensor

G01407439

Courtesy of GENERAL MOTORS CORP.
