DRL Control Module Connector End View

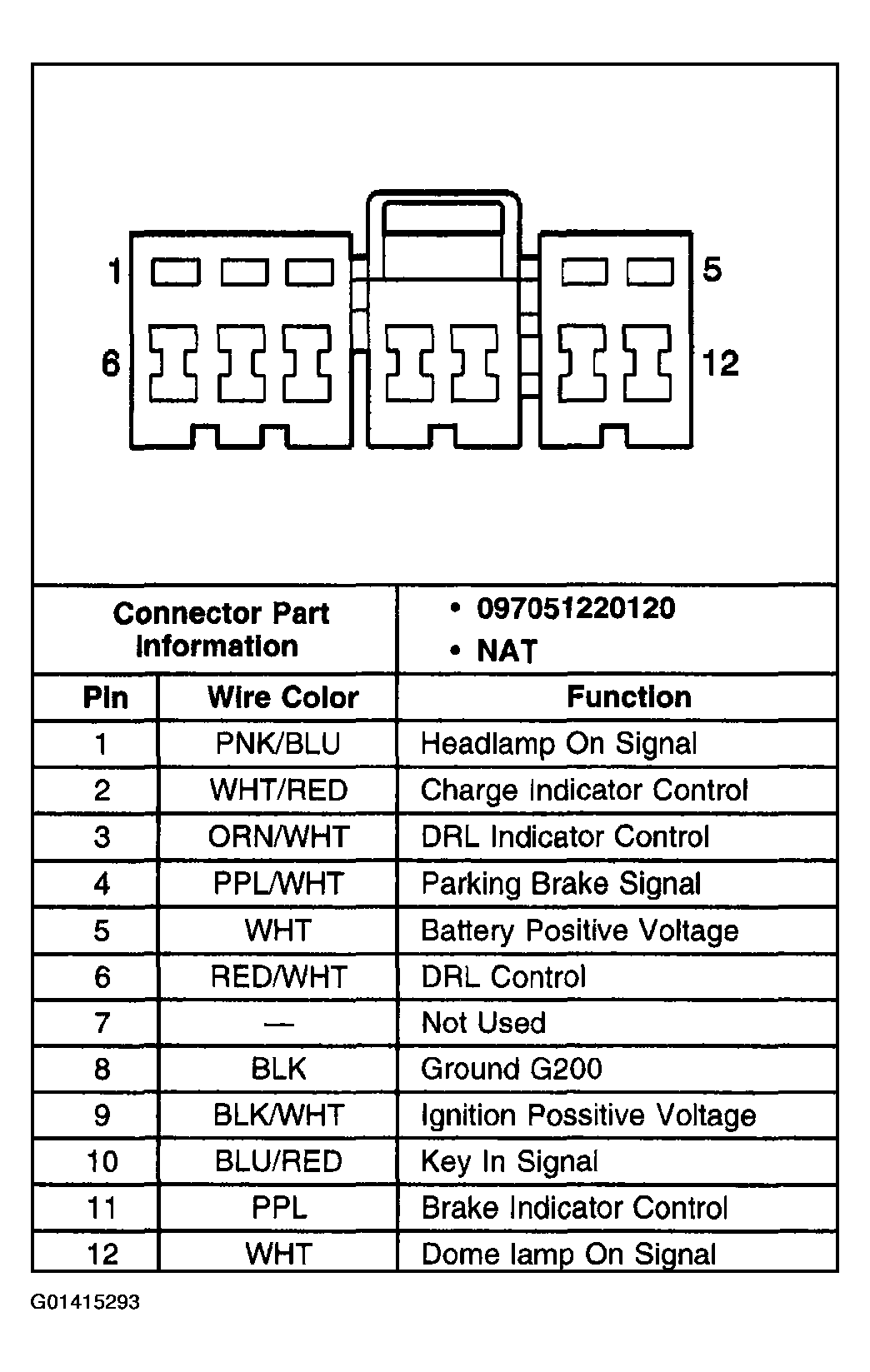

Fig 1: DRL Control Module

G01415293

Courtesy of GENERAL MOTORS CORP.
