A/C Compressor Relay Connector End View

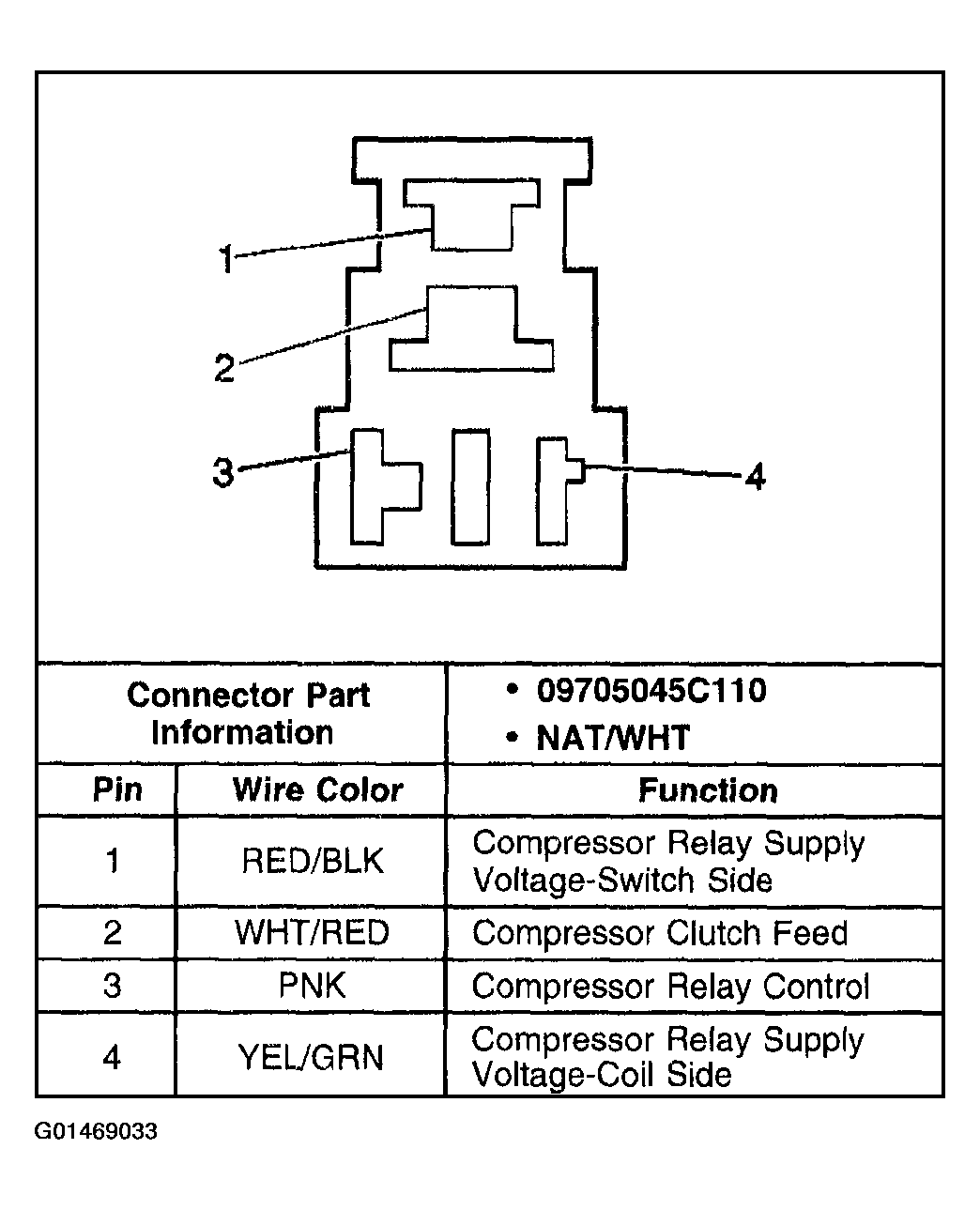

Fig 1: A/C Compressor Relay

G01469033

Courtesy of GENERAL MOTORS CORP.
