Home >> Chevrolet >> 2003 >> Tracker 2D Utility, RWD, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> A/C Compressor Control Module Connector End View C1

A/C Compressor Control Module Connector End View C1

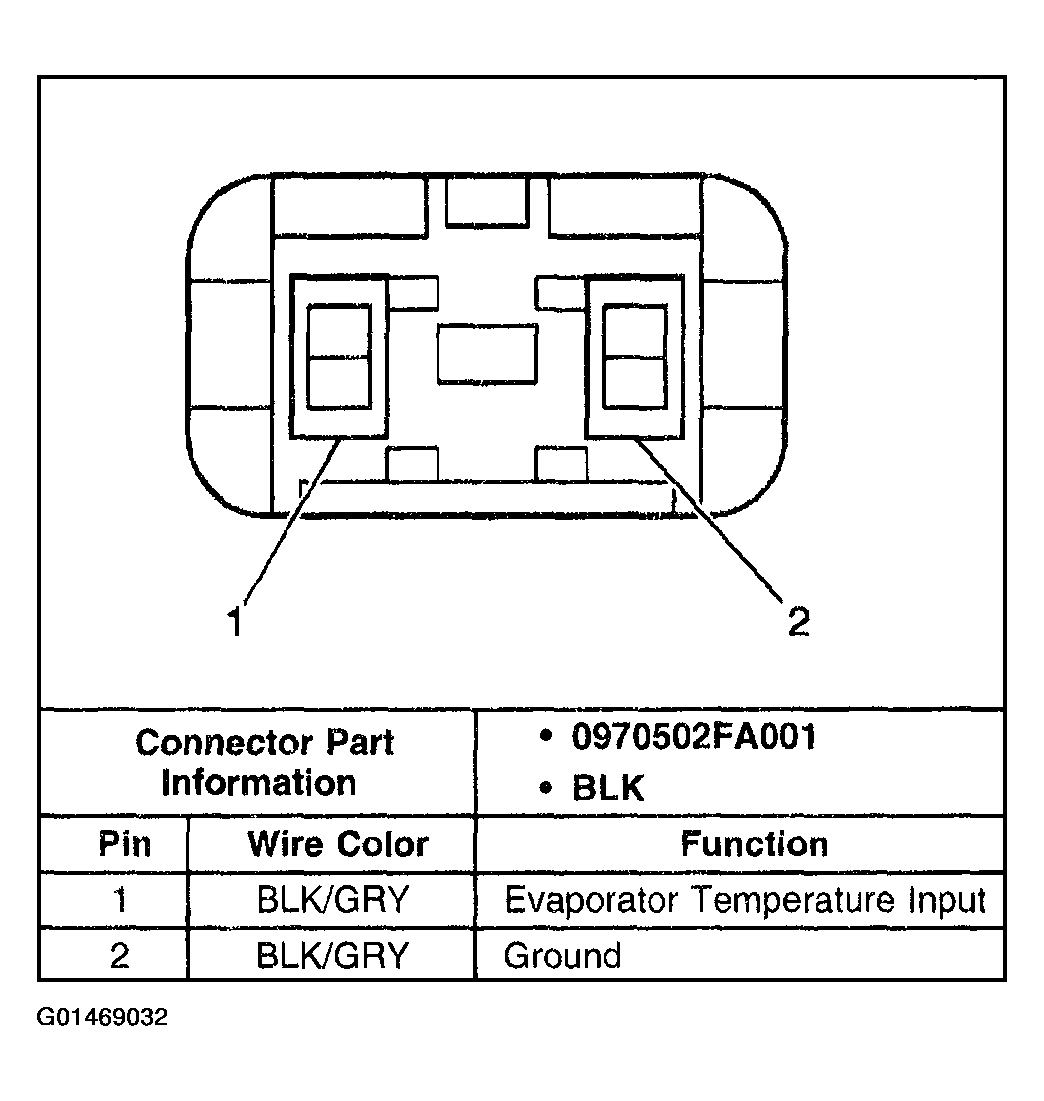

Fig 1: A/C Compressor Control Module C1

G01469032

Courtesy of GENERAL MOTORS CORP.
