Removal Procedure

NOTE: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative (-) battery cable (1) from the negative (-) battery terminal.
  2. Disconnect the positive battery cable (3) from the positive (+) battery terminal.
  3. Remove the 2 nuts and the hold down bracket from the battery carrier.
  4. Remove the battery from the vehicle.

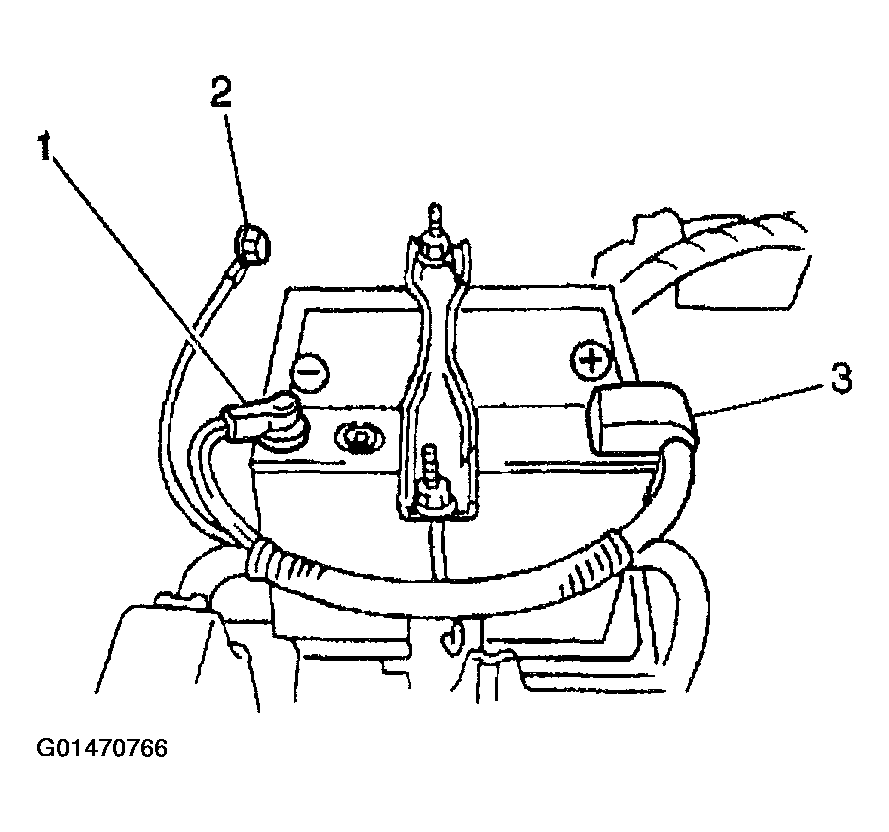

    Fig 1: Removing Nuts & Holding Down Bracket From Battery Carrier
    G01470766Courtesy of GENERAL MOTORS CORP.
