Installation Procedure

  1. Install the battery harness to the vehicle.
  2. Install the starter upper mounting bolt (1) and the ground wire.
  3. Install the battery positive wire to the starter (2). Secure with the nut.
  4. Install the battery positive wire to the generator. Secure with the nut.
  5. Install the harness clamp to the right engine mount. Secure with the bolt.

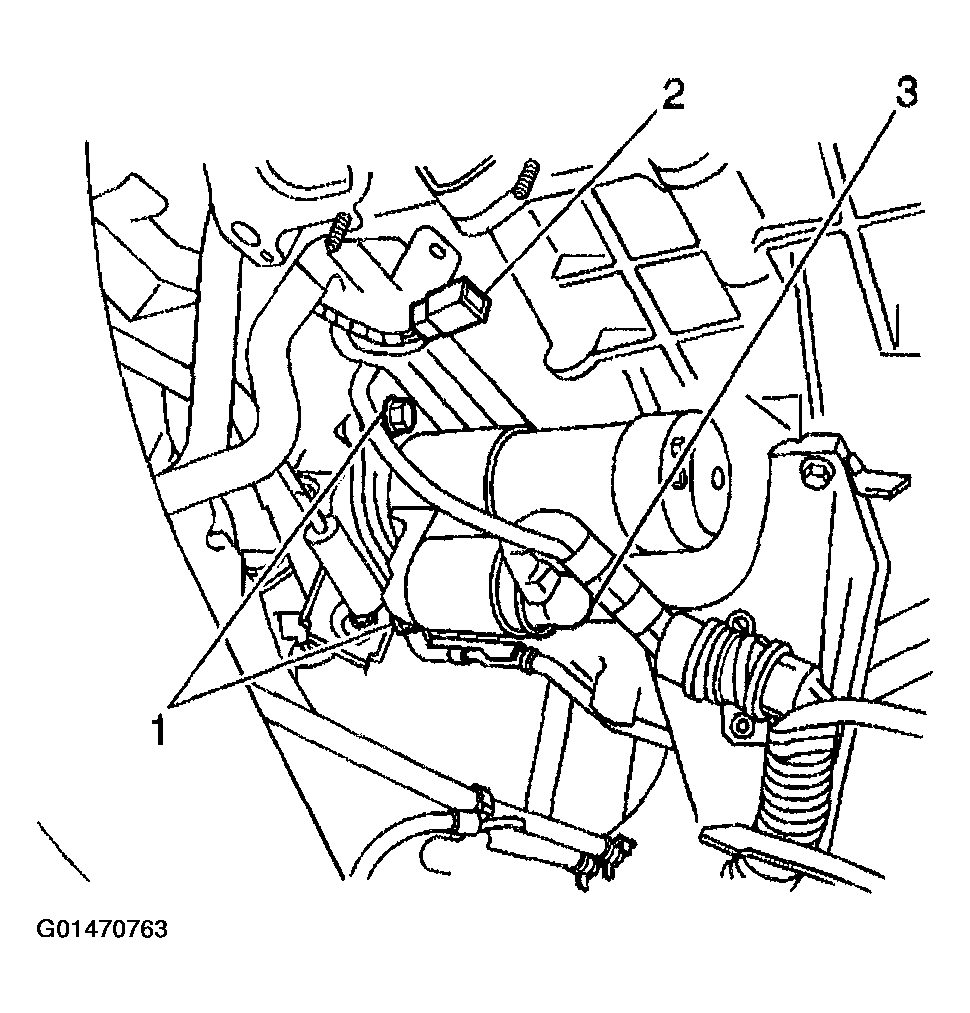

    Fig 1: Installing Battery Harness To Vehicle
    G01470763Courtesy of GENERAL MOTORS CORP.
  6. Install the battery positive wires to the fuse box noting the correct terminal routing.
  7. Install the fuse box (1) to the right inner fender. Secure with the 3 bolts.

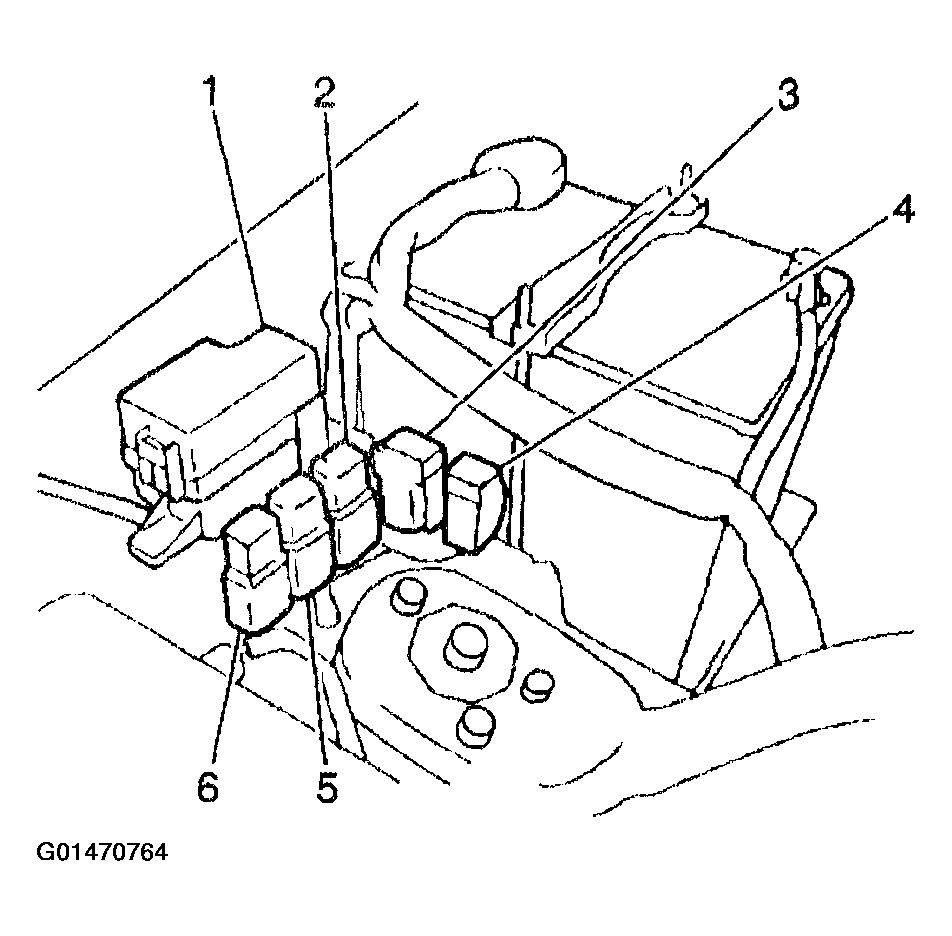

    Fig 2: Installing Fuse Box To Right Inner Fender
    G01470764Courtesy of GENERAL MOTORS CORP.
  8. Install the ground wire to the bulkhead.
  9. Connect the harness (1) retainers.
  10. Install the positive battery cable to the positive battery terminal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  11. Install the negative battery cable to the negative battery terminal.

    Tighten

    1. Tighten the battery cable-to-battery terminals to 15 N.m (11 lb ft).

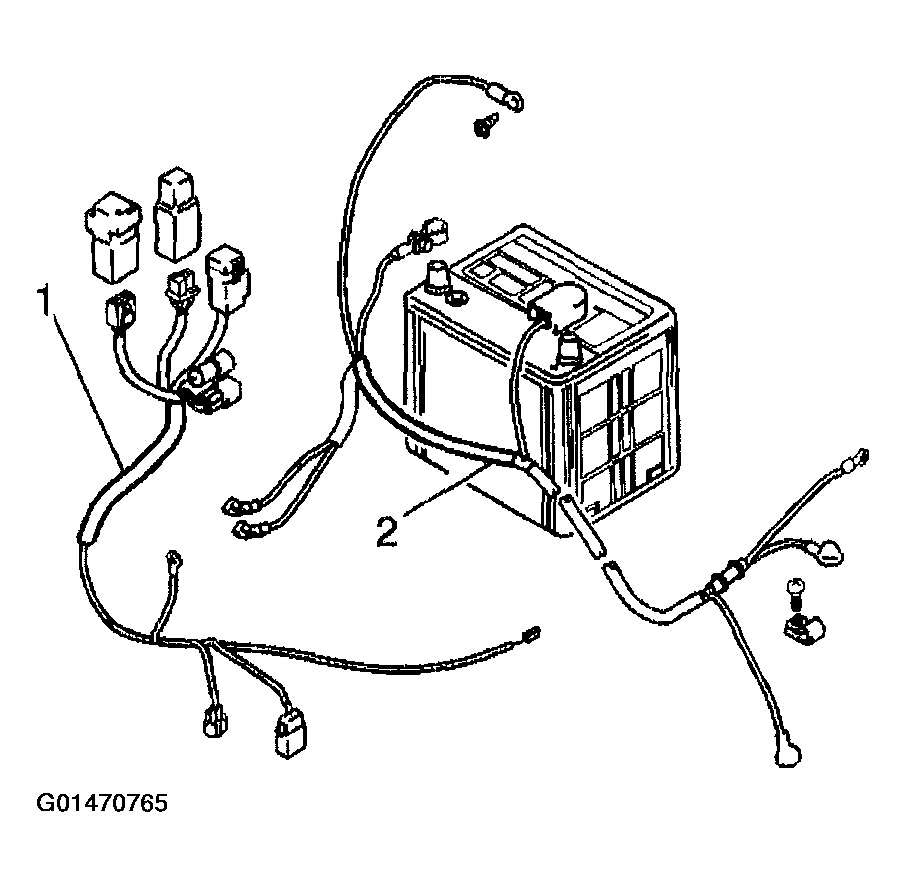

    Fig 3: Installing Ground Wire To Bulkhead
    G01470765Courtesy of GENERAL MOTORS CORP.
