Installation Procedure

  1. Install the battery harness to the vehicle.
  2. Install the starter upper mounting bolt (1) and the ground wire.
  3. Install the battery positive wire to the starter (2). Secure with the nut.
  4. Install the battery positive wire to the generator. Secure with the nut.
  5. Install the harness clamp to the right engine mount. Secure with the bolt.

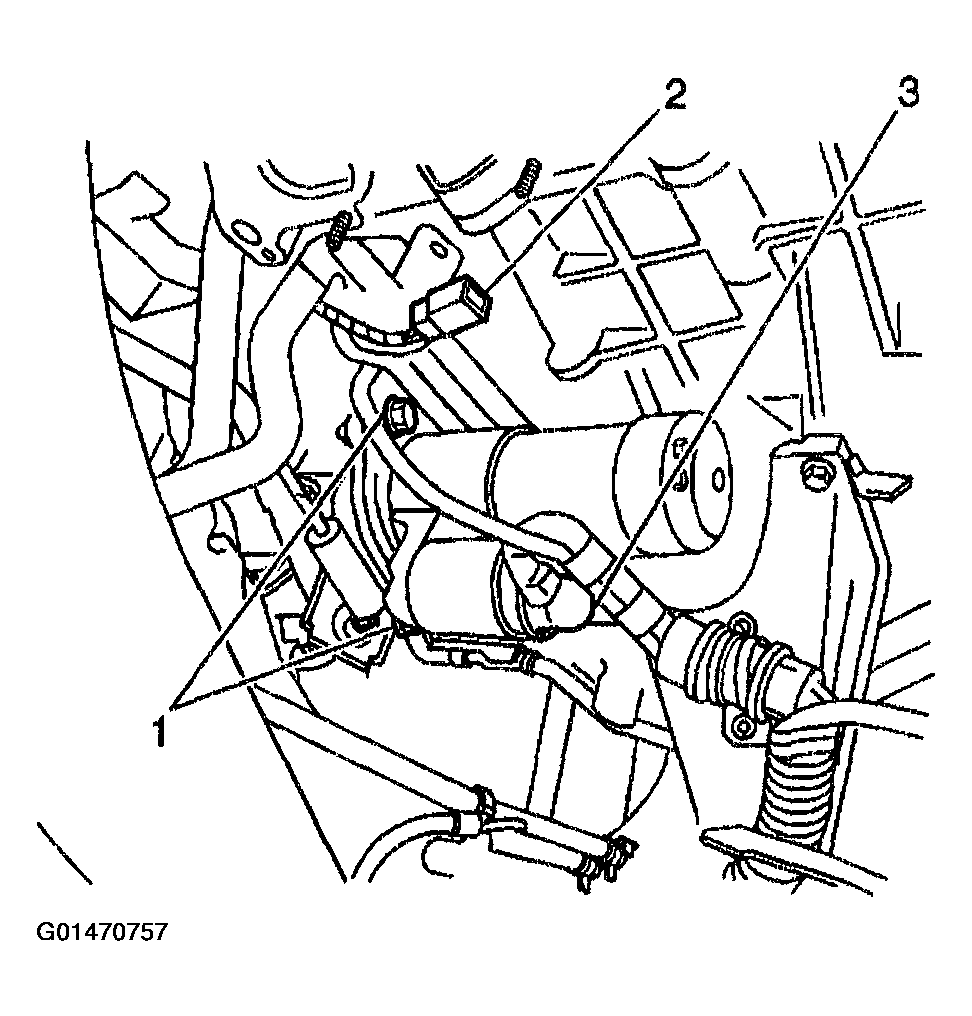

    Fig 1: Starter Upper Mounting Bolt & Ground Wire
    G01470757Courtesy of GENERAL MOTORS CORP.
  6. Install the battery positive wires to the fuse box noting the correct terminal routing.
  7. Install the fuse box (1) to the right inner fender. Secure with the 3 bolts.

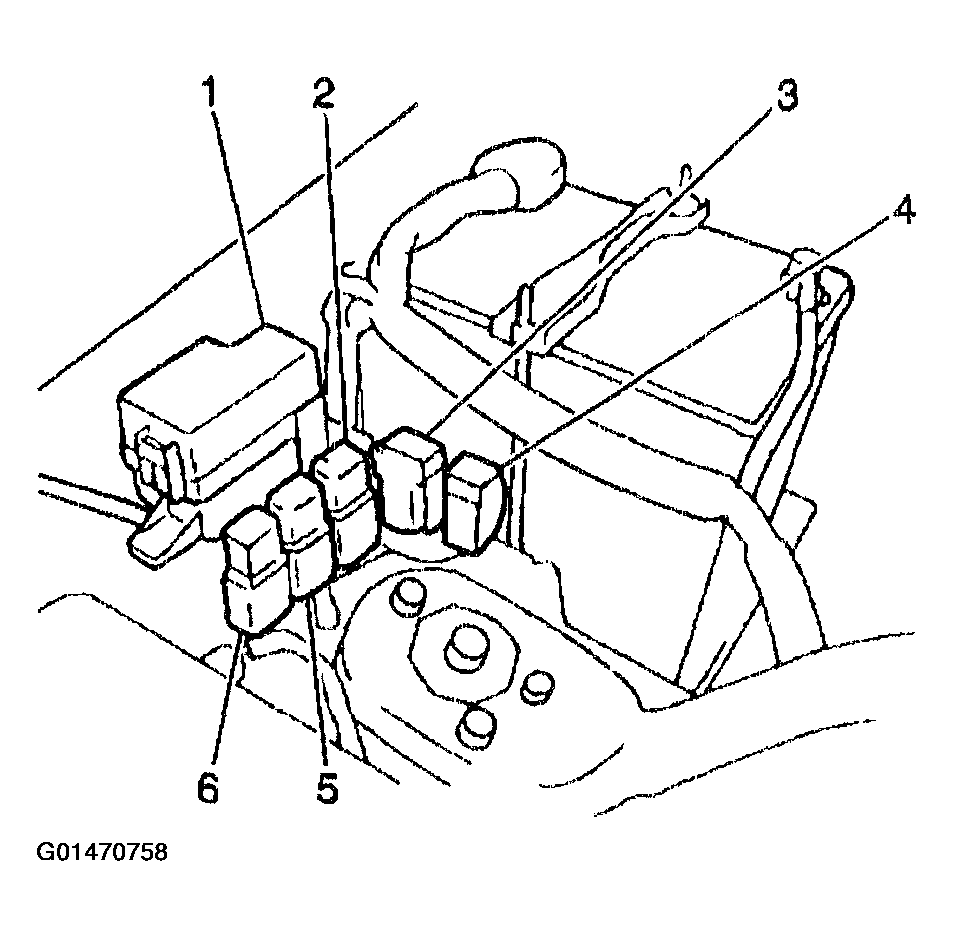

    Fig 2: Installing Battery Positive Wires To Fuse Box Noting Correct Terminal Routing
    G01470758Courtesy of GENERAL MOTORS CORP.
  8. Install the ground wire to the bulkhead.
  9. Connect the harness (1) retainers.
  10. Install the positive battery cable to the positive battery terminal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  11. Install the negative battery cable to the negative battery terminal.

    Tighten

    1. Tighten the battery cable-to-battery terminals to 15 N.m (11 lb ft).

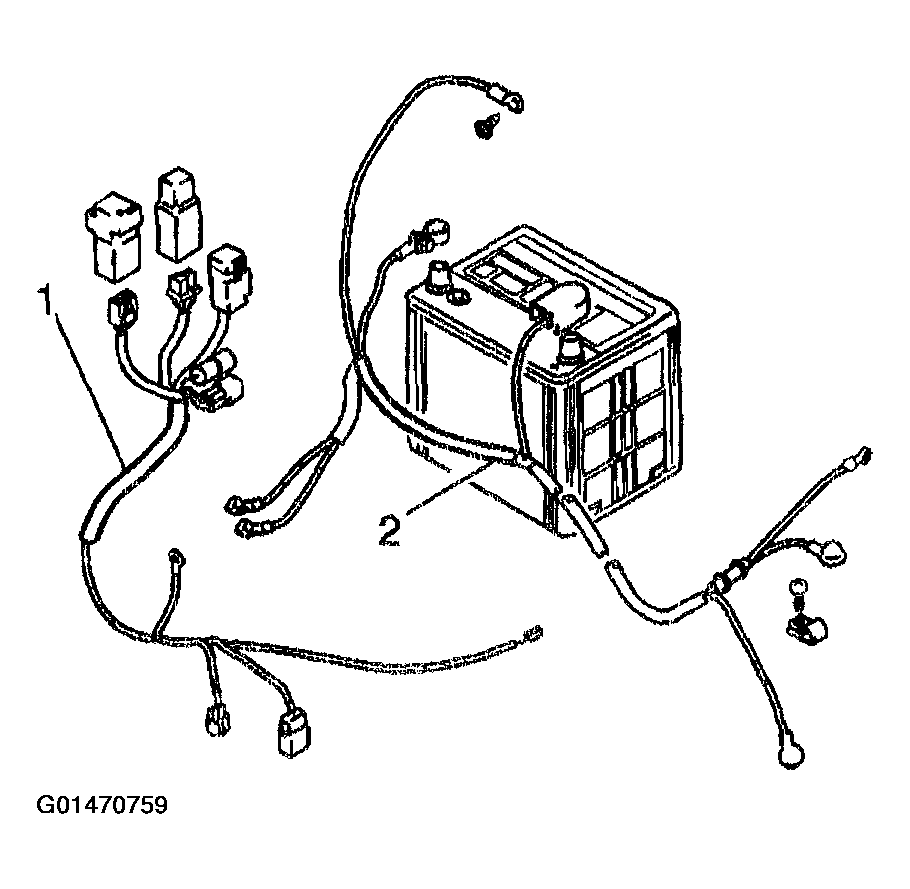

    Fig 3: Installing Battery Cables To Battery Terminal
    G01470759Courtesy of GENERAL MOTORS CORP.
