Engine Electrical Connector End Views: Generator

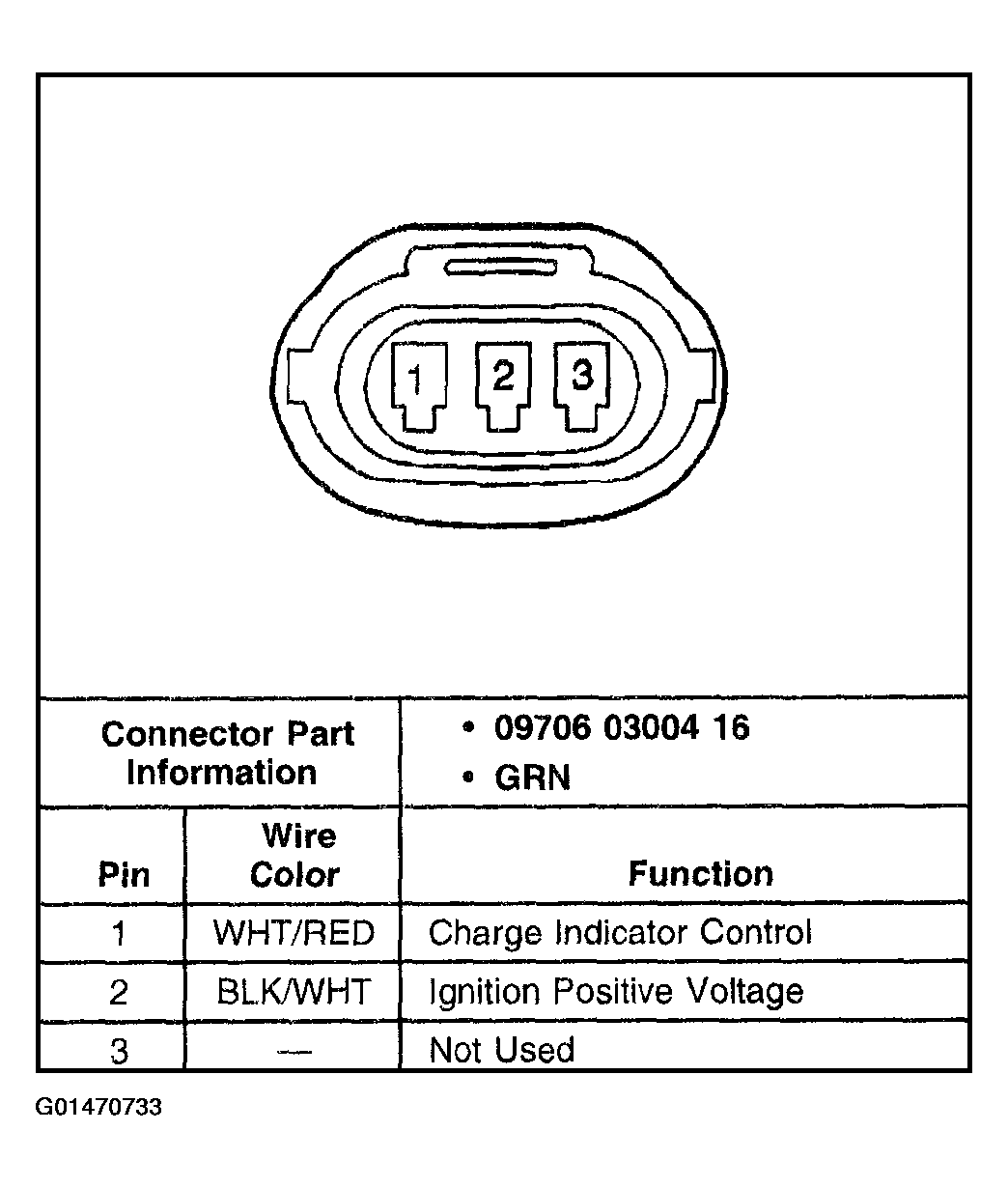

Fig 1: Generator Connector

G01470733

Courtesy of GENERAL MOTORS CORP.
