Removal Procedure

  1. Remove the Front Wheel Hub. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD) or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (2WD) in Front Suspension.
  2. Remove the ABS reluctor ring (1) from the wheel hub (2) by prying the ring away from the hub.

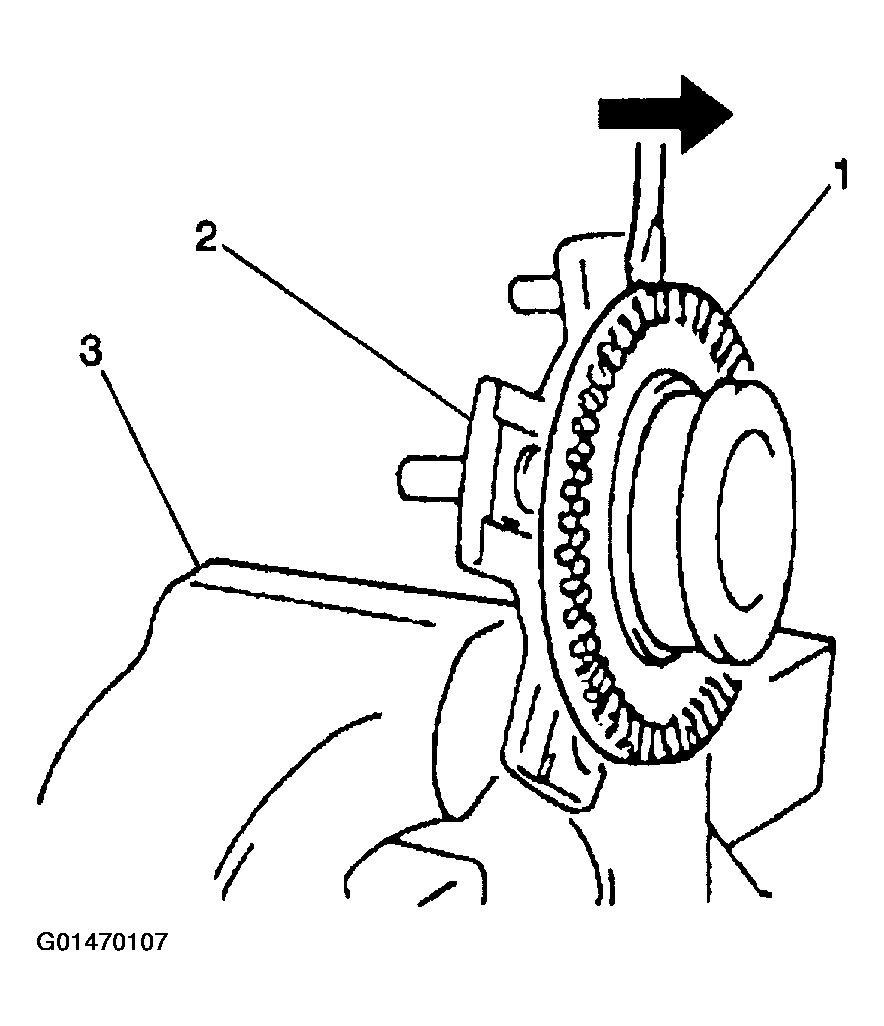

    Fig 1: Removing ABS Reluctor Ring From Wheel Hub By Prying Ring Away From Hub (Front)
    G01470107Courtesy of GENERAL MOTORS CORP.
