Removal Procedure

  1. Raise and support the vehicle on a suitable hoist. Refer to LIFTING & JACKING VEHICLE in General Information.
  2. Disconnect the front wheel speed sensor electrical connector.
  3. Remove the retaining bolt (3).
  4. Remove the front wheel speed sensor (1) from the steering knuckle (2).

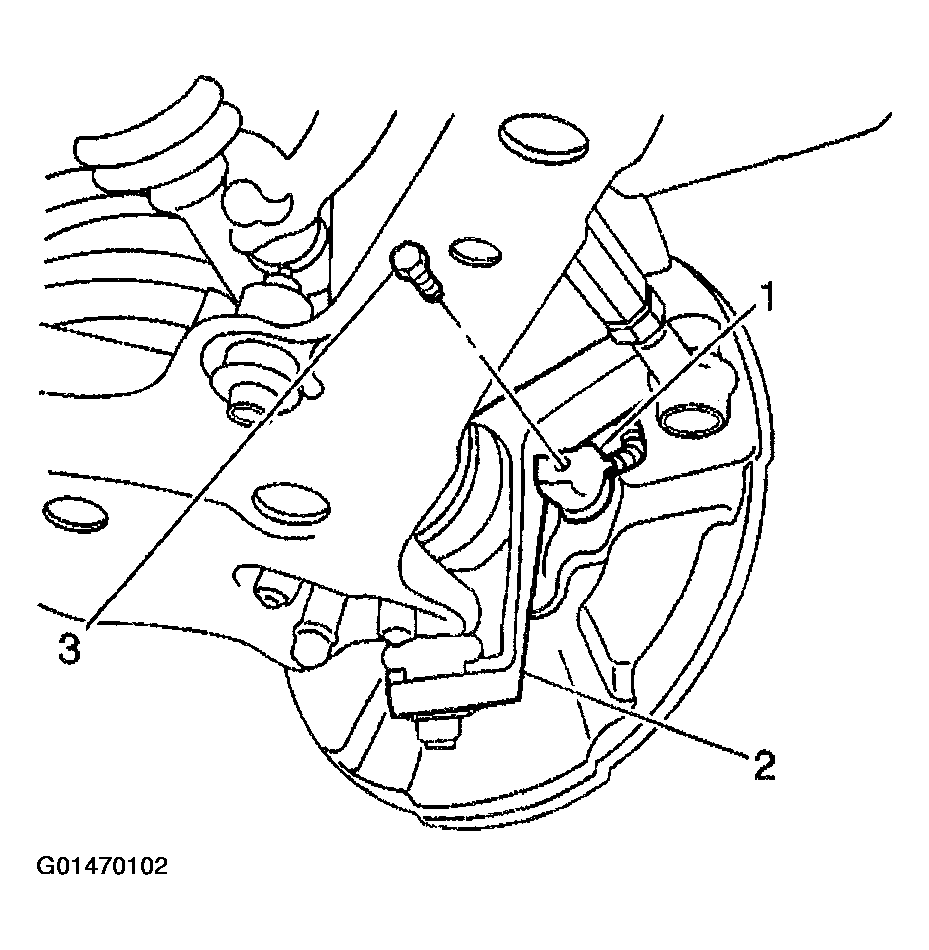

    Fig 1: Removing Front Wheel Speed Sensor From Steering Knuckle (Front)
    G01470102Courtesy of GENERAL MOTORS CORP.
  5. Remove the front wheel speed sensor, sensor harness (2), and harness bracket (1) from the vehicle.

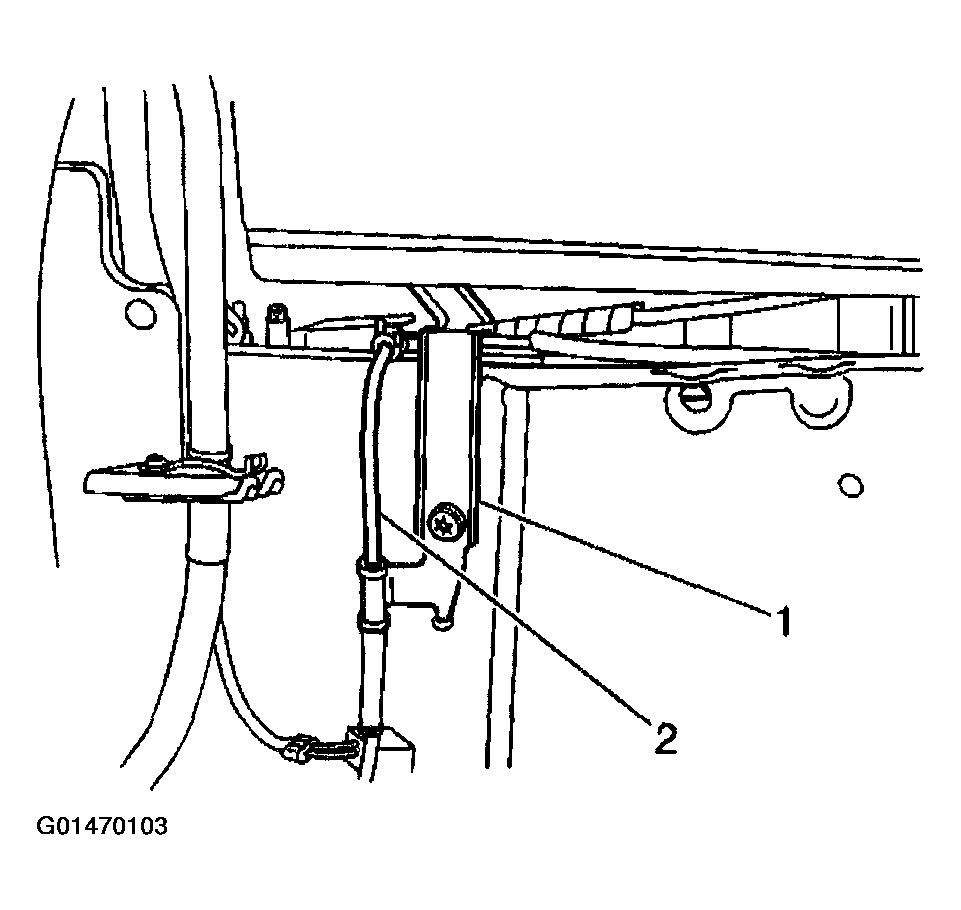

    Fig 2: Locating Sensor Harness & Harness Bracket (Front)
    G01470103Courtesy of GENERAL MOTORS CORP.
