Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Turn the ignition switch to the OFF position.
  2. Remove the Connector Position Assurance (CPA) (2) from the connector lock tab (1).

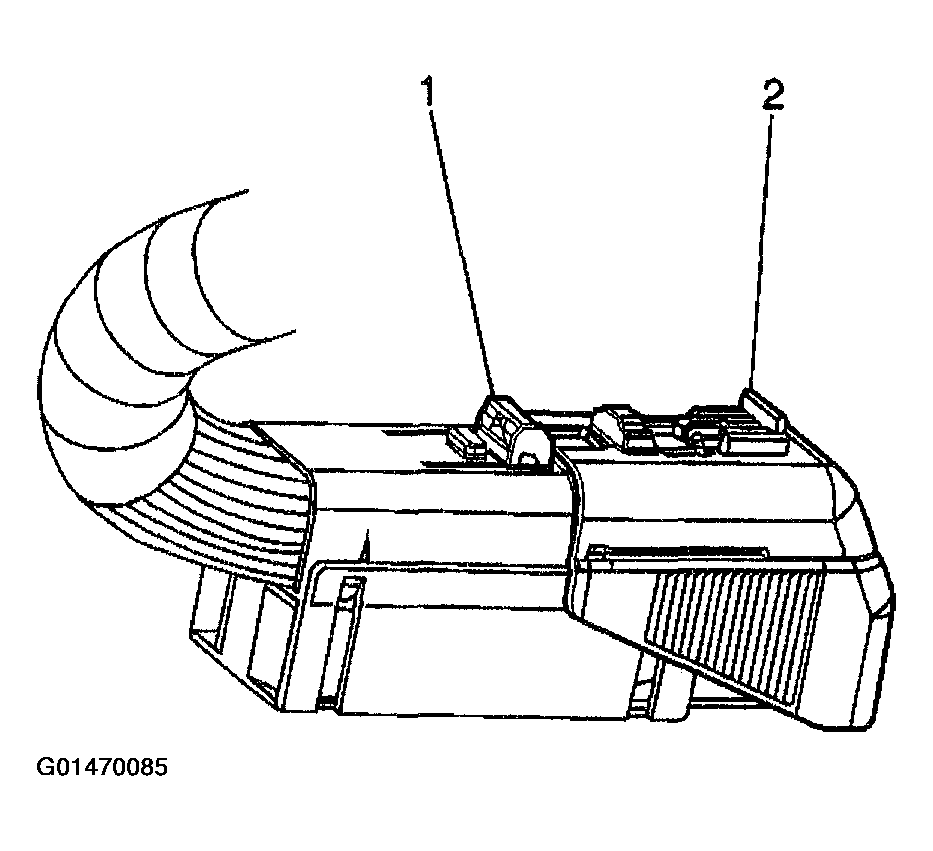

    Fig 1: Removing Connector Position Assurance (CPA) From Connector Lock Tab
    G01470085Courtesy of GENERAL MOTORS CORP.
  3. Push the lock tab down and then move the sliding connector cover (2) to the open position.
  4. Disconnect the Electronic Brake Control Module (EBCM) harness connector.
  5. Brush off any dirt/debris that has accumulated on the assembly.

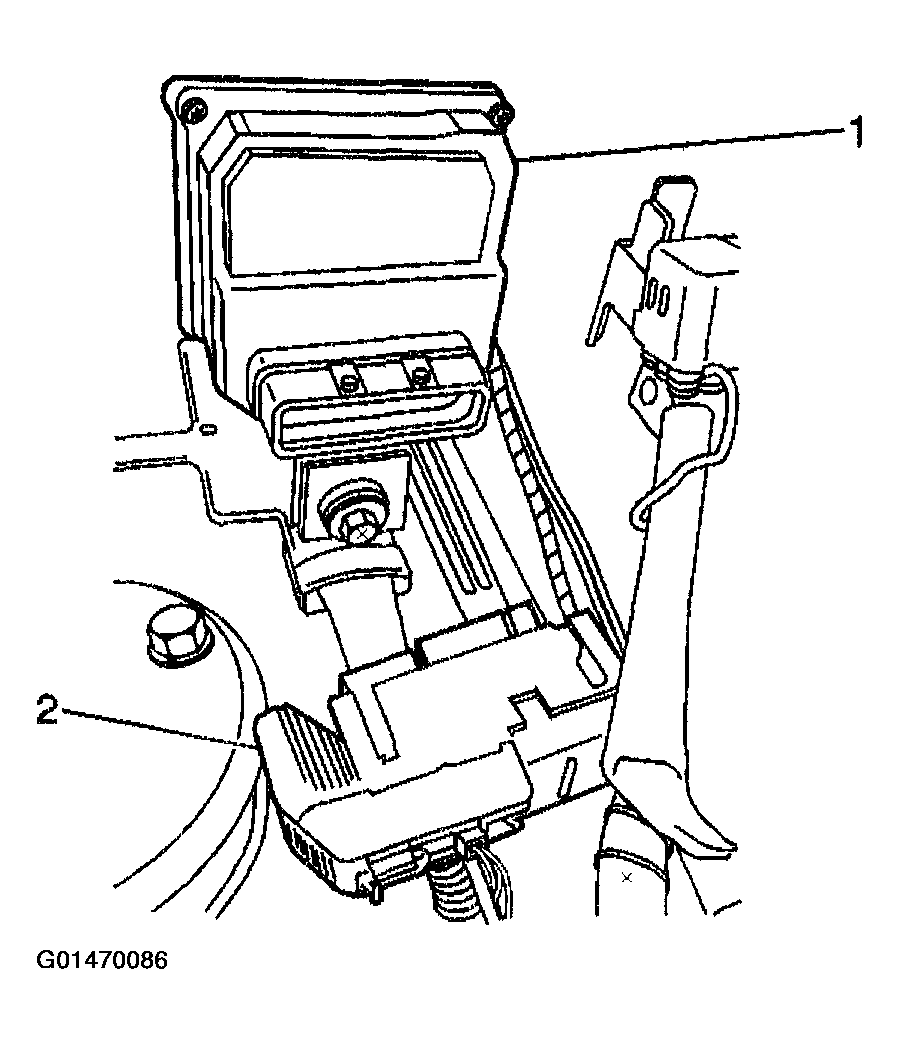

    Fig 2: Pushing Lock Tab Down & Moving Sliding Connector Cover
    G01470086Courtesy of GENERAL MOTORS CORP.
  6. Remove the four EBCM to Brake Pressure Modulator Valve (BPMV) screws (1).
    NOTE: Do not use a tool to pry the EBCM from the BPMV. Excessive force will damage the EBCM.
    NOTE: Be careful not to damage the EBCM seal when removing the EBCM.
  7. Separate the EBCM (2) from the BPMV (4) by gently pulling apart until separated.

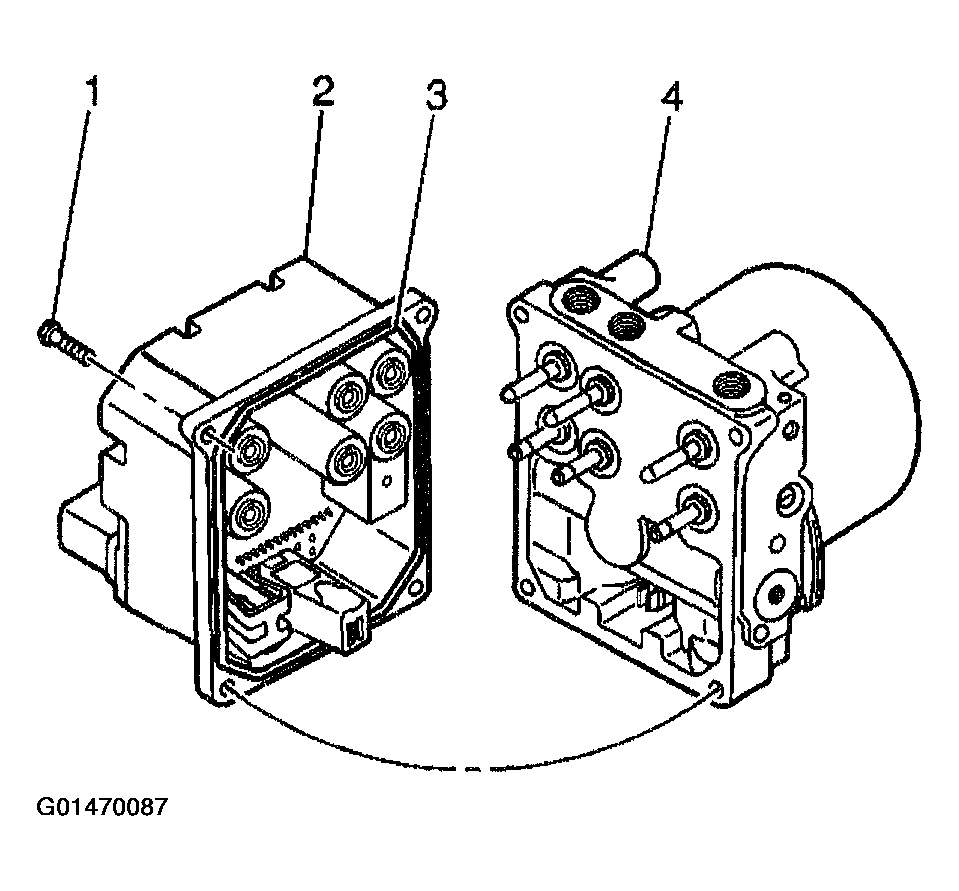

    Fig 3: Separating EBCM From BPMV
    G01470087Courtesy of GENERAL MOTORS CORP.
