Removal Procedure

  1. Remove the parking brake lever bezel attaching screws (2).
  2. Remove the parking brake lever bezel (1).
    Fig 1: Parking Brake Lever Bezel
    G01470120Courtesy of GENERAL MOTORS CORP.
  3. Remove the center console attaching screws (2).
  4. Remove the center console (1).
    Fig 2: Center Console
    G01470121Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the 4WD switch electrical connector (2).
  6. Remove the 4WD switch (3) from the transfer case (1).

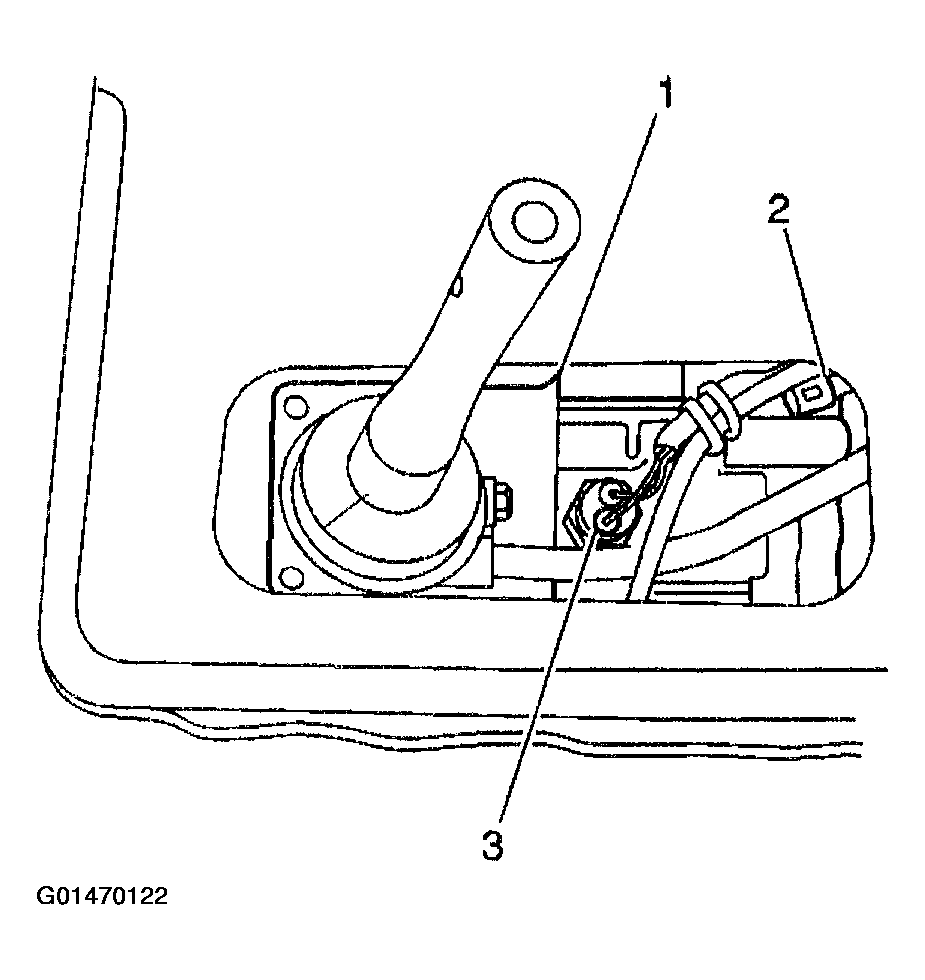

    Fig 3: Disconnecting 4WD Switch Electrical Connector & Removing 4WD Switch
    G01470122Courtesy of GENERAL MOTORS CORP.
