Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the 4WD switch (1) to the transfer case (2).

    Tighten

    1. Tighten the 4WD switch to 30 N.m (22 lb ft).

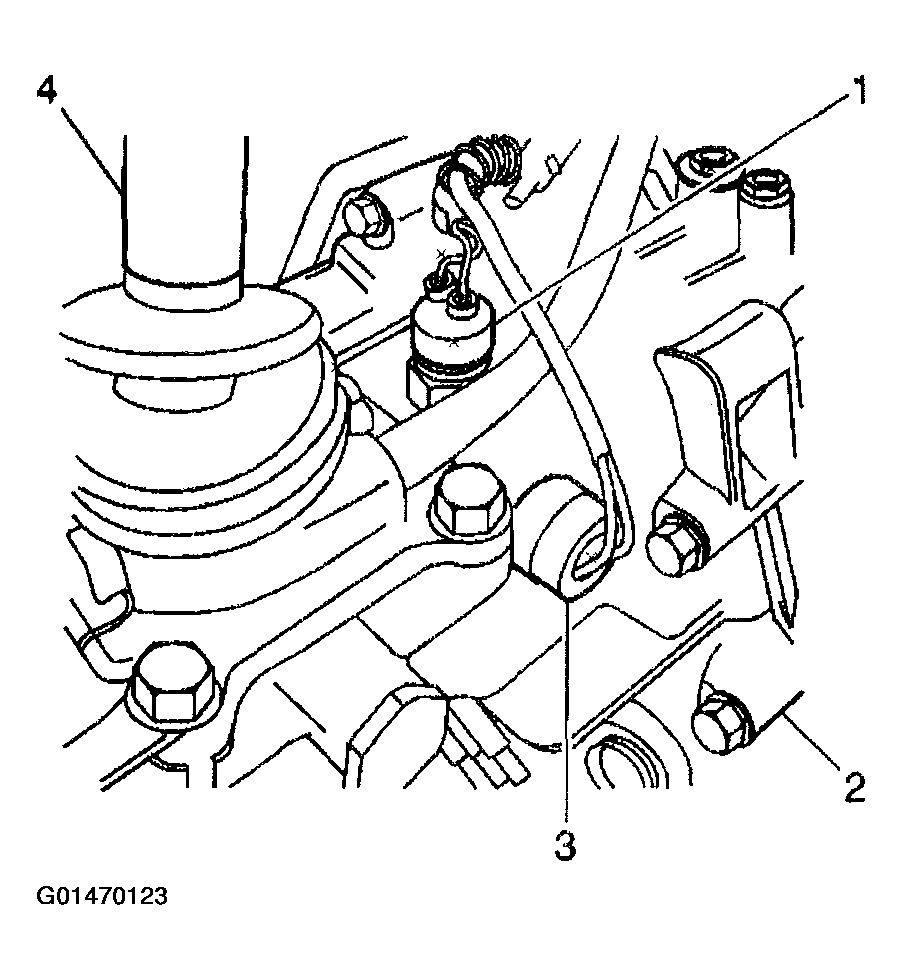

    Fig 1: Installing 4WD Switch To Transfer Case
    G01470123Courtesy of GENERAL MOTORS CORP.
  2. Connect the 4WD switch electrical connector (2).

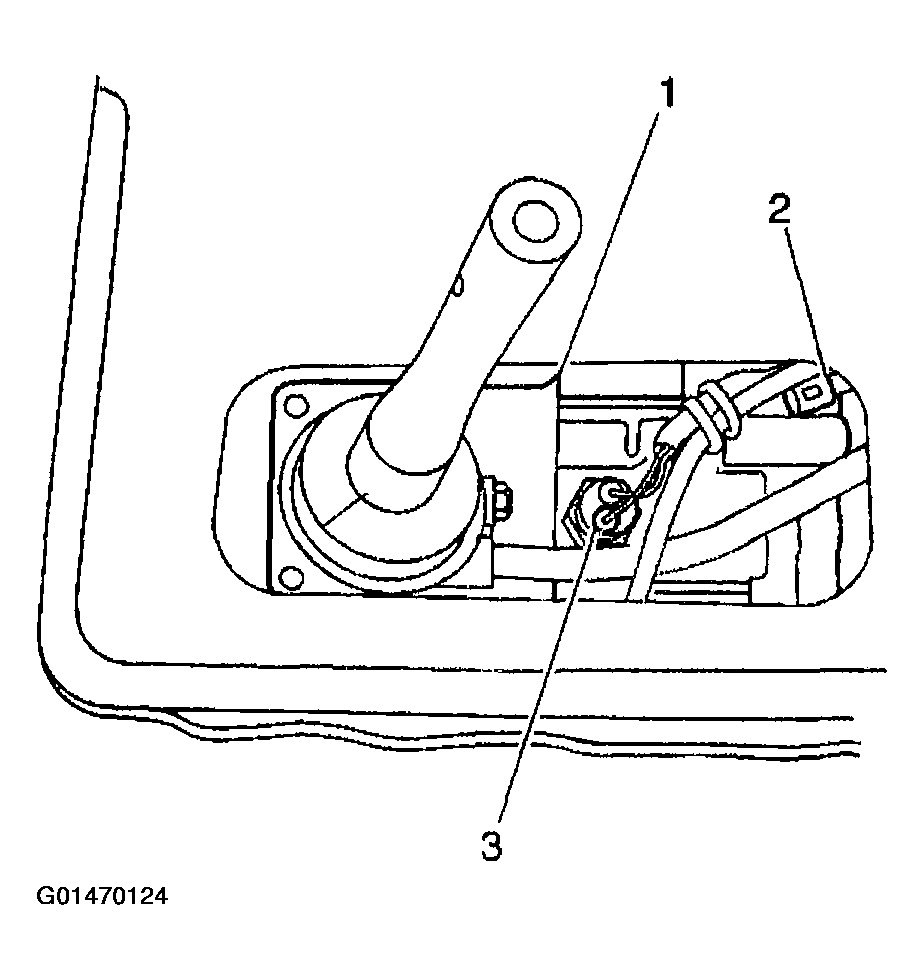

    Fig 2: Connecting 4WD Switch Electrical Connector
    G01470124Courtesy of GENERAL MOTORS CORP.
  3. Install the center console (1).
  4. Install the center console attaching screws (2).
    Fig 3: Center Console
    G01470125Courtesy of GENERAL MOTORS CORP.
  5. Install the parking brake lever bezel (1).
  6. Install the parking brake lever bezel attaching screws (2).
  7. Perform DIAGNOSTIC SYSTEM CHECK - ABS

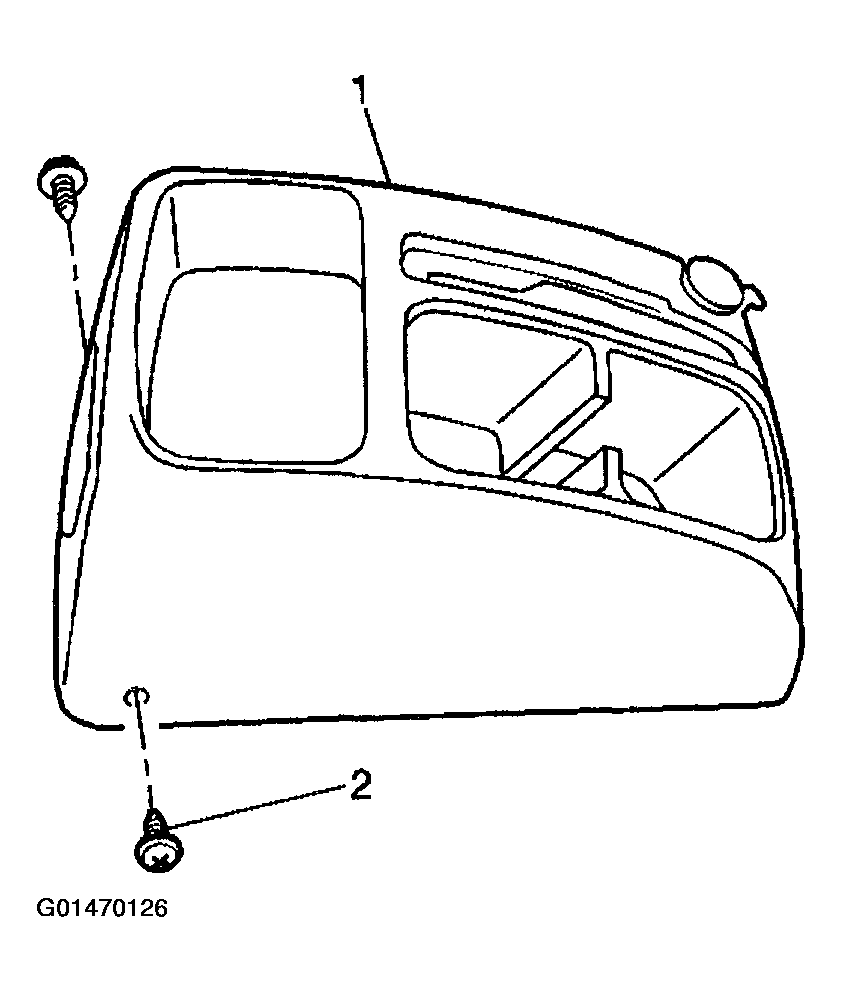

    Fig 4: Parking Brake Lever Bezel
    G01470126Courtesy of GENERAL MOTORS CORP.
