Installation Procedure

  1. Install the inside rearview mirror to the mounting base by sliding the arm into the base. Secure the inside rearview mirror arm by turning 90 degrees clockwise.
  2. Connect the reading lamp electrical connector if equipped.

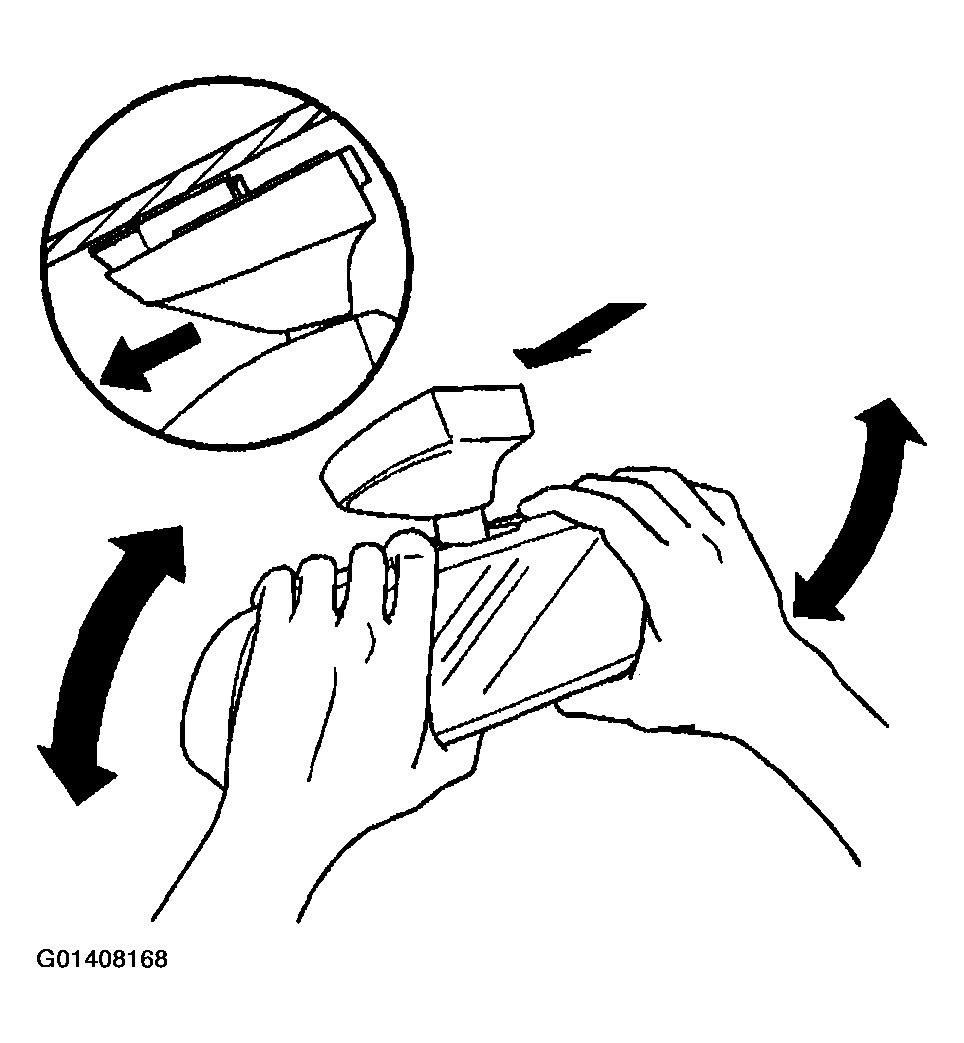

Fig 1: Installing Inside Rearview Mirror To Mounting Base
G01408168Courtesy of GENERAL MOTORS CORP.
