Removal Procedure

  1. Remove the instrument panel steering column opening trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Disconnect the rear window defogger relay electrical connector (2).
  3. Remove the following from the vehicle:
    1. The screw
    2. The rear window defogger relay (1)

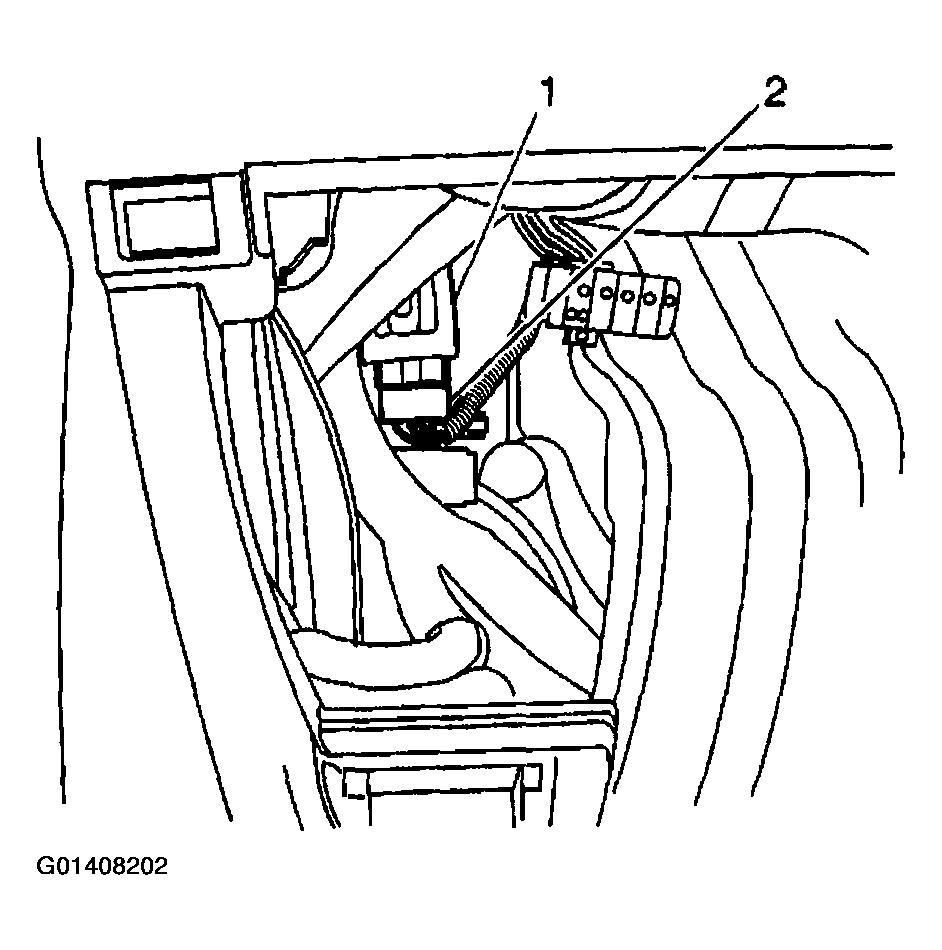

    Fig 1: Rear Window Defogger Timer/Relay Components
    G01408202Courtesy of GENERAL MOTORS CORP.
