Removal Procedure

  1. Remove the IP cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Using a taped flat bladed tool, gently pry the rear window defogger switch (1) from the instrument panel.

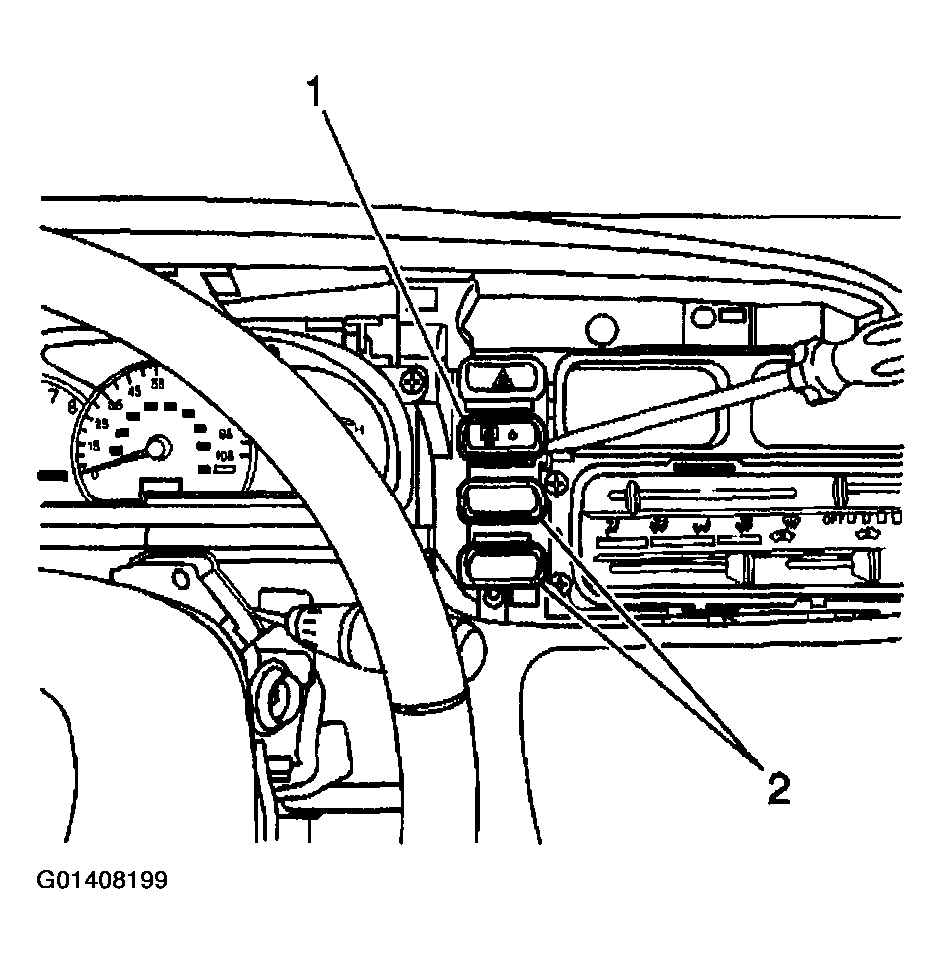

    Fig 1: Prying Rear Window Defogger Switch From Instrument Panel
    G01408199Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the rear window defogger switch electrical connector (2).
  4. Remove the switch (1) from the vehicle.

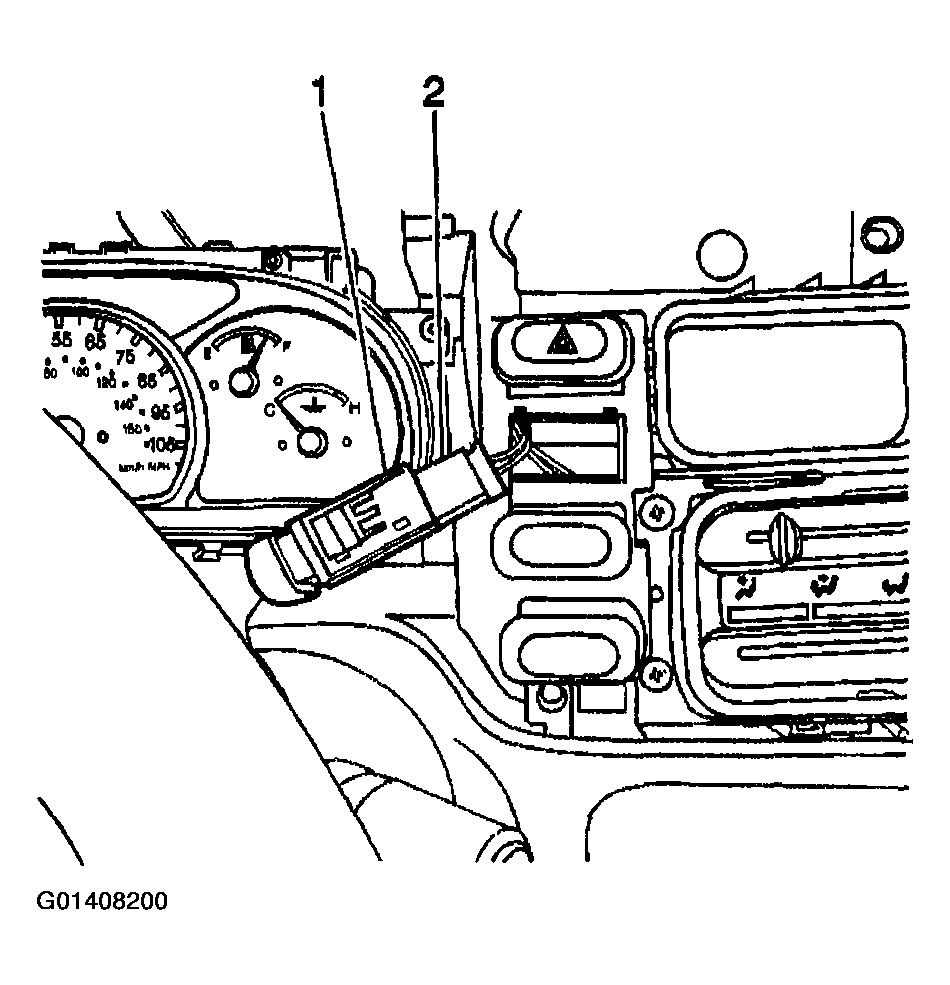

    Fig 2: Disconnecting Rear Window Defogger Switch Electrical Connector
    G01408200Courtesy of GENERAL MOTORS CORP.
