Stationary Windows Connector End Views

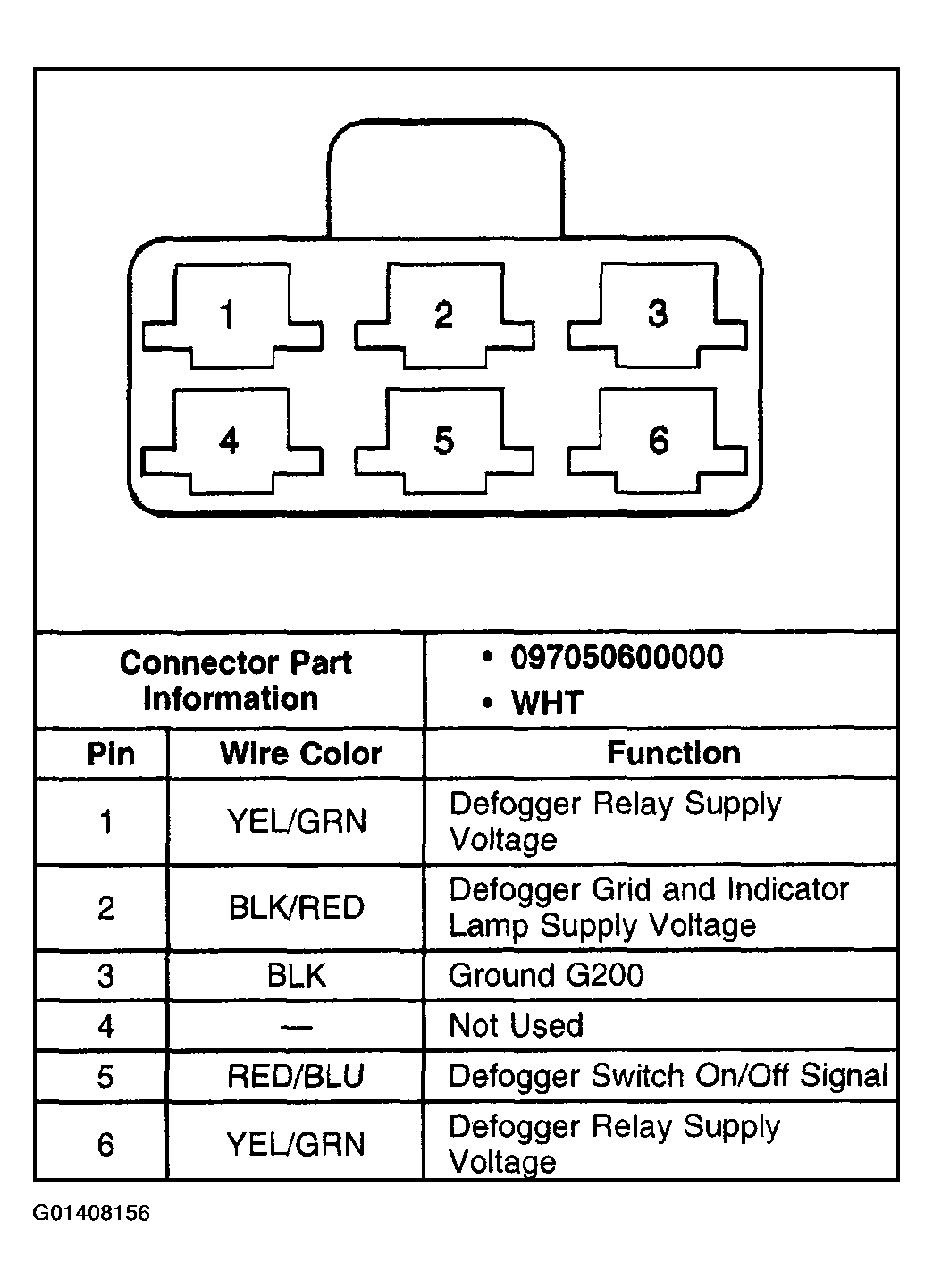

Fig 1: Rear Defogger Relay Connector End View
G01408156Courtesy of GENERAL MOTORS CORP.

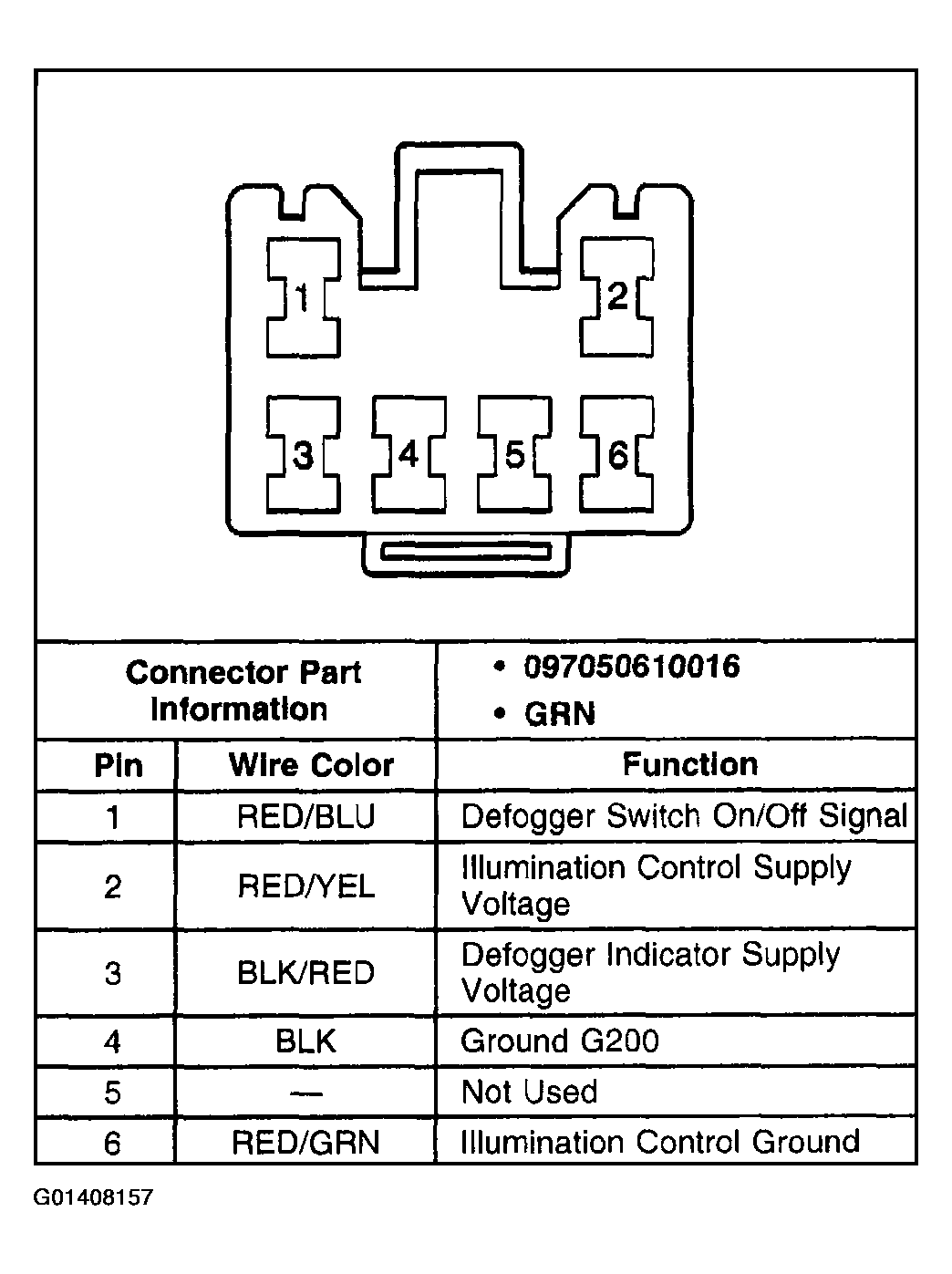

Fig 2: Rear Defogger Switch Connector End View
G01408157Courtesy of GENERAL MOTORS CORP.
