Installation Procedure

  1. Install the right front side window switch to the front side door trim panel (4). Ensure that the 4 plastic retaining tabs are fully engaged.
  2. Connect the front side window switch electrical connector.
  3. Install the door trim panel (4) to the front side door. Ensure that the plastic retainers are fully engaged.
  4. Install the screw which secures the front side door pull handle (3).
  5. Install the outside rearview mirror opening cover (1).
  6. Install the front side door inside handle (3). Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE .

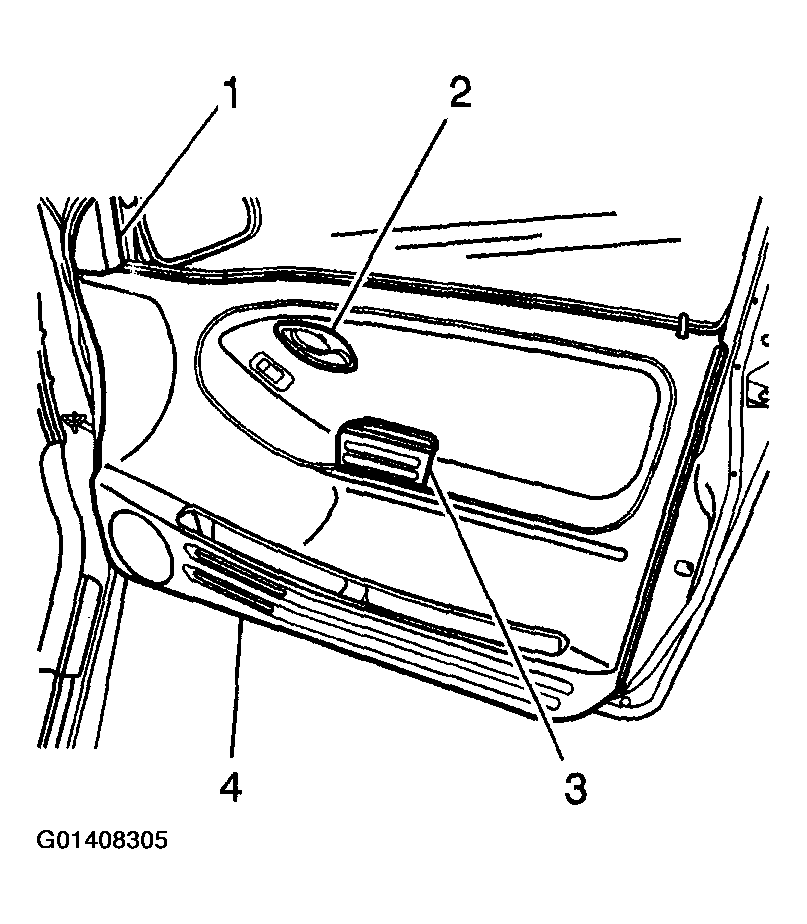

    Fig 1: Installing Front Side Window Switch To Door Trim Panel
    G01408305Courtesy of GENERAL MOTORS CORP.
