Home >> Chevrolet >> 2003 >> Tracker 2D Utility, RWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Power Accessory Switch Panel Replacement >> Removal Procedure

Removal Procedure

  1. Gently pry the left front side master window switch (1) from the front side door trim panel (4).
  2. Disconnect the window switch and the door lock electrical connectors.
  3. Remove the window switch (1) from the vehicle.

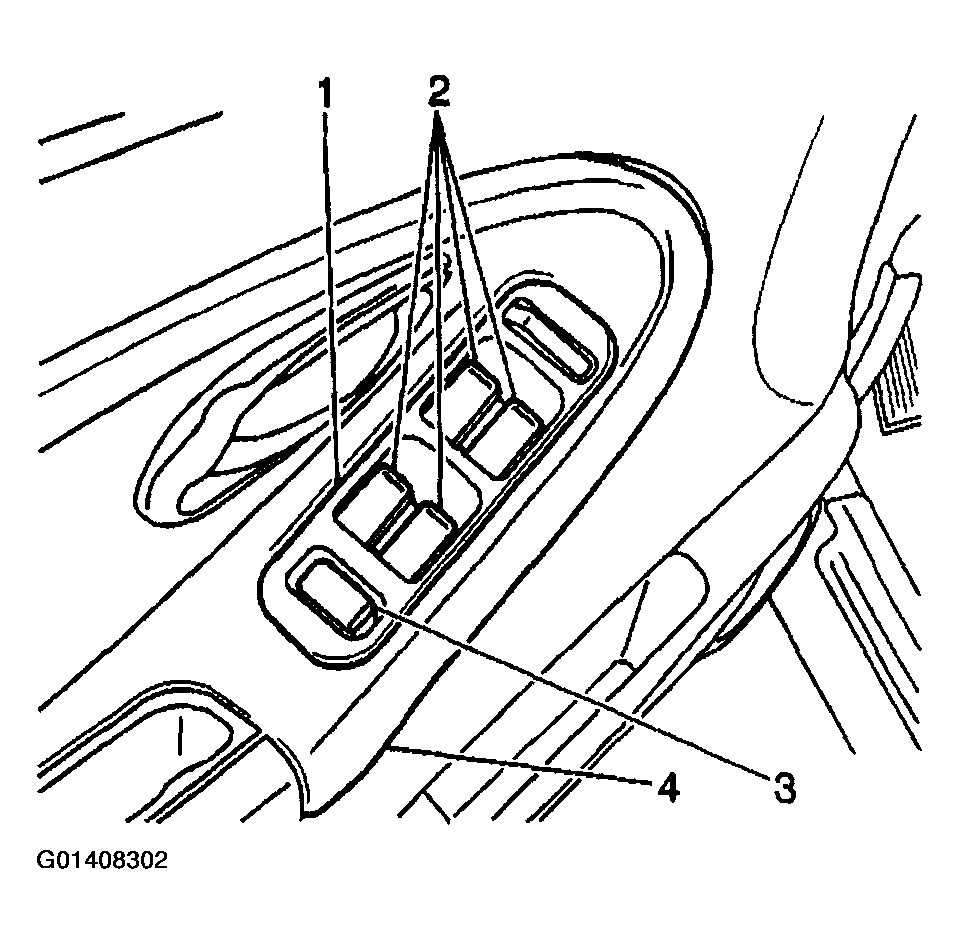

    Fig 1: Removing Left Front Side Master Window Switch From Front Side Door Trim Panel
    G01408302Courtesy of GENERAL MOTORS CORP.
