Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. If you are NOT removing the steering column, ensure the front wheels and tires are in the straight ahead position
  3. Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement   in SIR.
  4. Remove the steering shaft nut (2).

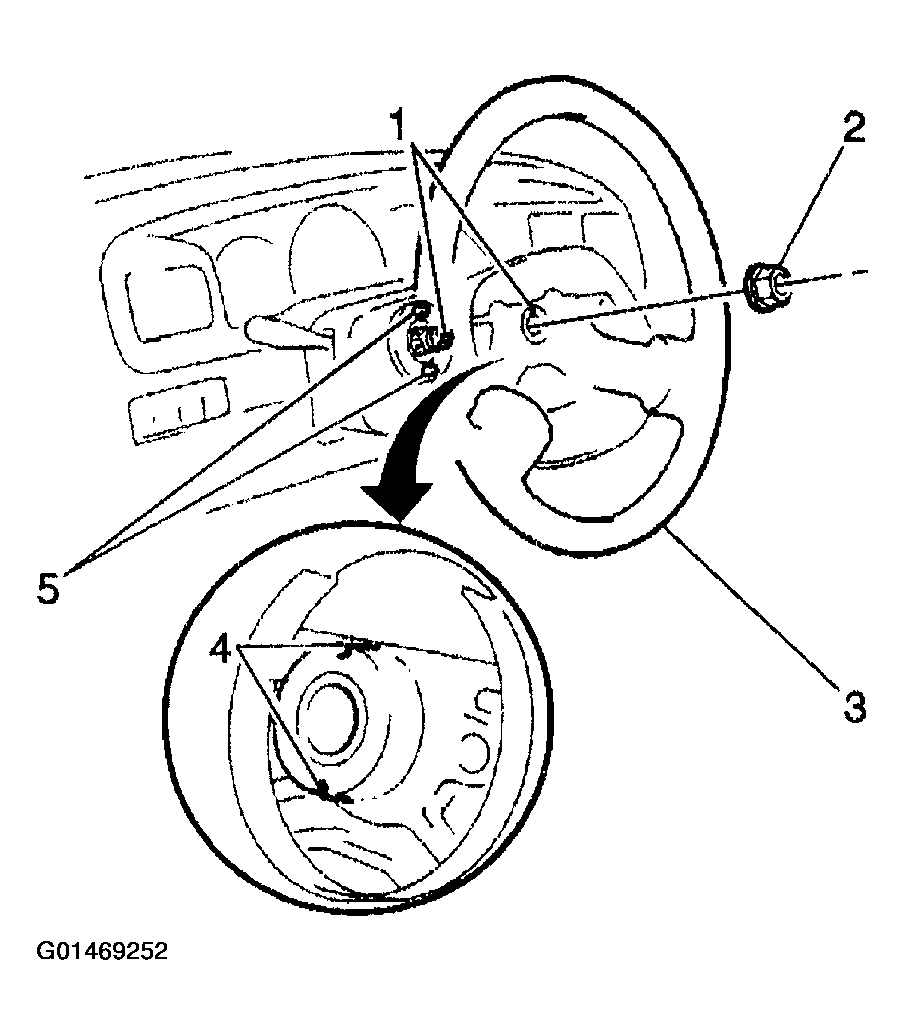

    Fig 1: Removing Steering Shaft Nut
    G01469252Courtesy of GENERAL MOTORS CORP.
  5. Use paint in order to place match marks (2) on the steering wheel and on the steering shaft. Use these marks as a guide during installation.

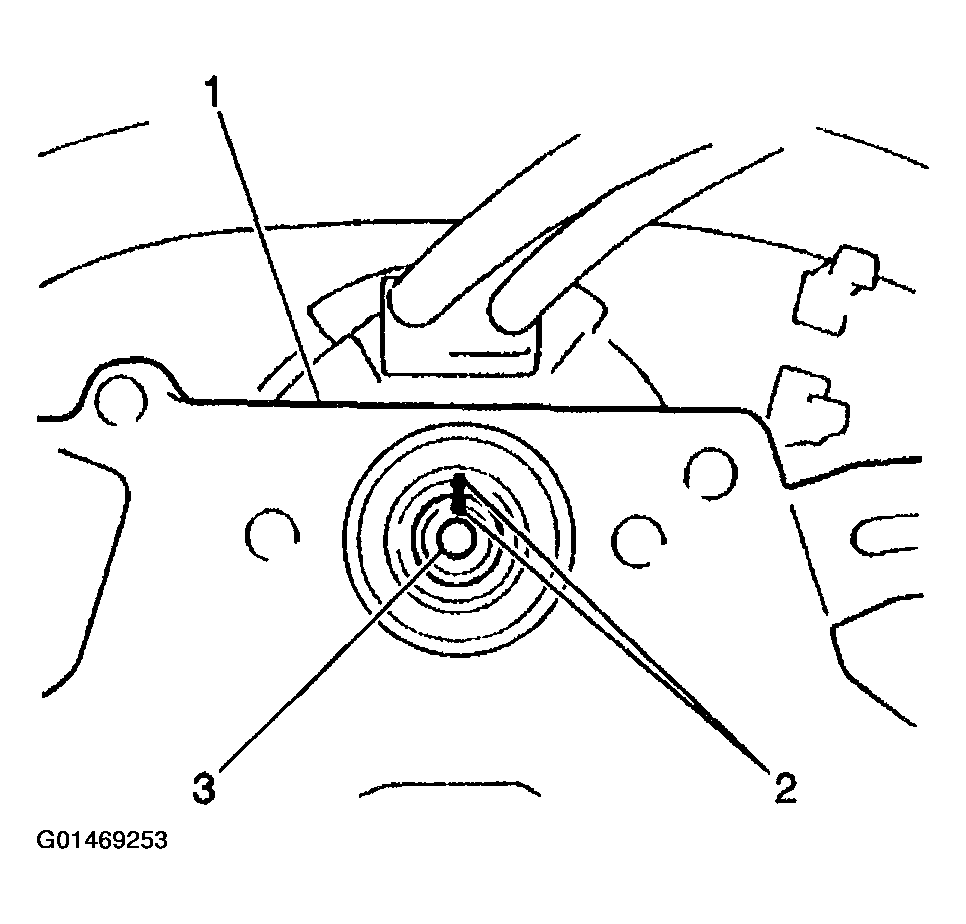

    Fig 2: Locating Match Mark On Steering Wheel And Steering Shaft
    G01469253Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not use any steering wheel puller or side screws other than those recommended as the SIR coil assembly is easily damaged if the correct tools are not used.
  6. Use J 1859-A  in order to remove the steering wheel (1).

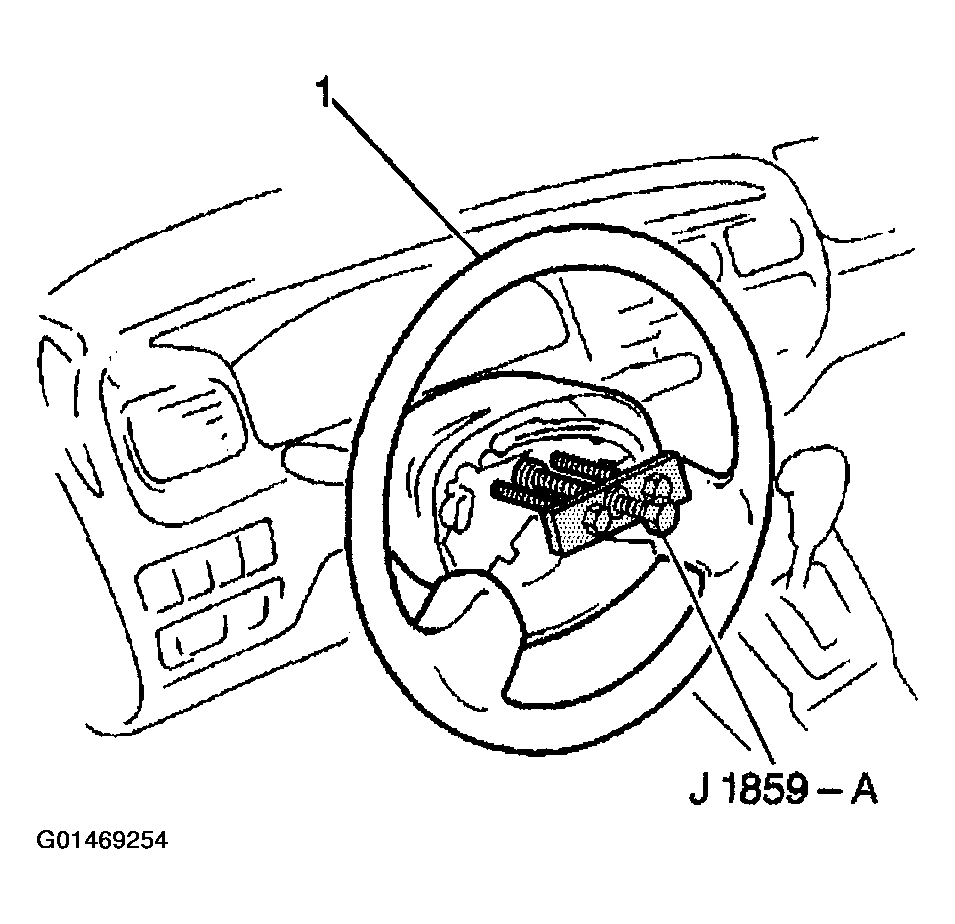

    Fig 3: Removing Steering Wheel
    G01469254Courtesy of GENERAL MOTORS CORP.
