Installation Procedure

Ensure the steering wheel and the front tires and wheels have not moved since the removal of the lower steering shaft.
If replacing the lower steering shaft, place match marks on the new lower steering shaft in the same positions as on the old lower steering shaft.
Align the match marks (4, 5) with the opening (3) in the lower steering shaft universal joint (2). Install lower steering shaft to the pinion shaft.

Fig 1: Aligning Match Marks On Pinion Shaft And On Steering Gear Housing
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Secure the lower steering shaft to the pinion shaft with the lower bolt (4).
Tighten

Tighten the bolt to 25 N.m (18 lb ft).

Fig 2: Installing And Tightening Lower Bolt Of Lower Steering Shaft
Courtesy of GENERAL MOTORS CORP.
Align the match marks on the following components:
- The lower steering shaft
- The steering shaft coupling (1)
- The steering column shaft (3)

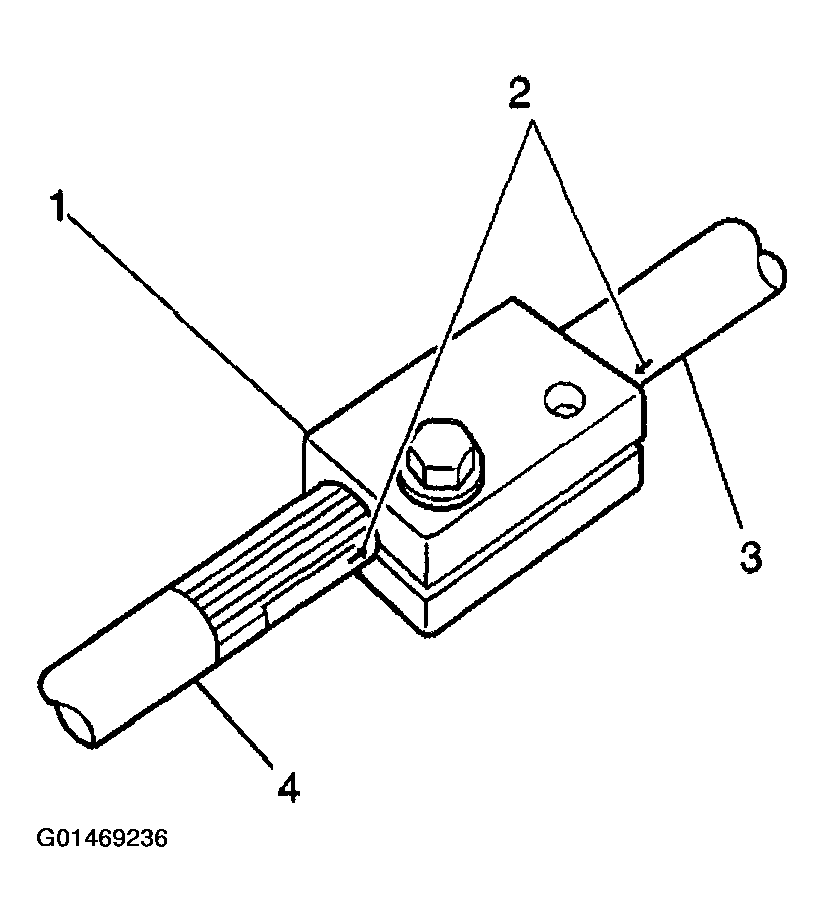

Fig 3: Aligning Match Marks On Steering Shaft Coupling And Steering Column Shaft
Courtesy of GENERAL MOTORS CORP.
Loosen the bolt (3) on the steering column side of the steering shaft coupling and move the steering shaft coupling down over the lower steering shaft.
Secure the steering shaft coupling to the lower steering shaft with the bolt (1). Secure the steering shaft coupling to the steering column shaft with the bolt (3).
Tighten

Tighten the 2 steering shaft coupling bolts to 25 N.m (18 lb ft).

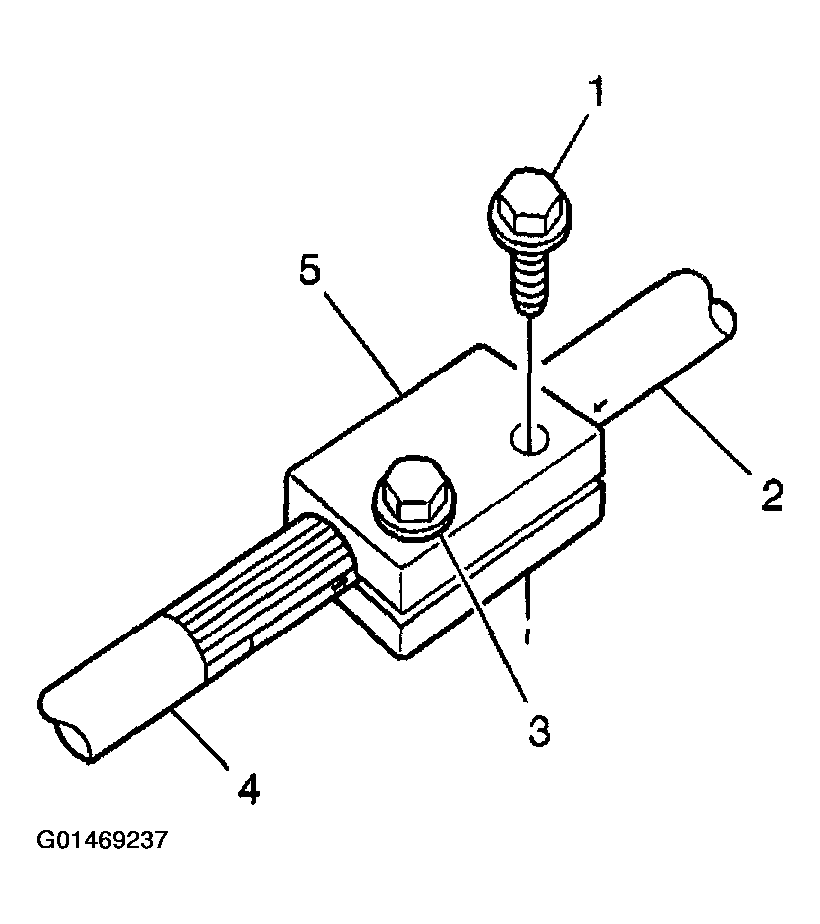

Fig 4: Installing Steering Shaft Coupling Bolts
Courtesy of GENERAL MOTORS CORP.
