Removal Procedure

  1. Remove the left front foot rest cover (2) in order to gain access to the front floor foot rest mounting bolts (3).
  2. Remove the following components from the vehicle:
    1. 2.1. The 2 mounting bolts (3)
    2. 2.2. The front floor foot rest (1)

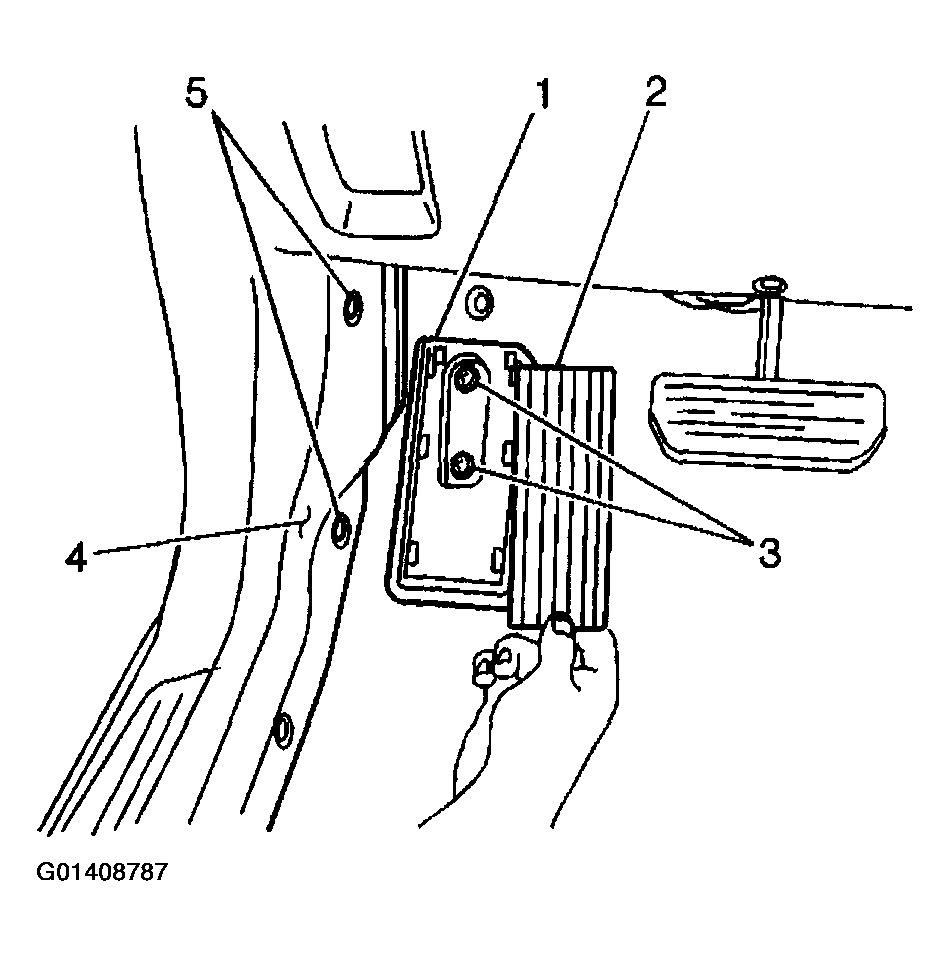

    Fig 1: Front Floor Foot Rest
    G01408787Courtesy of GENERAL MOTORS CORP.
