Keyless Entry Schematics (Lock and Unlock Relays, Remote Control Door Lock Receiver): Notes

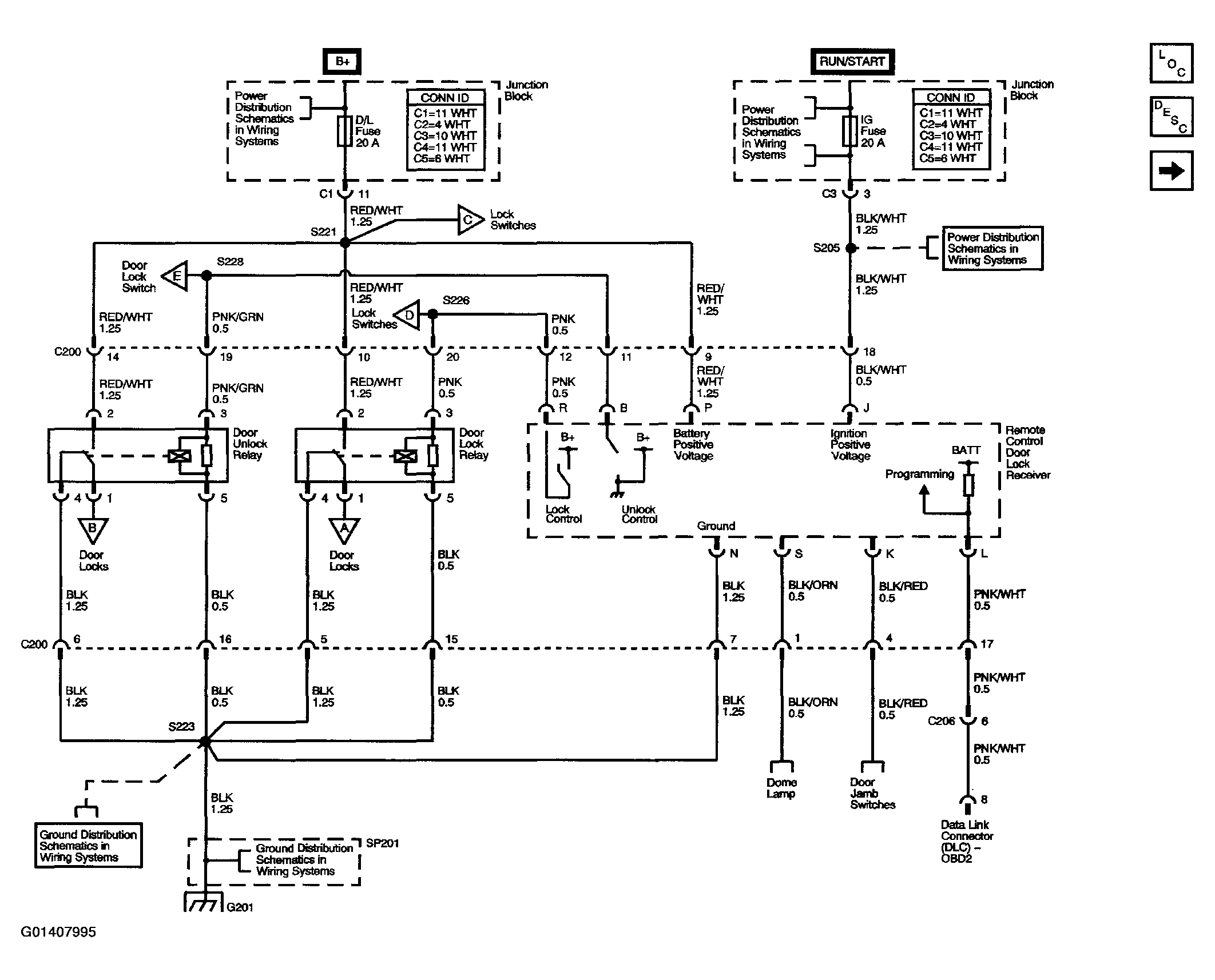

Fig 1: Keyless Entry Schematics (Lock & Unlock Relays, Remote Control Door Lock Receiver)
G01407995Courtesy of GENERAL MOTORS CORP.
