Installation Procedure

  1. Install the new battery (2) with the positive (+) side facing up.
  2. Inspect that the seal (4) is properly positioned.
  3. Snap the two halves together.

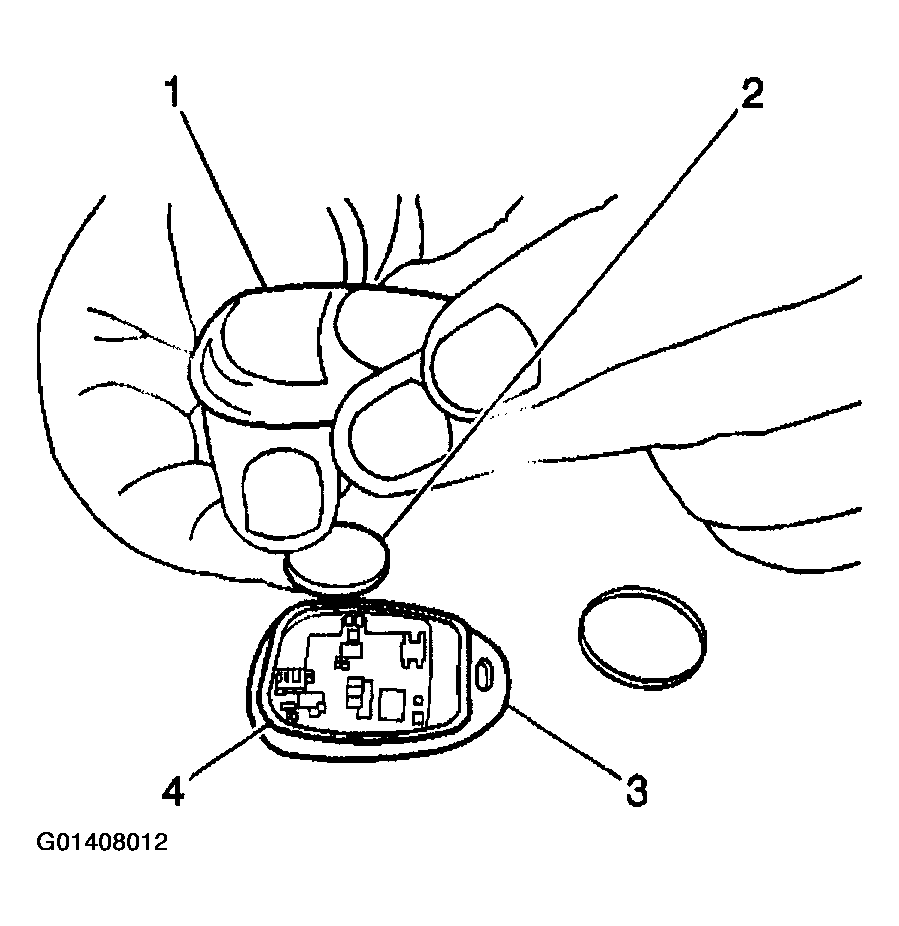

    Fig 1: New Battery
    G01408012Courtesy of GENERAL MOTORS CORP.
  4. Verify that the remote control door lock receiver transmitter (3) is functioning correctly. If not, refer to TRANSMITTER PROGRAMMING .
    Fig 2: Identifying Lock & Unlock
    G01408013Courtesy of GENERAL MOTORS CORP.
