Removal Procedure

Remove the nut (1) which secures the remote control door lock receiver bracket (2).
Reposition the receiver bracket (2) in order to access the remote control door lock receiver (6) mounting screws.

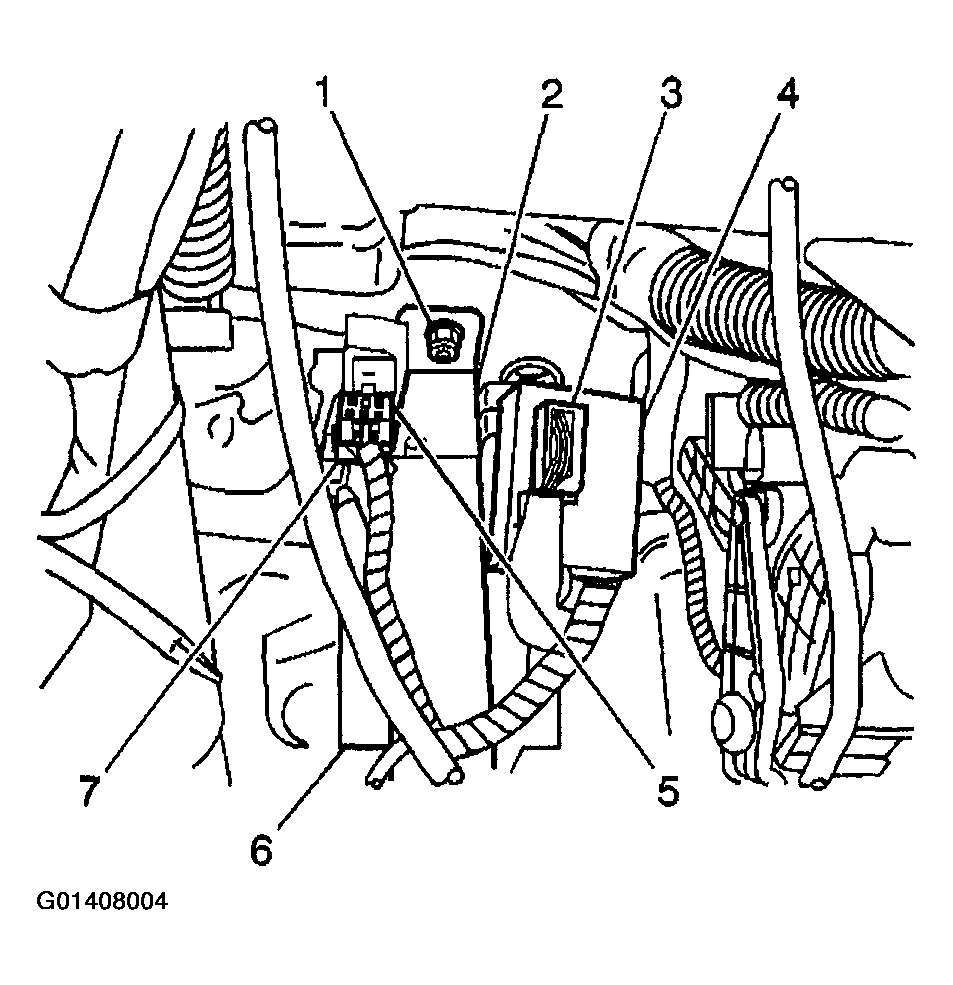

Fig 1: Removing Nut Which Secures Remote Control Door Lock Receiver Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the 2 retainers (2, 4) which secure the remote control door lock receiver electrical connector (3).
Disconnect the receiver electrical connector (3).

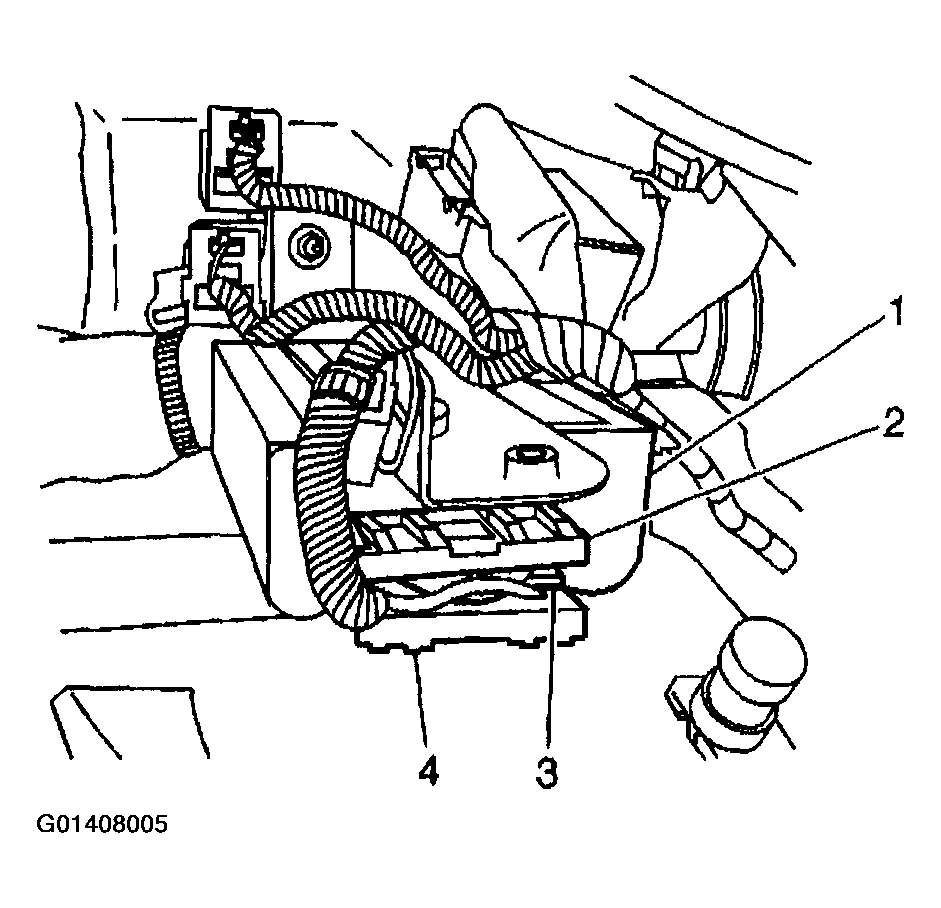

Fig 2: Disconnecting Receiver Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the following components from the remote control door lock receiver bracket (3):
- The two screws (1)
- The remote control door lock receiver (2)

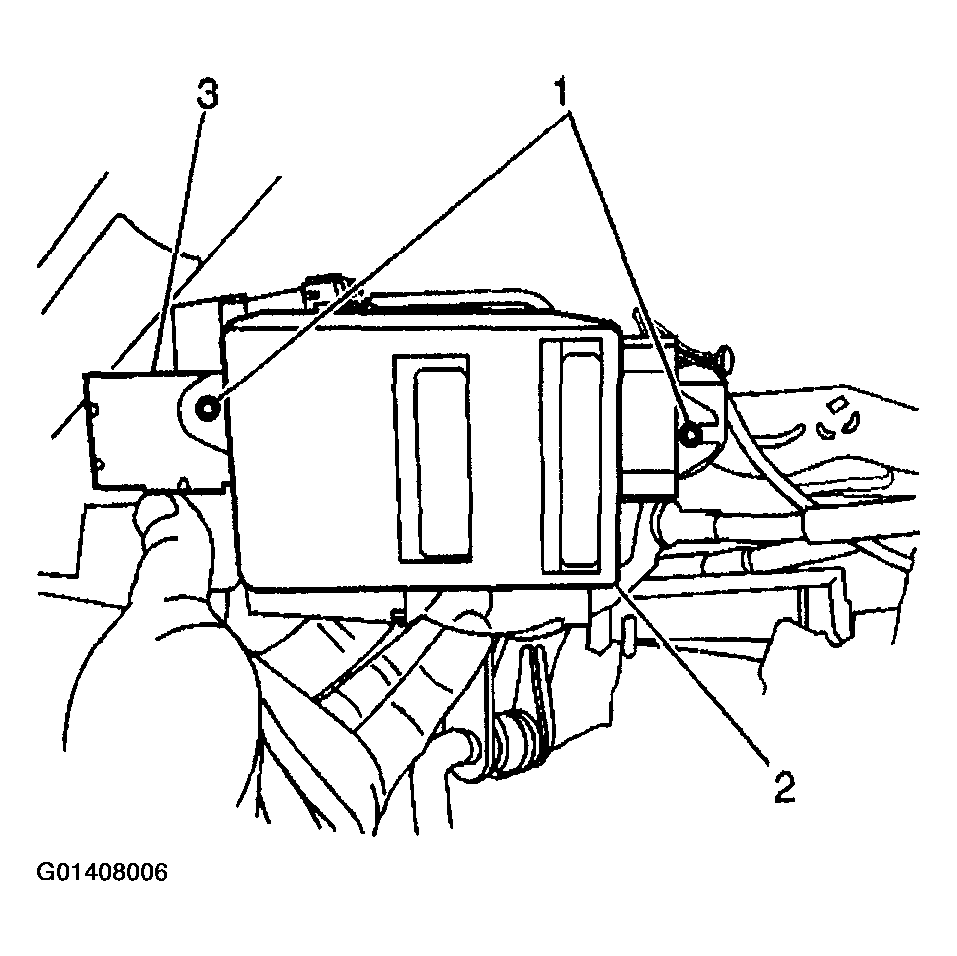

Fig 3: Two Screws & Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
