Remote Control Door Lock Receiver

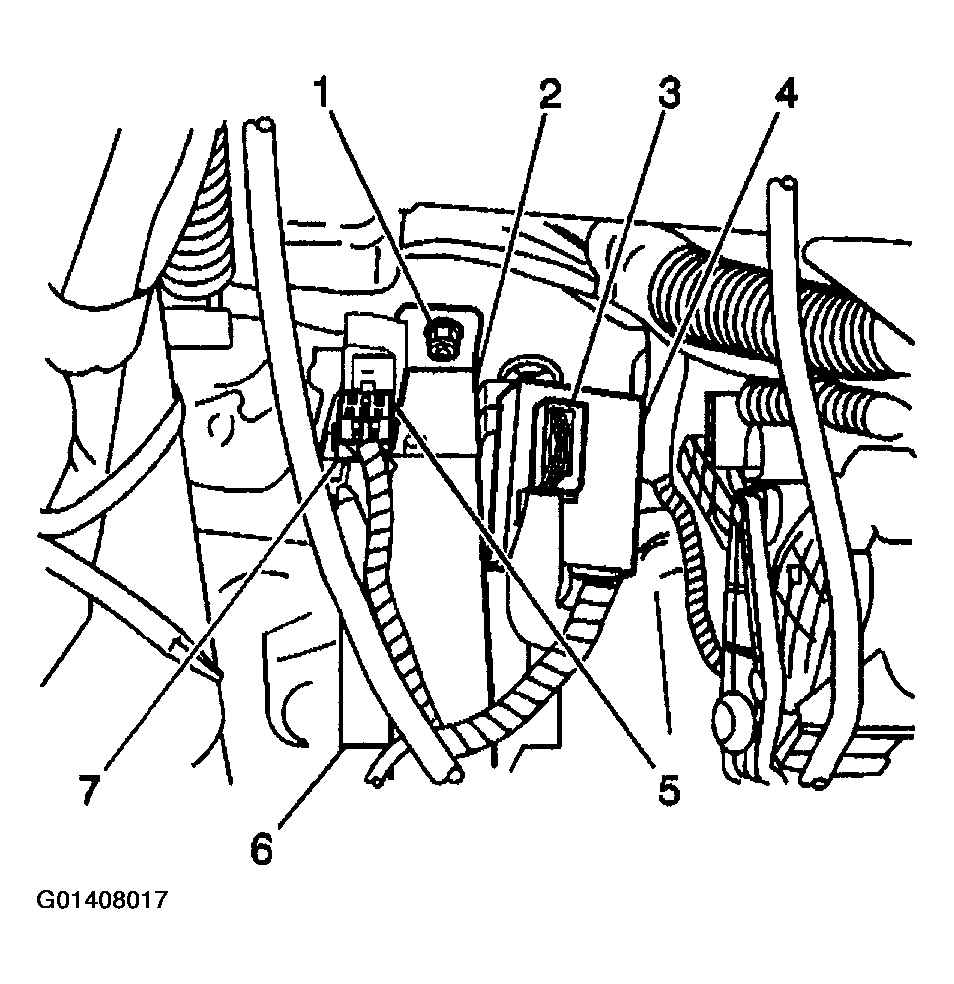

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

The remote control door lock receiver (6) is located under the instrument panel to the right of the steering column. The door lock control module is integrated into the receiver. The receiver directly controls the functions of the keyless entry system. The receiver is able to receive signals from up to four transmitters, and must be programmed to accept signals from any transmitters that are to be added or replaced.
